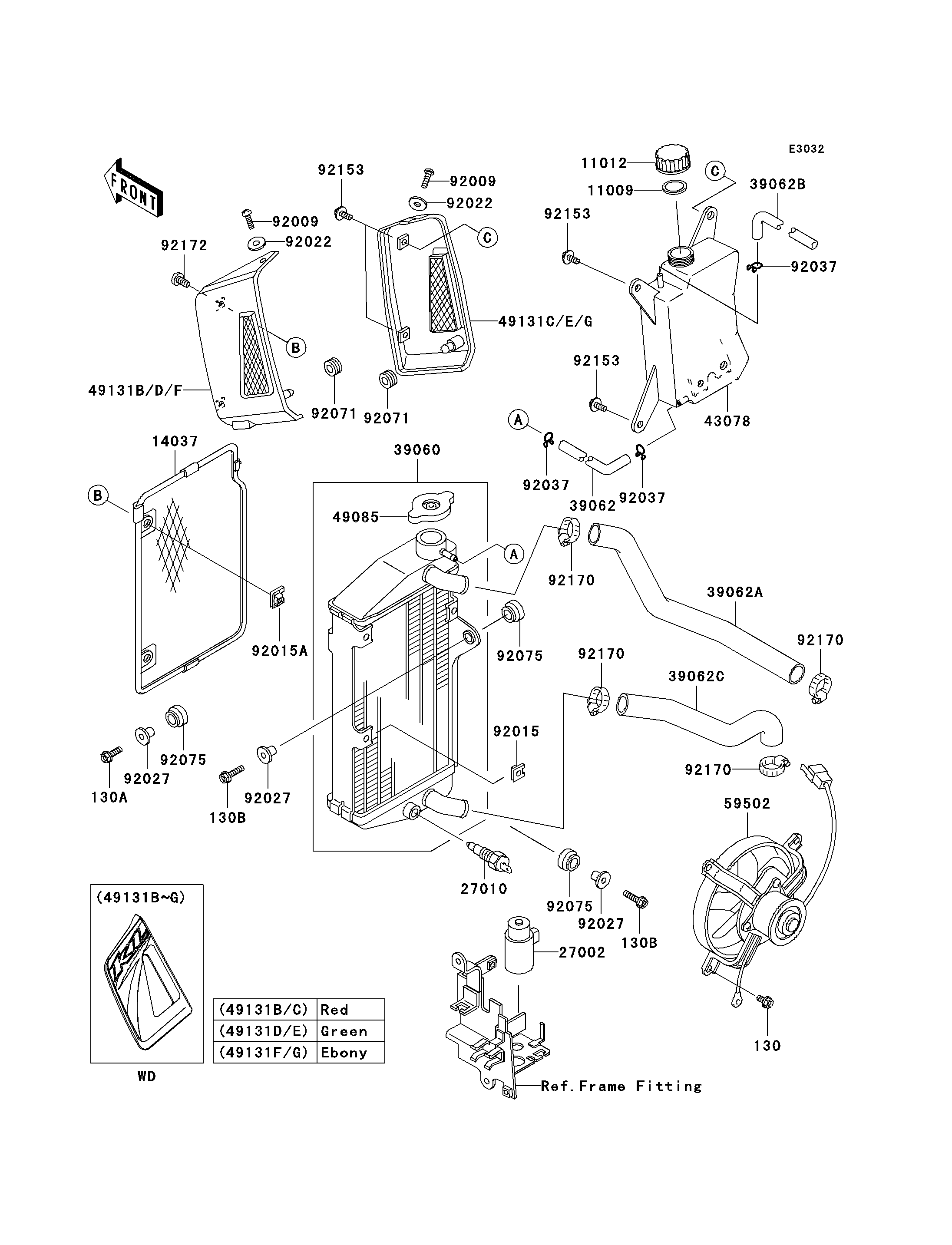

Parts Diagrams |
130
130A
130B
130B
11009
11012
14037
27002
27010
39060
39062
39062A
39062B
39062C
43078
49085
49131B
49131C
49131D
49131E
59502
92009
92009
92015
92015A
92022
92022
92027
92027
92027
92037
92037
92037
92071
92071
92075
92075
92075
92153
92153
92153
92170
92170
92170
92170
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X12 | 130 | 130L0612 | 3 | ||
BOLT-FLANGED,6X20 | 130A | 130L0620 | 1 | ||
BOLT-FLANGED,6X25 | 130B | 130L0625 | 2 | ||
GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
CAP | 11012 | 11012-1084 | 1 | ||
SCREEN | 14037 | 14037-1208 | 1 | ||
RELAY-ASSY | 27002 | 27002-1051 | 1 | ||
SWITCH,FAN | 27010 | 27010-1167 | 1 | ||
RADIATOR | 39060 | 39060-1074 | 1 | ||
HOSE-COOLING | 39062 | 39062-1125 | 1 | ||
HOSE-COOLING,HEAD-RADIATOR | 39062A | 39062-1217 | 1 | ||
HOSE-COOLING,RESERVOIR | 39062B | 39062-1220 | 1 | ||
HOSE-COOLING,RADIATOR-PUMP | 39062C | 39062-1243 | 1 | ||
RESERVOIR | 43078 | 43078-1083 | 1 | ||
CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
SHROUD-ENGINE,LH,A.RED | 49131B | 49131-5053-260 | 1 | ||
SHROUD-ENGINE,RH,A.RED | 49131C | 49131-5054-260 | 1 | ||
SHROUD-ENGINE,LH,L.GREEN | 49131D | 49131-5055-290 | 1 | ||
SHROUD-ENGINE,RH,L.GREEN | 49131E | 49131-5056-290 | 1 | ||
FAN-ASSY | 59502 | 59502-1082 | 1 | ||
SCREW,5X14 | 92009 | 92009-1653 | 2 | ||
NUT | 92015 | 92015-1487 | 3 | ||
NUT,6MM | 92015A | 92015-1758 | 2 | ||
WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 2 | ||
COLLAR,L=14.1 | 92027 | 92027-1920 | 3 | ||
CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
GROMMET | 92071 | 92071-056 | 2 | ||
DAMPER | 92075 | 92075-1352 | 3 | ||
BOLT,6X16 | 92153 | 92153-0863 | 4 | ||
CLAMP,COOLING HOSE | 92170 | 92170-1033 | 4 | ||
SCREW,6X12 | 92172 | 92172-0219 | 2 |
BOLT-FLANGED,6X12 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X20 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X25 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,RESERVOIR TANK CAP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREEN | |
REF # | 14037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELAY-ASSY | |
REF # | 27002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,FAN | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RADIATOR | |
REF # | 39060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING | |
REF # | 39062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,HEAD-RADIATOR | |
REF # | 39062A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RESERVOIR | |
REF # | 39062B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RADIATOR-PUMP | |
REF # | 39062C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RESERVOIR | |
REF # | 43078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-PRESSURE | |
REF # | 49085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHROUD-ENGINE,LH,A.RED | |
REF # | 49131B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHROUD-ENGINE,RH,A.RED | |
REF # | 49131C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHROUD-ENGINE,LH,L.GREEN | |
REF # | 49131D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHROUD-ENGINE,RH,L.GREEN | |
REF # | 49131E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FAN-ASSY | |
REF # | 59502 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,5X14 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,NYLON,5.3X11.5X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=14.1 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,COOLING HOSE | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,6X12 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
