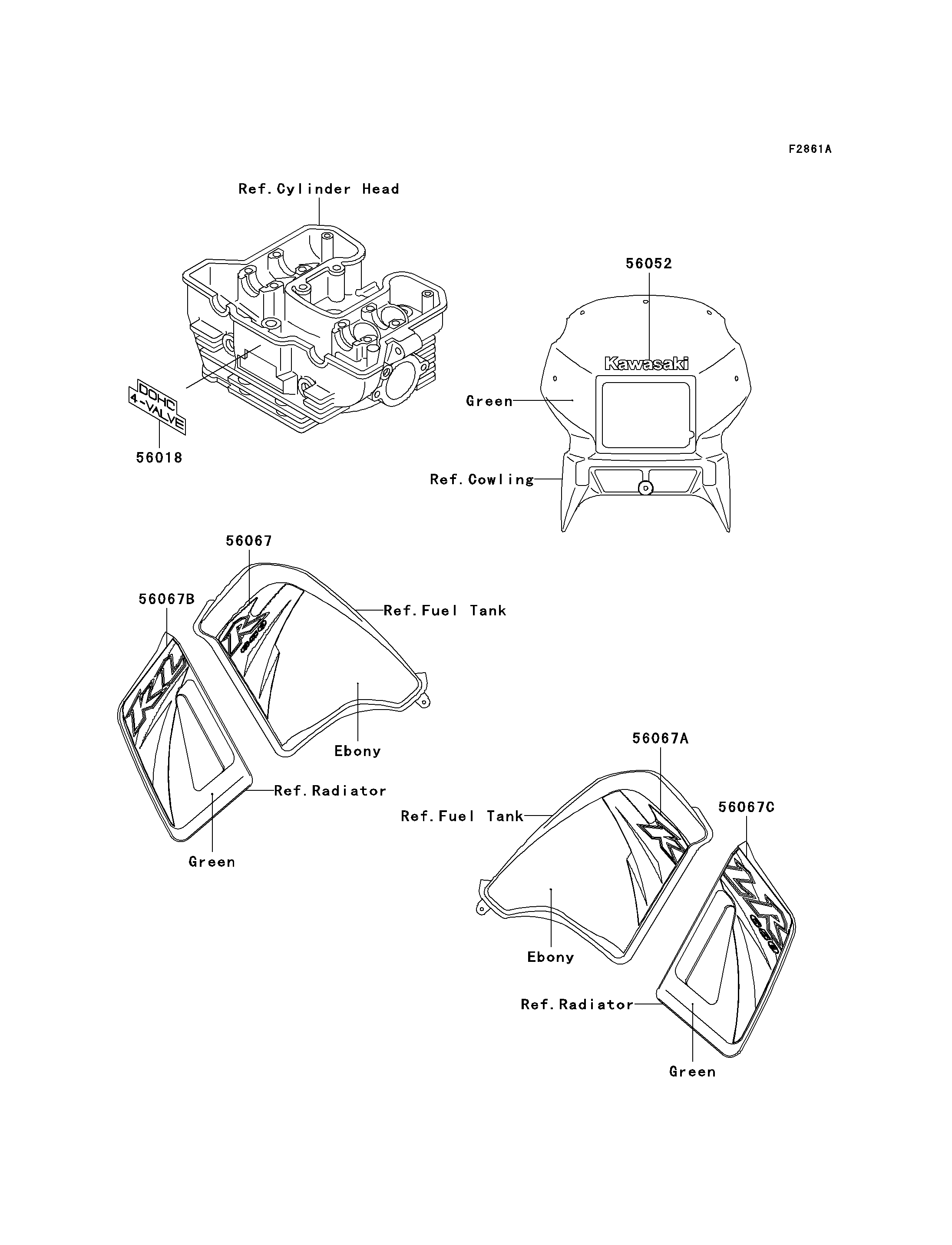

56018
56052
56067
56067A
56067B
56067C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,CYLINDER HEAD 56018 56018-1483 1
MARK,HEAD LAMP COVER,KAWASAKI 56052 56052-1531 1
PATTERN,FUEL TANK,LH 56067 56067-0325 1
PATTERN,FUEL TANK,RH 56067A 56067-0326 1
PATTERN,SHROUD,LH 56067B 56067-0327 1
PATTERN,SHROUD,RH 56067C 56067-0328 1
