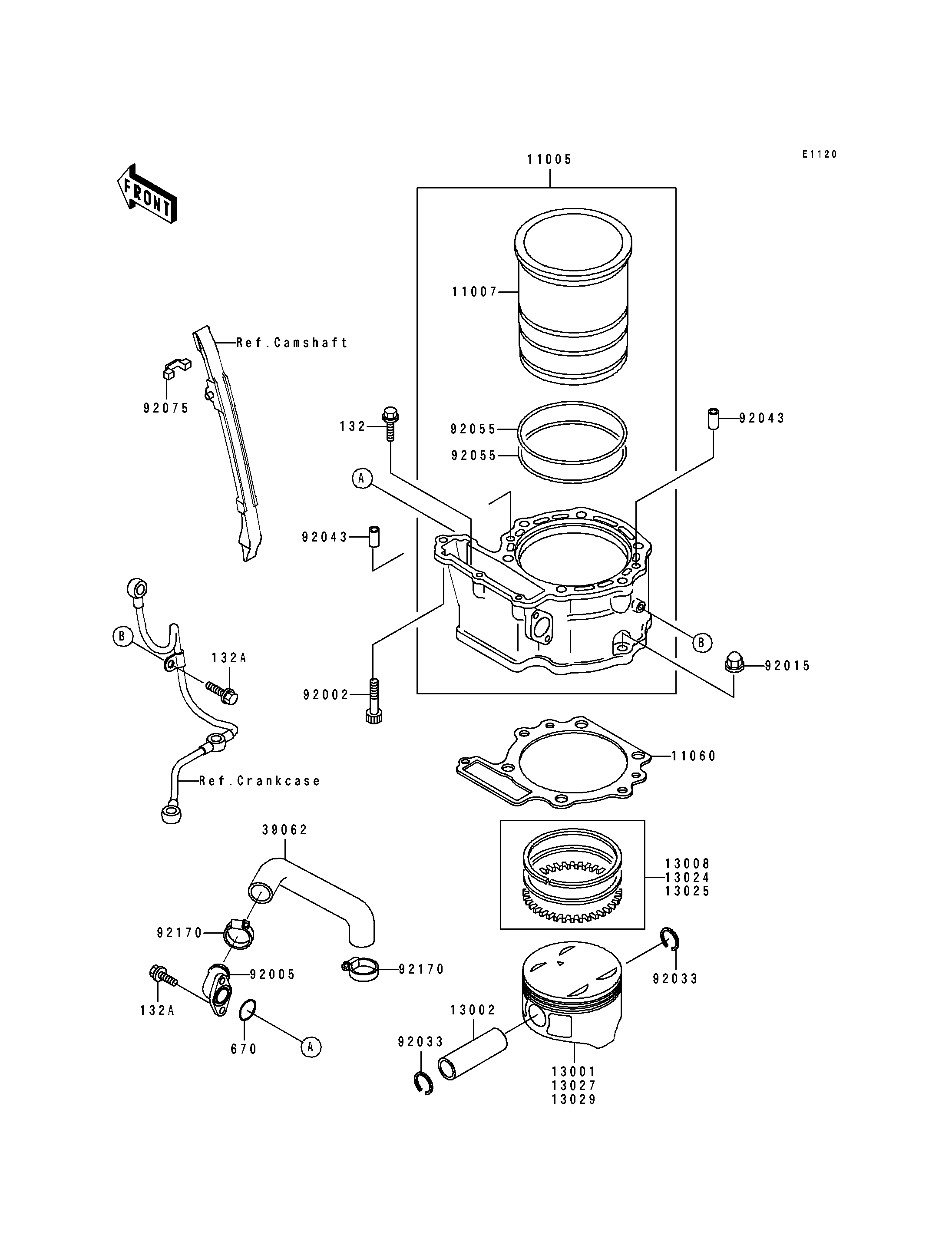

1990 Tengai - Cylinder/Piston

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-1588 1
LINER-CYLINDER 11007 11007-1093 1
GASKET,CYLINDER BASE 11060 11060-1110 1
PISTON-ENGINE,STD 13001 13001-1284 1
PIN-PISTON 13002 13002-1069 1
RING-SET-PISTON,STD 13008 13008-1081 1
RING-SET-PISTON LL,O/S 1.00 13024 13024-1071 1
RING-SET-PISTON L,O/S 0.50 13025 13025-1078 1
PISTON-ENGINE LL,O/S 1.00 13027 13027-1153 1
PISTON-ENGINE L,O/S 0.50 13029 13029-1176 1
HOSE-COOLING,PUMP-CYLINDER 39062 39062-1216 1
BOLT,SOCKET,8X35 92002 92002-1409 1
FITTING 92005 92005-1122 1
NUT,CAP,8MM,BLACK 92015 92015-1174 4
RING-SNAP 92033 92033-1226 2
PIN,6.2X8X14 92043 92043-1263 2
RING-O 92055 92055-1368 2
DAMPER 92075 92075-1968 1
CLAMP,COOLING HOSE 92170 92170-1033 2
BOLT-FLANGED-SMALL 132 132G0625 1
BOLT-FLANGED-SMALL 132A 132J0612 3
O RING,18MM 670 670B2018 1
