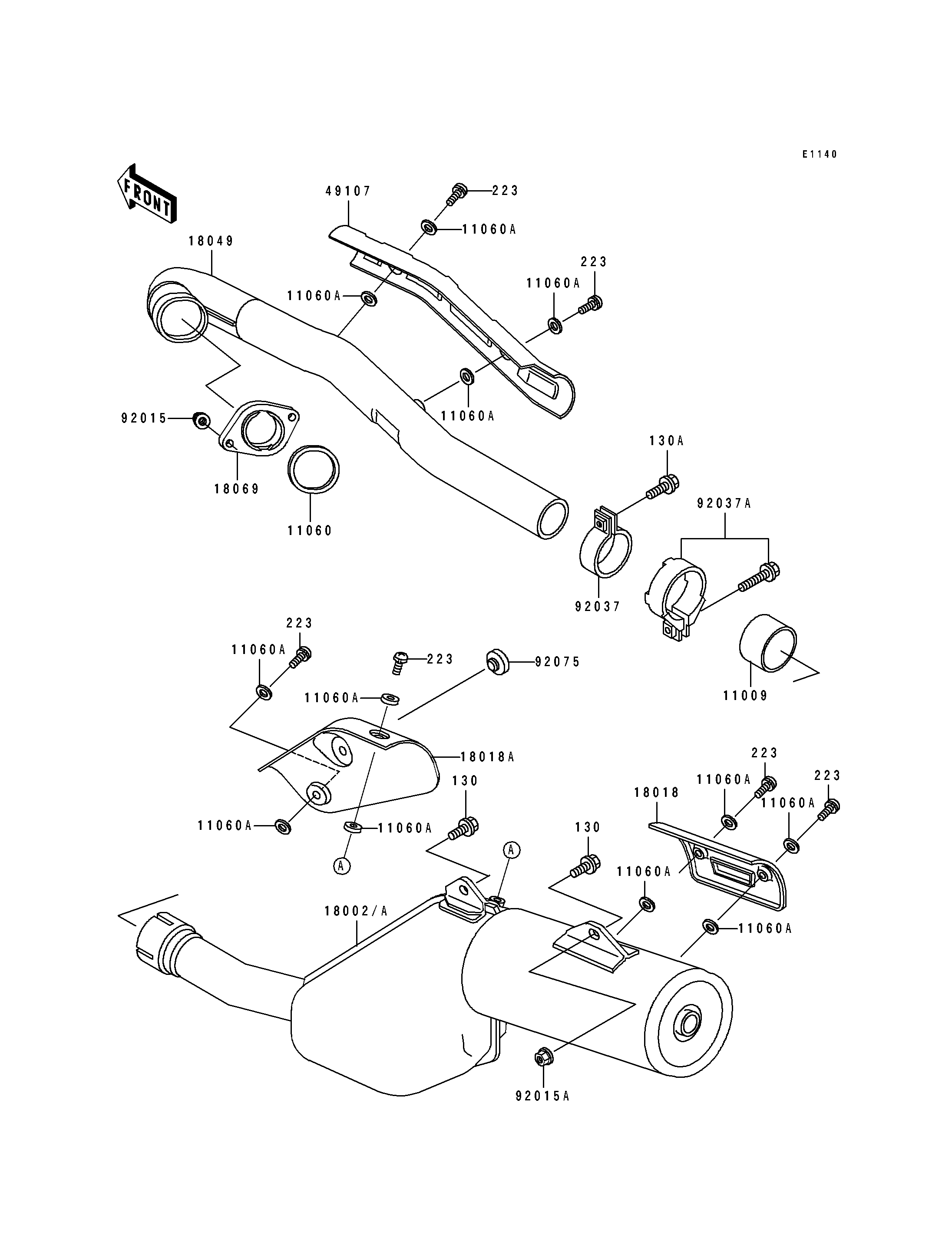

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1666 1
GASKET,EXHAUST PIPE HOLDER 11060 11060-1108 1
GASKET,6.2X11.5X1.5 11060A 11060-1109 12
BODY-COMP-MUFFLER 18002 18002-1886 1 CN
BODY-COMP-MUFFLER 18002A 18002-1887 1 CAUS
PLATE-HEAT GUARD 18018 18018-1053 1
PLATE-HEAT GUARD 18018A 18018-1082 1
PIPE-EXHAUST 18049 18049-1460 1
HOLDER-EXHAUST PIPE 18069 18069-1063 1
COVER-EXHAUST PIPE,FR 49107 49107-1073 1
NUT,CAP,8MM,BLACK 92015 92015-1174 2
NUT,8MM 92015A 92015-1402 1
CLAMP,43MM 92037 92037-1888 1
CLAMP 92037A 92037-1910 1
DAMPER 92075 92075-005 1
BOLT-FLANGED,8X16,BLACK 130 130J0816 2
BOLT-FLANGED,8X20 130A 130J0820 1
SCREW-PAN-WS-CROS 223 223C0610 6
