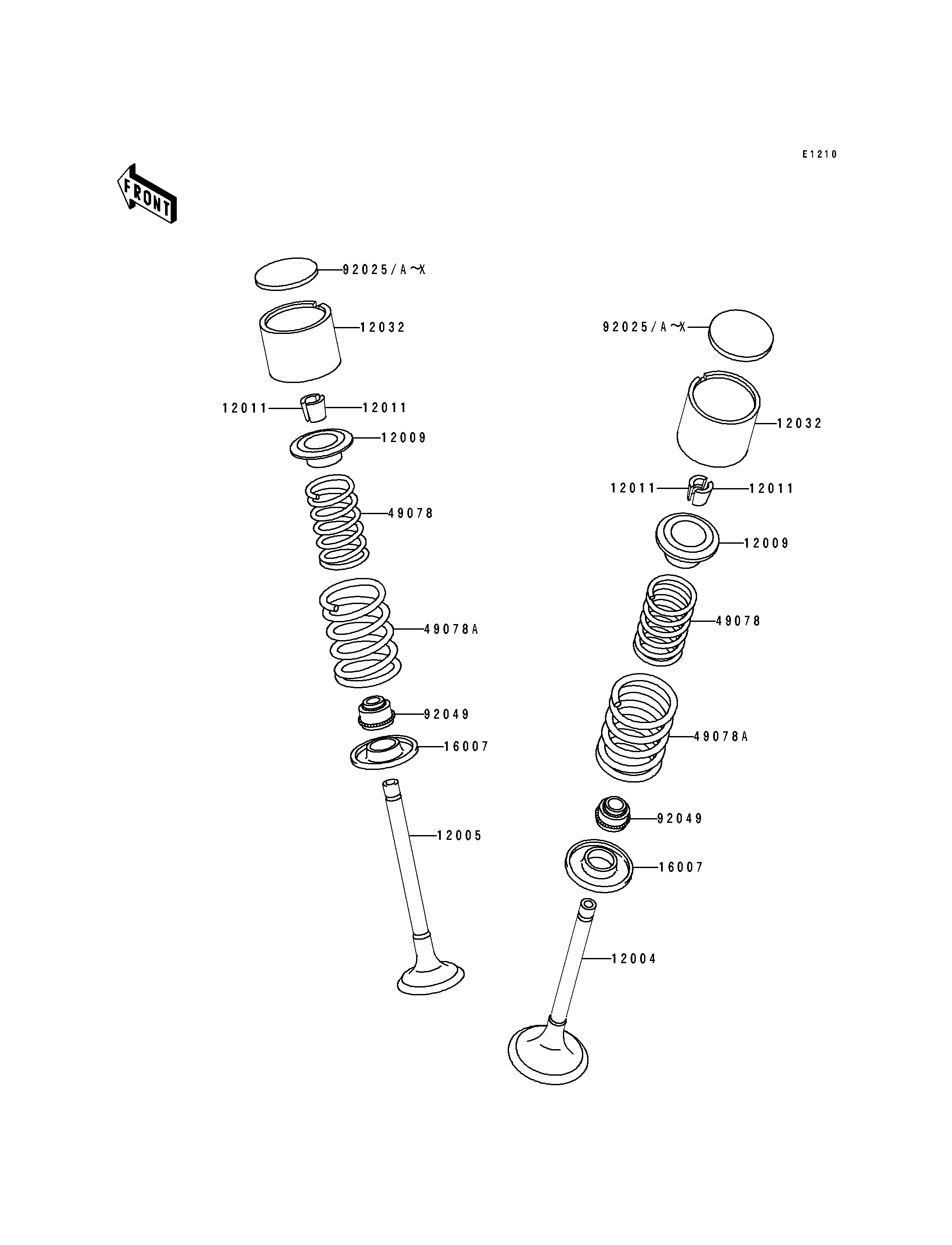

1990 Tengai - Valve

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-1087 2
VALVE-EXHAUST 12005 12005-1085 2
RETAINER-VALVE SPRING 12009 12009-005 4
COLLET,RETAINER 12011 12011-004 8
TAPPET 12032 12032-1002 4
SEAT-SPRING,VALVE 16007 16007-1024 4
SPRING-ENGINE VALVE,INNER 49078 49078-1065 4
SPRING-ENGINE VALVE,OUTER 49078A 49078-1066 4
SHIM,T=2.00 92025 12037-001 AR
SHIM,T=2.05 92025A 12037-002 AR
SHIM,T=2.10 92025B 12037-003 AR
SHIM,T=2.15 92025C 12037-004 AR
SHIM,T=2.20 92025D 12037-005 AR
SHIM,T=2.25 92025E 12037-006 AR
SHIM,T=2.30 92025F 12037-007 AR
SHIM,T=2.35 92025G 12037-008 AR
SHIM,T=2.40 92025H 12037-009 AR
SHIM,T=2.45 92025I 12037-010 AR
SHIM,T=2.50 92025J 12037-011 AR
SHIM,T=2.55 92025K 12037-012 AR
SHIM,T=2.60 92025L 12037-013 AR
SHIM,T=2.65 92025M 12037-014 AR
SHIM,T=2.70 92025N 12037-015 AR
SHIM,T=2.75 92025O 12037-016 AR
SHIM,T=2.80 92025P 12037-017 AR
SHIM,T=2.85 92025Q 12037-018 AR
SHIM,T=2.90 92025R 12037-019 AR
SHIM,T=2.95 92025S 12037-020 AR
SHIM,T=3.00 92025T 12037-021 AR
SHIM,T=3.05 92025U 12037-022 AR
SHIM,T=3.10 92025V 12037-023 AR
SHIM,T=3.15 92025W 12037-024 AR
SHIM,T=3.20 92025X 12037-025 AR
SEAL-OIL,RV37129.5 92049 92049-016 4
