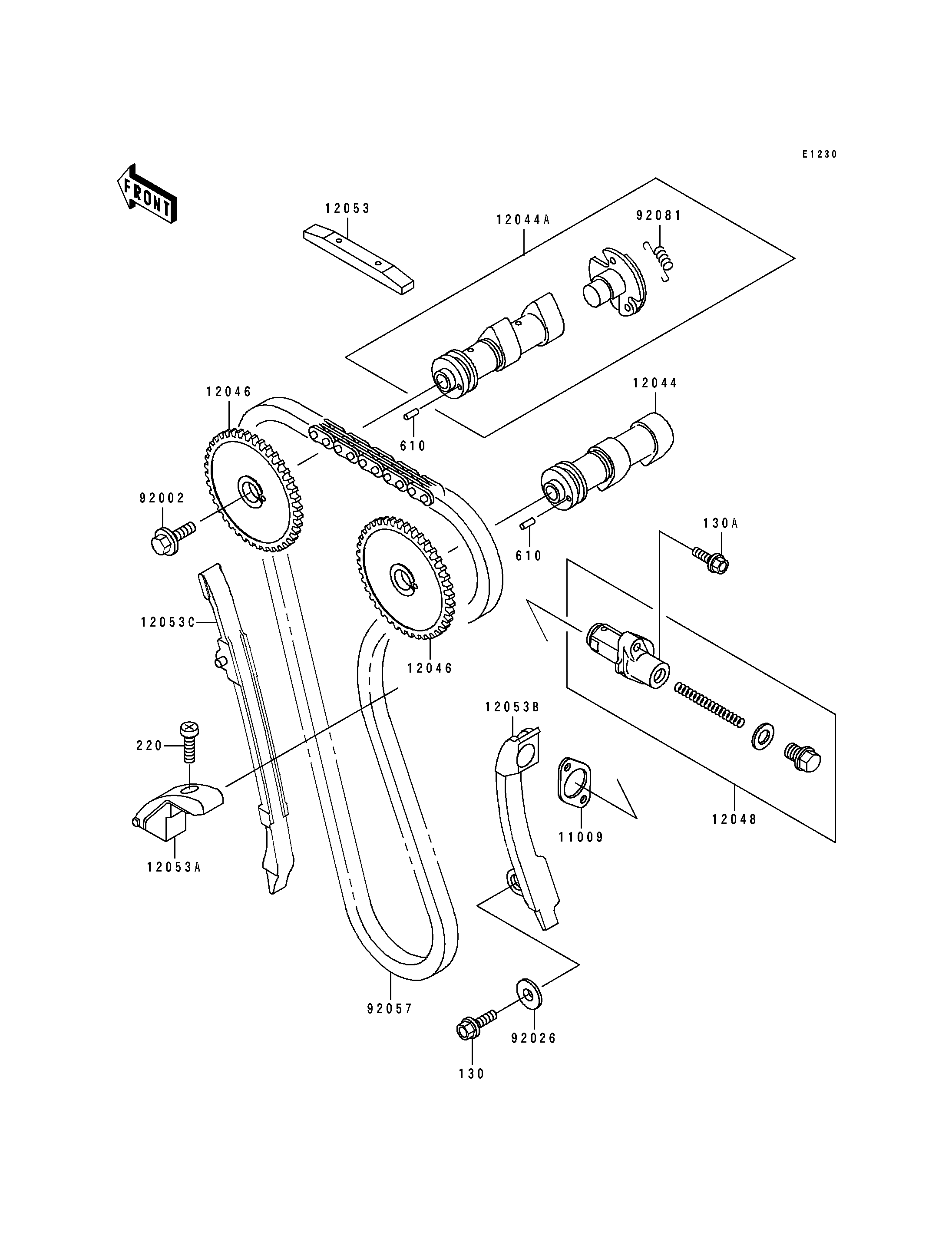

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TENSIONER 11009 11009-1858 1
CAMSHAFT-VALVE,INTAKE 12044 12044-1114 1
CAMSHAFT-VALVE,EXHAUST 12044A 12044-1197 1
SPROCKET,CAMSHAFT,48T 12046 12046-1062 2
TENSIONER-ASSY 12048 12048-1094 1
GUIDE-CHAIN,UPP 12053 12053-1107 1
GUIDE-CHAIN,LWR 12053A 12053-1134 1
GUIDE-CHAIN,RR 12053B 12053-1222 1
GUIDE-CHAIN,FR 12053C 12053-1223 1
BOLT,10X23 92002 92001-1859 2
SPACER 92026 92026-1146 1
CHAIN,CAM,75RH2015-174L 92057 92057-1226 1
SPRING,DECOMPRESSOR 92081 92081-1626 1
BOLT-FLANGED,8X25 130 130G0825 1
BOLT-FLANGED,6X25 130A 130J0625 2
SCREW-PAN-CROS,6X14 220 220B0614 1
ROLLER,4X10 610 610A0410 2
