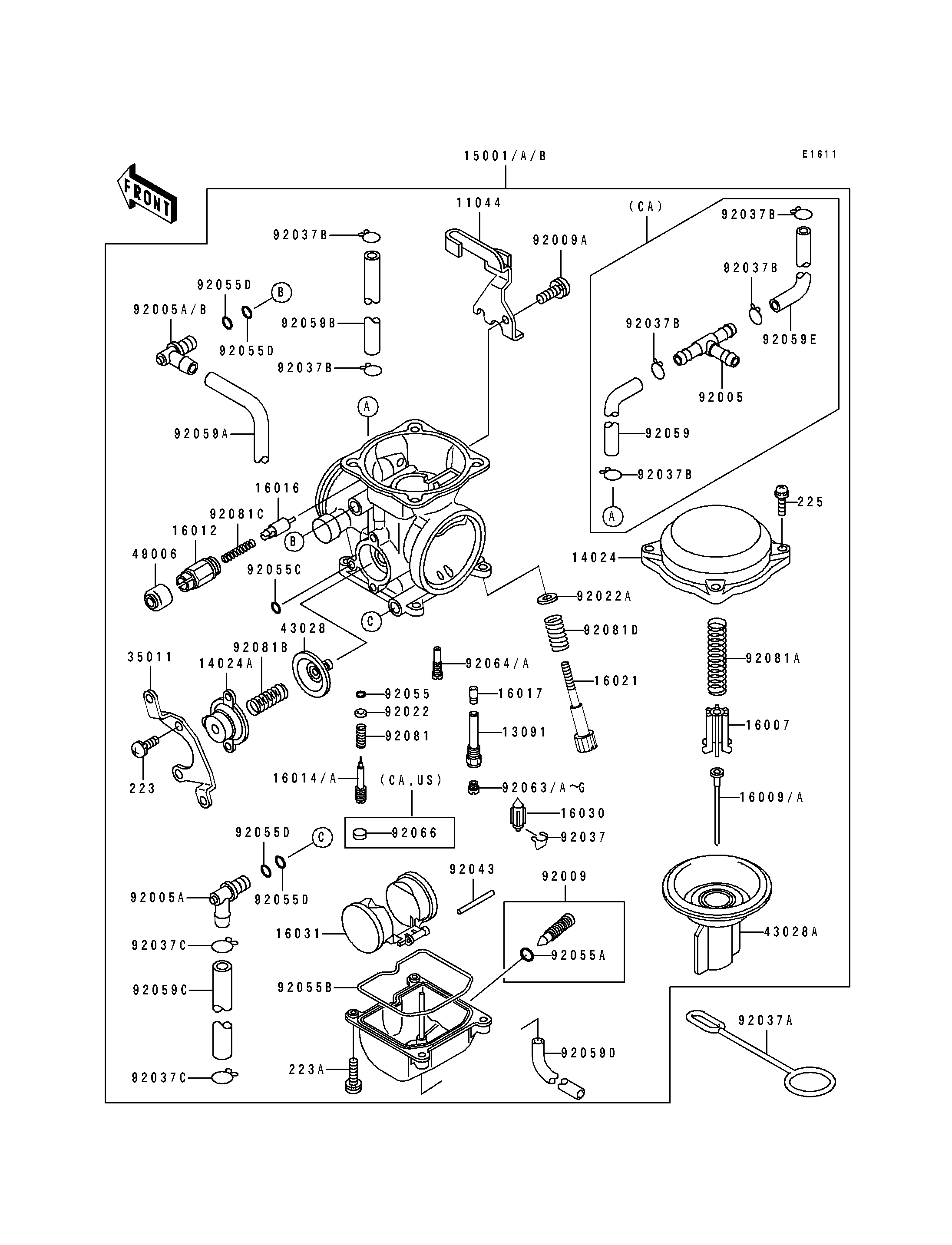

1990 Tengai - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABLE 11044 11044-1353 1
HOLDER,NEEDLE JET 13091 13091-1425 1
COVER,MIXING CHAMBER 14024 14025-1890 1
COVER,AIR CUT VALVE 14024A 14025-1903 1
CARBURETOR-ASSY 15001 15001-1327 1 US
CARBURETOR-ASSY 15001A 15001-1368 1 CA
CARBURETOR-ASSY 15001B 15001-1473 1 CN
SEAT-SPRING,DIAPHRAGM VALVE 16007 16007-1113 1
NEEDLE-JET,N31R 16009 16009-1344 1 CAUS
NEEDLE-JET,N74C 16009A 16009-1537 1 CN
CAP-STARTER PLUNGER 16012 16012-1055 1
SCREW-PILOT AIR 16014 16014-1053 1 CAUS
SCREW-PILOT AIR 16014A 16014-1061 1 CN
PLUNGER 16016 16016-1057 1
JET-NEEDLE 16017 16017-1254 1
SCREW-THROTTLE STOP 16021 16021-1109 1
VALVE-FLOAT 16030 16030-1057 1
FLOAT 16031 16031-1056 1
STAY,AIR CUT VALVE 35011 35011-1232 1
DIAPHRAGM,AIR CUT VALVE 43028 43028-1053 1
DIAPHRAGM,VALVE 43028A 43028-1062 1
BOOT,STARTER PLUNGER 49006 49006-1165 1
FITTING,FUEL,T-TYPE 92005 92005-1112 1 CA
FITTING,L-TYPE 92005A 92005-1120 1 CAUS
FITTING,L-TYPE 92005A 92005-1120 2 CN
FITTING,L-TYPE 92005B 92005-1144 1 CAUS
SCREW,DRAIN 92009 92009-1095 1
SCREW,5X10 92009A 92009-1365 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,THROTTLE STOP SCREW 92022A 92022-1587 1
CLAMP,FLOAT VALVE 92037 16044-007 1
CLAMP,OVERFLOW TUBE 92037A 92037-134 1
CLAMP,TUBE 92037B 92037-1477 4 CA
CLAMP,TUBE 92037B 92037-1477 2 CNUS
CLAMP,TUBE 92037C 92037-1531 2
PIN,FLOAT 92043 92043-1207 1
RING-O,PILOT ADJUST 92055 92055-1002 1
RING-O,DRAIN SCREW 92055A 92055-1053 1
RING-O,FLOAT CHAMBER 92055B 92055-1222 1
RING-O 92055C 92055-1245 1
RING-O 92055D 92055-1246 4
TUBE,5X9X120 92059 92059-1713 1 CA
TUBE,6.5X9.5X430 92059A 92059-1727 1
TUBE,5X9X220 92059B 92059-1836 1 CNUS
TUBE,6.5X11.5X170 92059C 92059-1837 1
TUBE,3.5X6.5X390 92059D 92059-1838 1 CN
TUBE,5X9X100 92059E 92059-1839 1 CA
JET-MAIN,#140 92063 92063-1013 1 CN
JET-MAIN,#142 92063A 92063-1016 1 (OFF ROAD USE ONLY)
JET-MAIN,#145 92063B 92063-1017 1 CN (OFF ROAD USE ONLY)
JET-MAIN,#145 92063C 92063-1017 1 CAUS
JET-MAIN,#148 92063D 92063-1324 1 CAUS
JET-MAIN,#148 92063E 92063-1324 1 CN
JET-MAIN,#150 92063F 92063-1330 1 (OFF ROAD USE ONLY)
JET-MAIN,#152 92063G 92063-1331 1 CAUS
JET-PILOT,#38 92064 92064-1050 1 CAUS
JET-PILOT,#40 92064A 92064-1108 1
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 1 CAUS
SPRING,PILOT ADJUST SCREW 92081 92081-1002 1
SPRING,DIAPHRAGM VALVE 92081A 92081-1718 1
SPRING,AIR CUT VALVE 92081B 92081-1719 1
SPRING,PLUNGER 92081C 92081-1720 1
SPRING,THROTTLE STOP SCREW 92081D 92081-1721 1
SCREW-PAN-WS-CROS 223 223C0410 2
SCREW-PAN-WS-CROS 223A 223C0416 4
SCREW-PAN-WSP-CROS 225 225C0418 4
