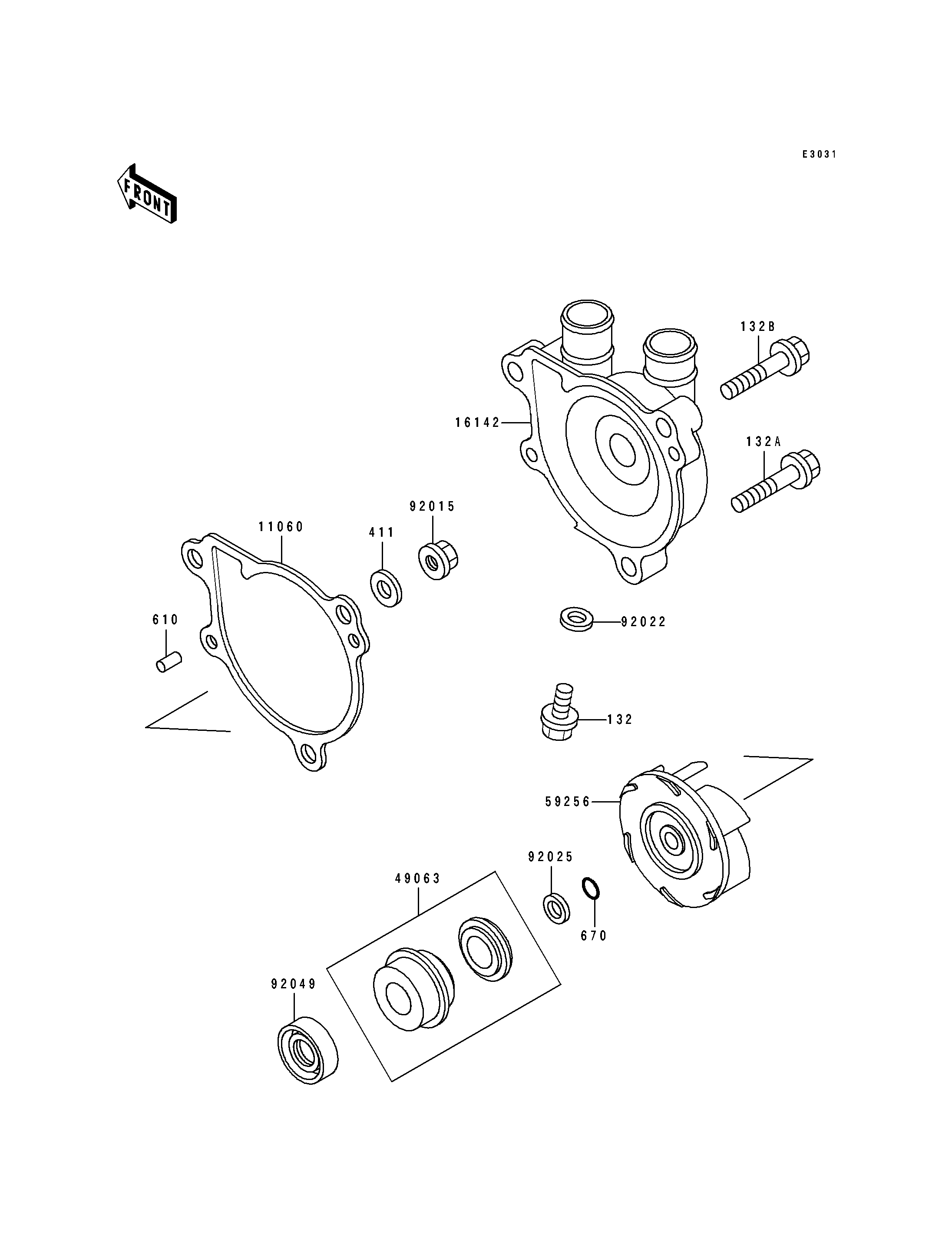

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,WATER PUMP COVER 11060 11060-1114 1
COVER-PUMP 16142 16142-1097 1
SEAL-MECHANICAL 49063 49063-1054 1
IMPELLER 59256 59256-1055 1
NUT,FLANGED,6MM 92015 92015-1078 1
WASHER,6.2X11X1 92022 92022-304 1
SHIM,T=0.8 92025 92025-1503 1
SEAL-OIL,SC10227 92049 92049-1157 1
BOLT-FLANGED-SMALL 132 132J0608 1
BOLT-FLANGED-SMALL 132A 132J0630 2
BOLT-FLANGED-SMALL 132B 132J0635 1
WASHER-PLAIN,6MM,BLACK 411 411F0600 1
ROLLER,4X8 610 610A0408 2
O RING,6MM 670 670B1506 1
