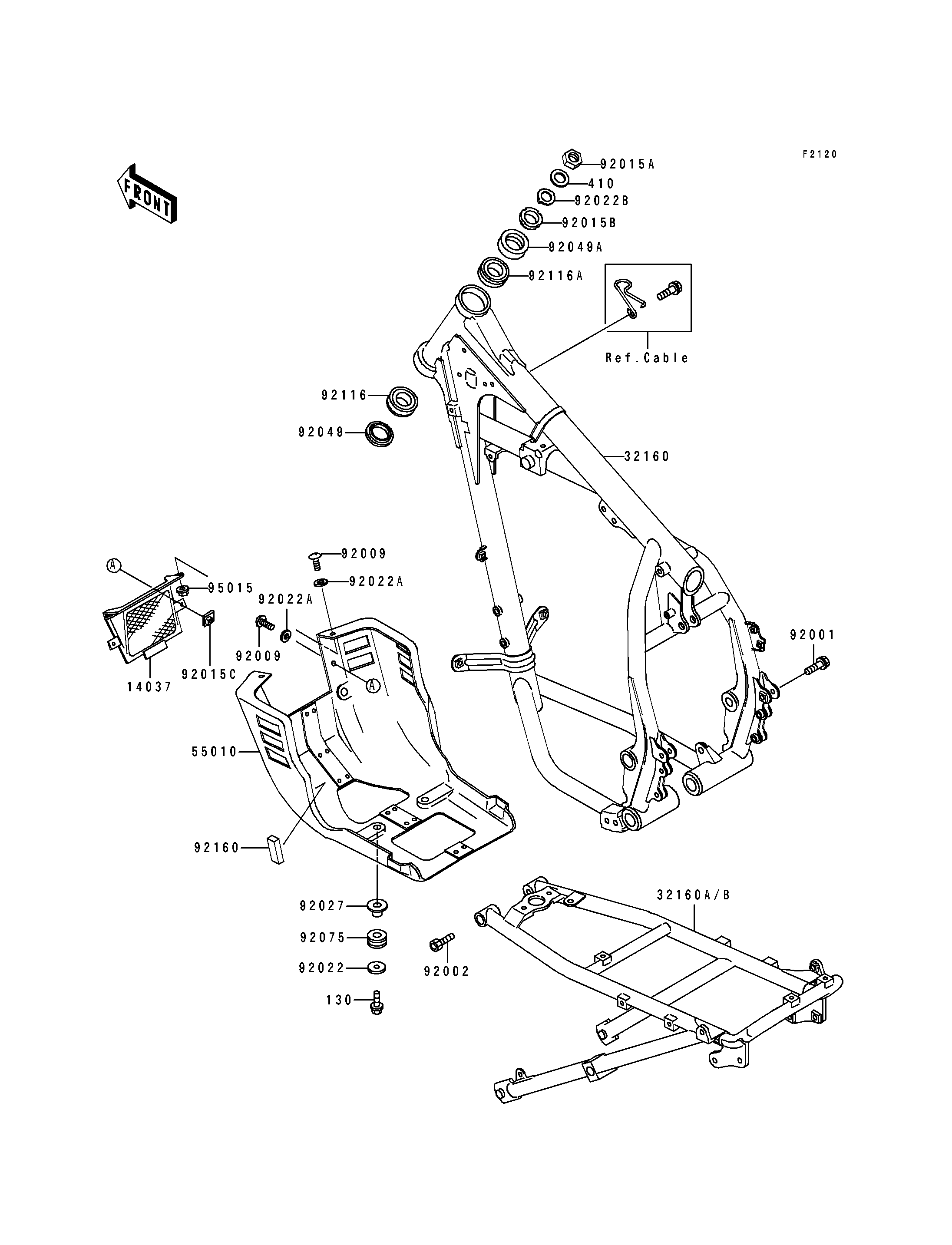

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREEN,ENGINE GUARD,BLACK | 14037 | 14037-1117-6Z | 1 | ||
| FRAME-COMP,FR,GRAY | 32160 | 32160-1028-EC | 1 | ||
| FRAME-COMP,RR,GRAY | 32160A | 32160-1029-EC | 1 | CNUS | |
| FRAME-COMP,RR,GRAY | 32160B | 32160-1105-EC | 1 | CA | |
| GUARD-ASSY,ENGINE,P.G.GRAY | 55010 | 55010-1052-T8 | 1 | ||
| BOLT,FLANGED,8X28,BLACK | 92001 | 92001-1508 | 2 | ||
| BOLT,SOCKET,8X25 | 92002 | 92002-1442 | 2 | ||
| SCREW,5X14,BLACK | 92009 | 92009-1383 | 4 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1328 | 2 | ||
| NUT,18MM | 92015A | 92015-1404 | 1 | ||
| NUT,25MM,T=12 | 92015B | 92015-1546 | 1 | ||
| NUT,5MM | 92015C | 92015-1710 | 2 | ||
| WASHER,7X24X1.6 | 92022 | 92022-1160 | 2 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022A | 92022-1521 | 4 | ||
| WASHER,CLAW,18.5X30X2.3 | 92022B | 92022-1555 | 1 | ||
| COLLAR,L=13.1,BLACK | 92027 | 92027-1450 | 4 | ||
| SEAL-OIL,XMHE36X52X4J | 92049 | 92049-1162 | 1 | ||
| SEAL-OIL,STEERING STEM | 92049A | 92049-1214 | 1 | ||
| DAMPER | 92075 | 92075-1690 | 4 | ||
| BEARING-ROLLER,HR320/28XJ | 92116 | 92116-1009 | 1 | ||
| BEARING-ROLLER,HICAP 32005JR | 92116A | 92116-1052 | 1 | ||
| DAMPER | 92160 | 92160-1183 | 1 | ||
| BOLT-FLANGED,6X25 | 130 | 130J0625 | 4 | ||
| W-PLAIN-S | 410 | 410F1800 | 1 |
