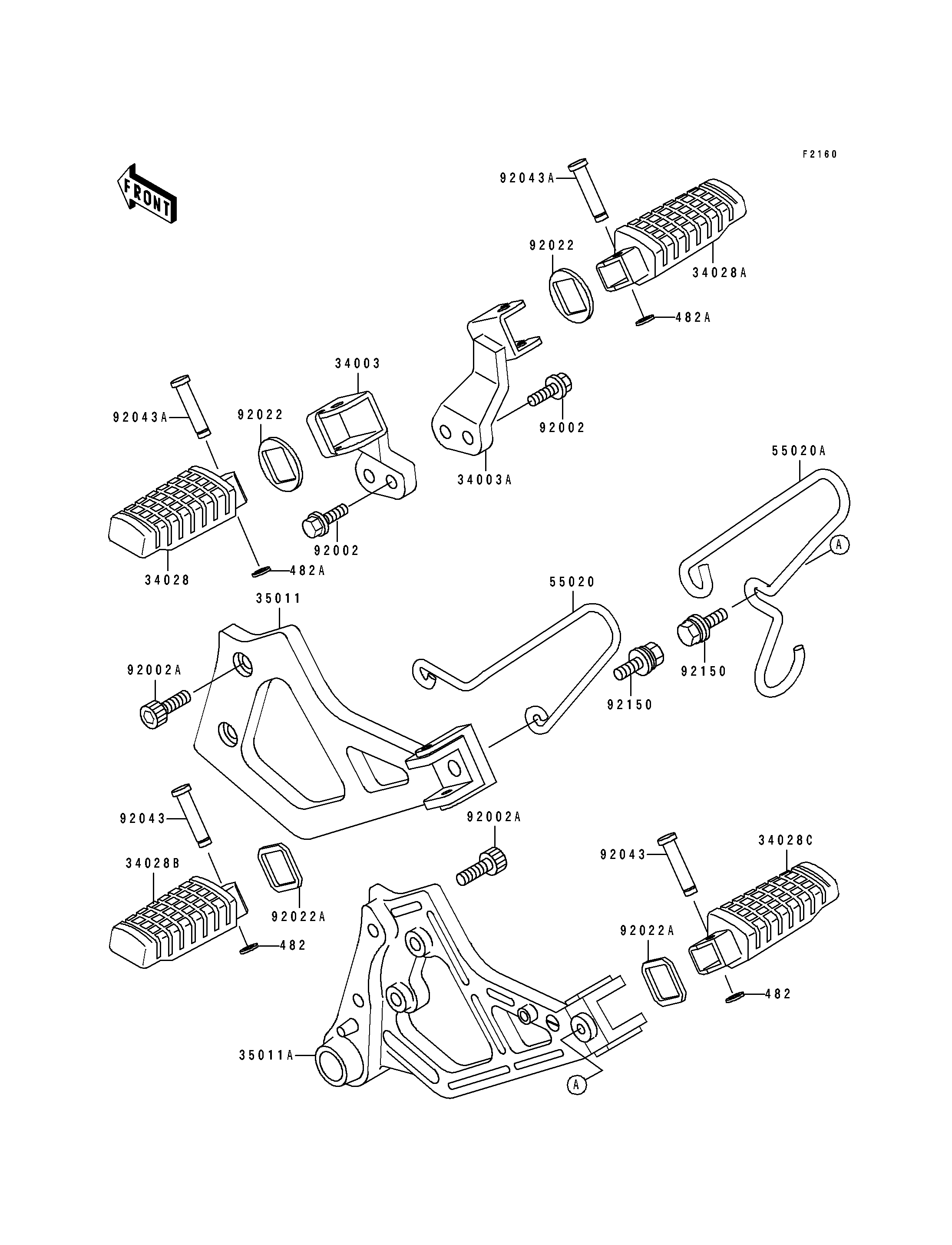

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER-STEP,FR,LH,GRAY | 34003 | 34003-1303-EC | 1 | ||
HOLDER-STEP,FR,RH,GRAY | 34003A | 34003-1304-EC | 1 | ||
STEP,FR,LH | 34028 | 34028-1193 | 1 | ||
STEP,FR,RH | 34028A | 34028-1194 | 1 | ||
STEP,RR,LH | 34028B | 34028-1195 | 1 | ||
STEP,RR,RH | 34028C | 34028-1196 | 1 | ||
STAY,RR,LH | 35011 | 35011-1472 | 1 | ||
STAY,RR,RH | 35011A | 35011-1473 | 1 | ||
GUARD,REAR STEP,LH | 55020 | 55020-1333 | 1 | ||
GUARD,REAR STEP,RH | 55020A | 55020-1334 | 1 | ||
BOLT,FLANGED,8X20 | 92002 | 92002-1417 | 4 | ||
BOLT,SOCKET,8X25 | 92002A | 92002-1442 | 4 | ||
WASHER,STEP FITTING | 92022 | 92022-1314 | 2 | ||
WASHER,STEP FITTING | 92022A | 92022-1797 | 2 | ||
PIN,6X38.5 | 92043 | 92043-1328 | 2 | ||
PIN,8X36.5 | 92043A | 92043-1339 | 2 | ||
BOLT,FLANGED,6X16 | 92150 | 92150-1506 | 4 | ||
CIRCLIP-TYPE-E,5MM | 482 | 482L5000 | 2 | ||
CIRCLIP-TYPE-E | 482A | 482L7000 | 2 |
