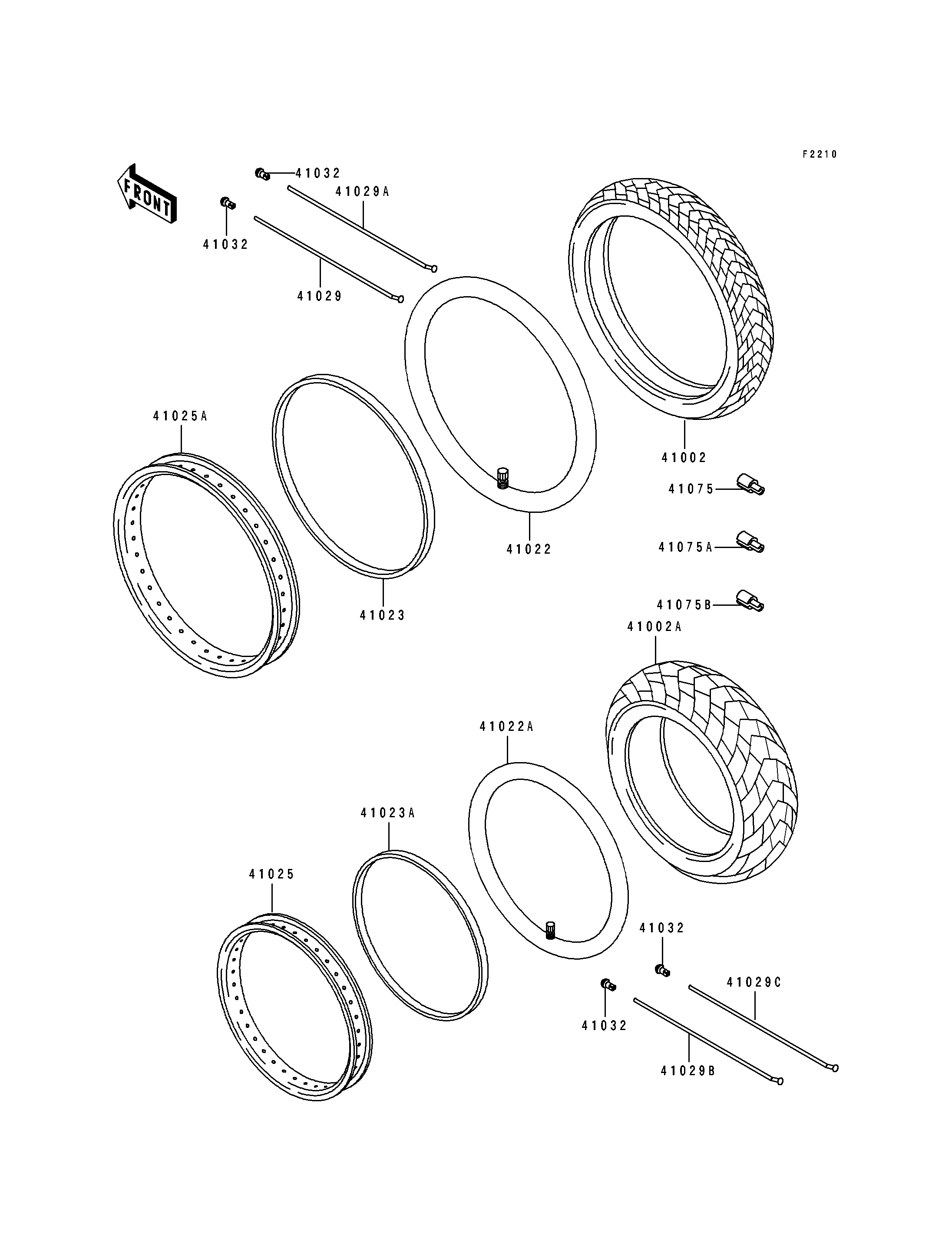

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,90/90-21 54S(D) 41002 41002-1706 1
TIRE,RR,130/80-17 65S(D) 41002A 41002-1707 1
TUBE-TIRE,2.75/3.00-21(DUNLOP) 41022 41022-036 1
TUBE-TIRE,4.00/5.10-17(DUNLOP) 41022A 41022-1029 1
BAND-RIM,90/90-21(D) 41023 41023-1055 1
BAND-RIM,130/80-17(D) 41023A 41023-1059 1
RIM,RR,2.50X17 41025 41025-1171 1
RIM,FR,1.60X21 41025A 41025-1218 1
SPOKE-INNER,FR,LH,238MMX160D 41029 41029-1165 18
SPOKE-INNER,FR,RH,240MMX160D 41029A 41029-1166 18
SPOKE-INNER,RR,LH,155MMX170D 41029B 41029-1167 18
SPOKE-INNER,RR,RH,178MMX172D 41029C 41029-1168 18
NIPPLE-SPOKE 41032 41032-1054 72
BALANCER-WHEEL,10G 41075 41075-1007 AR
BALANCER-WHEEL,20G 41075A 41075-1008 AR
BALANCER-WHEEL,30G 41075B 41075-1009 AR
