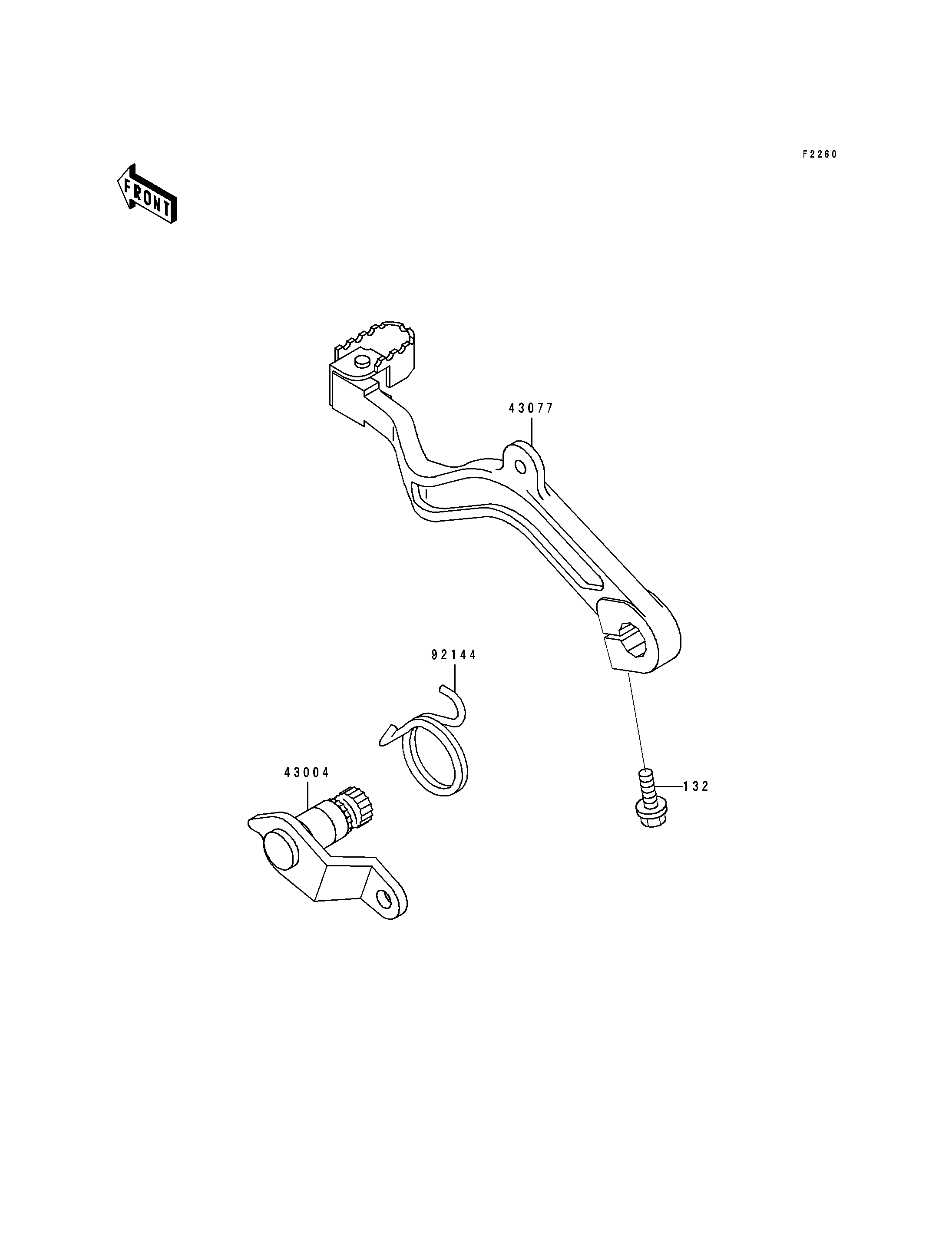

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-BRAKE 43004 43004-1127 1
LEVER-ASSY-BRAKE,PEDAL 43077 43077-1071 1
SPRING,BRAKE PEDAL RETURN 92144 92144-1383 1
BOLT-FLANGED-SMALL 132 132G0625 1
