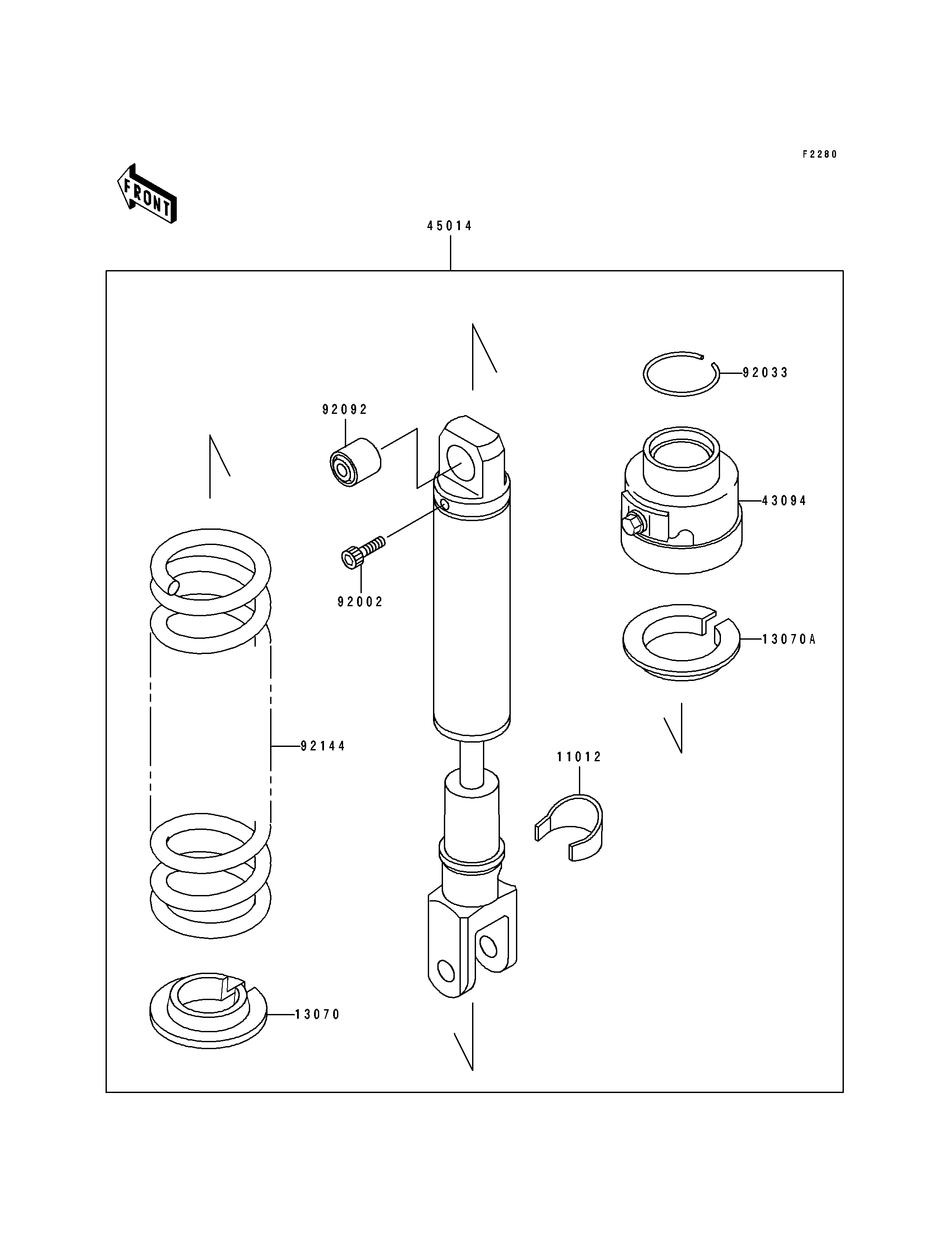

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SHOCKABSORBER 11012 11012-1398 1
GUIDE,SPRING 13070 13070-1075 1
GUIDE,SPRING 13070A 13070-1177 1
ADJUSTER,SHOCKABSORBER 43094 43094-1052 1
SHOCKABSORBER 45014 45014-1422 1
BOLT,SOCKET,5X8 92002 92002-1963 1
RING-SNAP 92033 92033-1233 1
BUSHING-RUBBER 92092 92092-1063 1
SPRING,SHOCKABSORBER 92144 92144-1406 1
