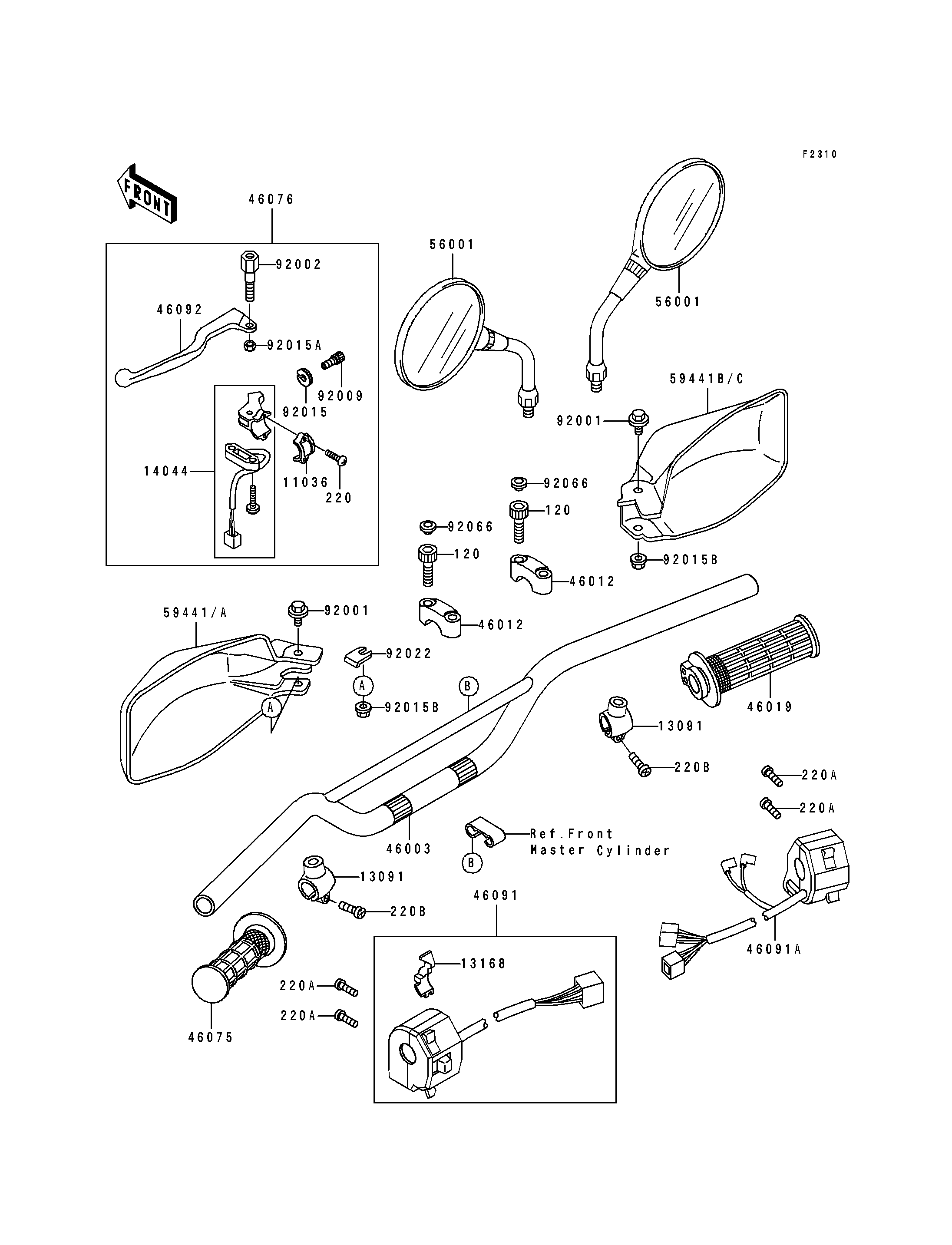

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-A,LEVER HOLDER | 11036 | 11036-1297 | 1 | ||
| HOLDER,ENGINE STOP SWITCH | 13091 | 13091-1255 | 2 | ||
| LEVER,CHOKE | 13168 | 13168-1374 | 1 | ||
| HOLDER-CABLE,CLUTCH | 14044 | 14044-1063 | 1 | ||
| HANDLE | 46003 | 46003-1295 | 1 | ||
| HOLDER-HANDLE | 46012 | 46012-1102 | 2 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1058 | 1 | ||
| GRIP,LH | 46075 | 46075-1022 | 1 | ||
| LEVER-ASSY-GRIP,CLUTCH | 46076 | 46076-1160 | 1 | ||
| HOUSING-ASSY-CONTROL,LH | 46091 | 46091-1523 | 1 | ||
| HOUSING-ASSY-CONTROL,RH | 46091A | 46091-1524 | 1 | ||
| LEVER-GRIP,CLUTCH | 46092 | 46092-1111 | 1 | ||
| MIRROR-ASSY | 56001 | 56001-1285 | 2 | ||
| COVER-HANDLE,LH,B.BLUE | 59441A | 59441-1092-6K | 1 | ||
| COVER-HANDLE,RH,B.BLUE | 59441C | 59441-1093-6K | 1 | ||
| BOLT,FLANGED,6X10 | 92001 | 92001-1034 | 2 | ||
| BOLT,LEVER SET | 92002 | 92002-1880 | 1 | ||
| SCREW,CABLE ADJUST,8MM | 92009 | 46055-009 | 1 | ||
| NUT,CABLE ADJUST | 92015 | 46056-006 | 1 | ||
| NUT,LOCK,6MM,BLACK | 92015A | 92015-1191 | 1 | ||
| NUT,LOCK,6MM | 92015B | 92015-1603 | 2 | ||
| WASHER | 92022 | 92022-1896 | 1 | ||
| PLUG | 92066 | 92066-1216 | 4 | ||
| BOLT-SOCKET,8X30,BLACK | 120 | 120S0830 | 4 | ||
| SCREW-PAN-CROS | 220 | 220C0514 | 2 | ||
| SCREW-PAN-CROS | 220A | 220C0520 | 4 | ||
| SCREW-PAN-CROS,6X20,BLACK | 220B | 220C0620 | 2 |
