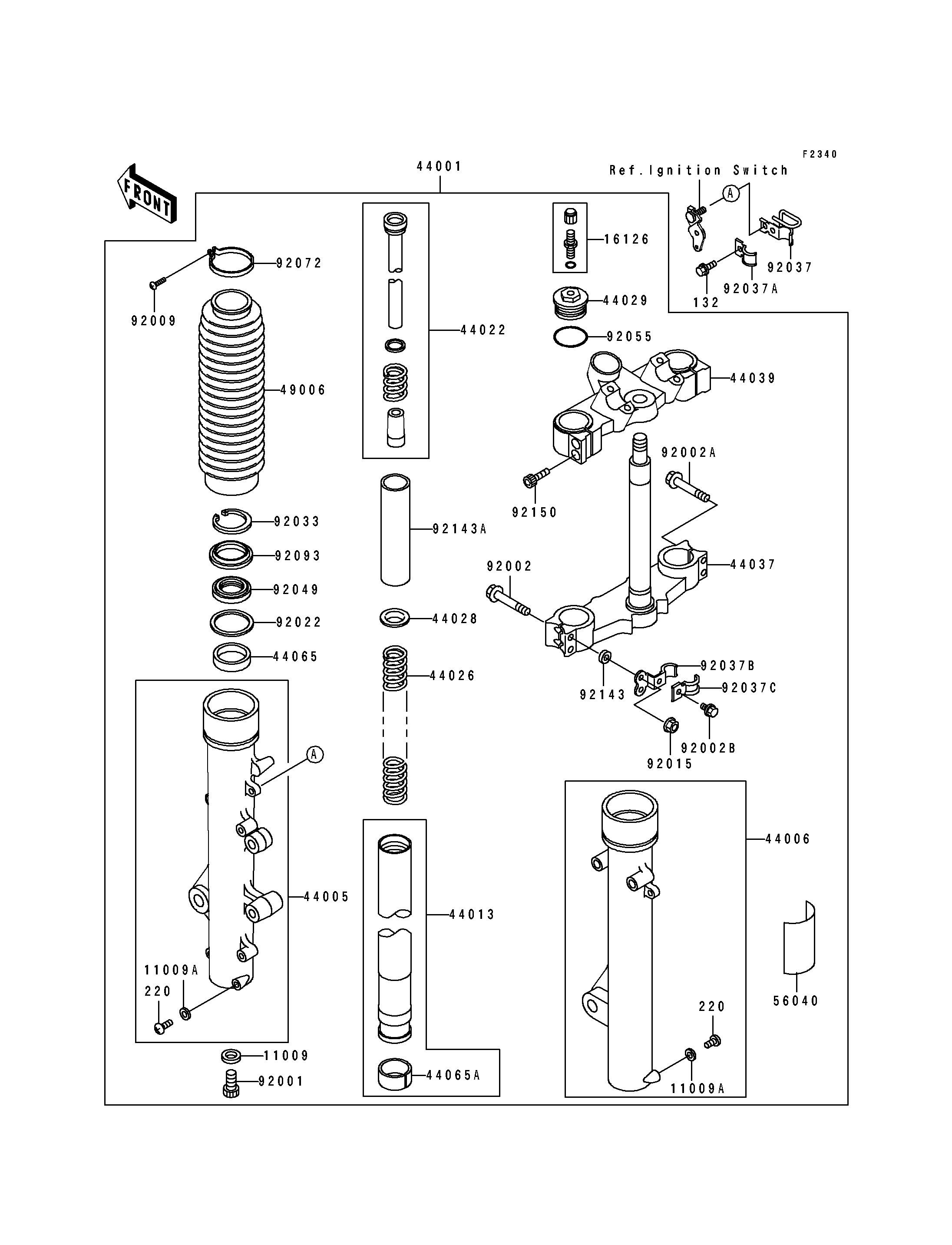

1990 Tengai - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
GASKET,FORK DRAIN PLUG 11009A 44045-002 2
VALVE,AIR 16126 16126-1052 2
FORK-FRONT,BLUE 44001 44001-1717-BC 1
PIPE-LEFT FORK OUTER 44005 44005-1293 1
PIPE-RIGHT FORK OUTER 44006 44006-1290 1
PIPE-FORK INNER 44013 44013-1296 2
CYLINDER-FORK 44022 44022-1241 2
SPRING-FRONT FORK 44026 44026-1433 2
GUIDE-FORK SPRING 44028 44028-1004 2
SEAT-FORK SPRING 44029 44029-1042 2
HOLDER-FORK UNDER 44037 44037-1251 1
HOLDER-FORK UPPER 44039 44039-1188 1
BUSHING-FRONT FORK,OUTER TUBE 44065 44065-1091 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1092 2
BOOT,FORK,BLUE 49006 49006-1222-BC 2
LABEL-WARNING,FRONT FORK 56040 56040-1120 1
BOLT,FORK CYLINDER 92001 92001-1309 2
BOLT,FLANGED,8X55 92002 92002-1158 2
BOLT,FLANGED,8X50 92002A 92002-1848 2
BOLT 92002B 92002-1982 1
SCREW,4X16 92009 92009-1348 2
NUT,FLANGED,8MM 92015 92015-1408 4
WASHER,FORK OUTER PIPE 92022 92022-1262 2
RING-SNAP,FORK 92033 92033-1047 2
CLAMP,HOSE 92037 92037-1897 1
CLAMP,HOSE 92037A 92037-1898 1
CLAMP 92037B 92037-1913 1
CLAMP 92037C 92037-1931 1
SEAL-OIL,FRONT FORK 92049 92049-1180 2
RING-O,FORK TOP CAP 92055 92055-1050 2
BAND,BOOT 92072 92072-1171 2
SEAL,FRONT FORK 92093 92093-1166 2
COLLAR 92143 92143-1134 2
COLLAR,FORK,L=150 92143A 92143-1337 2
BOLT,SOCKET,8X30 92150 92150-1307 4
BOLT-FLANGED-SMALL 132 132J0612 1
SCREW-PAN-CROS 220 220E0408 2
