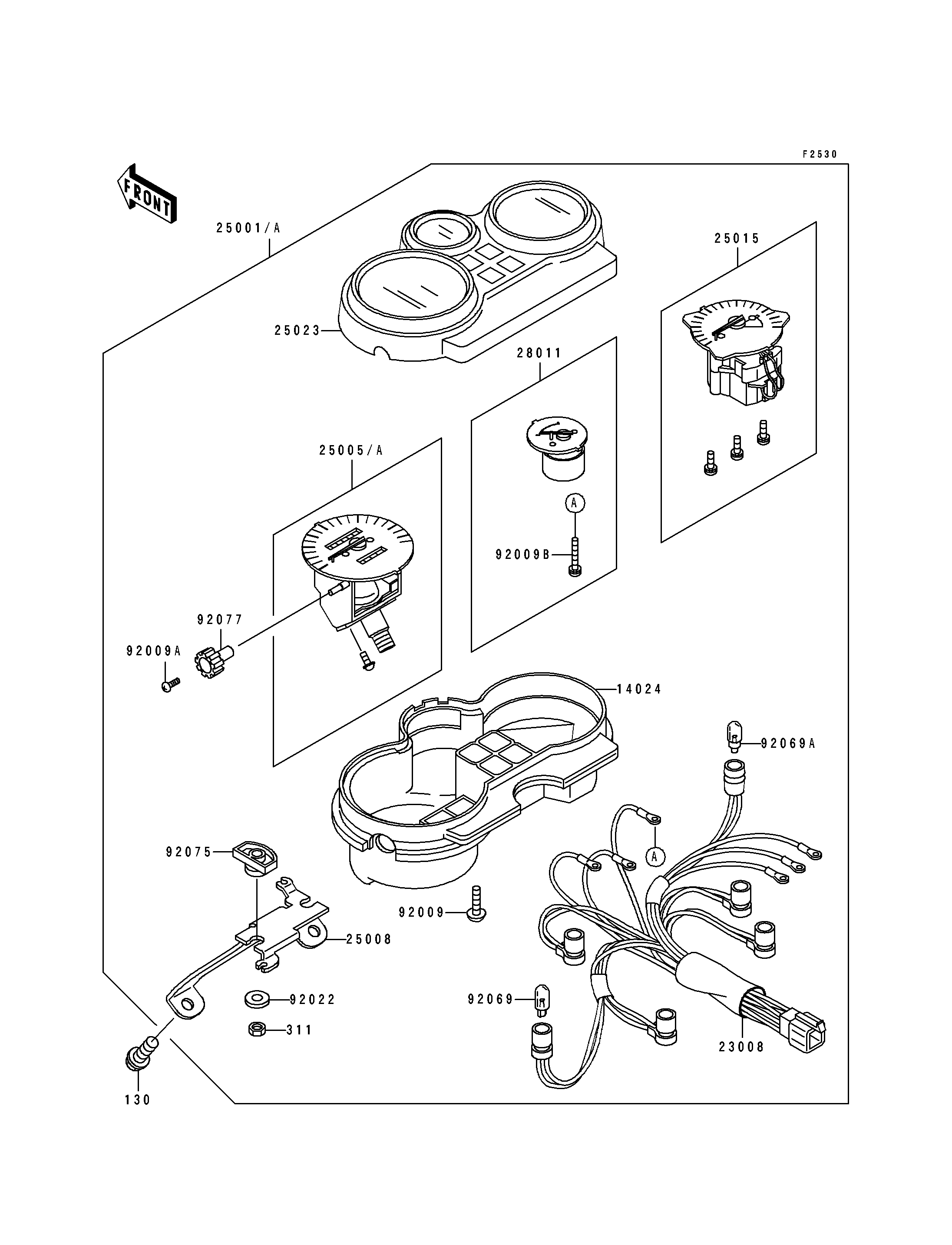

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,METER HOUSING | 14024 | 14024-1768 | 1 | ||
SOCKET-ASSY,METER | 23008 | 23008-1298 | 1 | ||
METER-ASSY,KPH | 25001 | 25001-1740 | 1 | CN | |
METER-ASSY,MPH | 25001A | 25001-1787 | 1 | CAUS | |
SPEEDOMETER,KPH | 25005 | 25005-1404 | 1 | CN | |
SPEEDOMETER,MPH | 25005A | 25005-1434 | 1 | CAUS | |
BRACKET-METER | 25008 | 25008-1157 | 1 | ||
TACHOMETER,X1000R/MIN | 25015 | 25015-1281 | 1 | ||
COVER-METER CASE,UPP | 25023 | 25023-1163 | 1 | ||
METER,TEMP | 28011 | 28011-1111 | 1 | ||
SCREW,4X16,BLACK | 92009 | 92009-1158 | 4 | ||
SCREW,2X6,BLACK | 92009A | 92009-1172 | 1 | ||
SCREW,3X22 | 92009B | 92009-1293 | 3 | ||
WASHER,5.2X16X1.2 | 92022 | 25009-004 | 2 | ||
BULB,12V 3.4W | 92069 | 92069-1007 | 5 | ||
BULB,12V3W T-7 | 92069A | 92069-1020 | 1 | ||
DAMPER,METER BRACKET | 92075 | 92075-1581 | 2 | ||
KNOB,METER | 92077 | 92077-1056 | 1 | ||
BOLT-FLANGED | 130 | 130J0812 | 2 | ||
NUT-HEX | 311 | 311C0500 | 2 |
