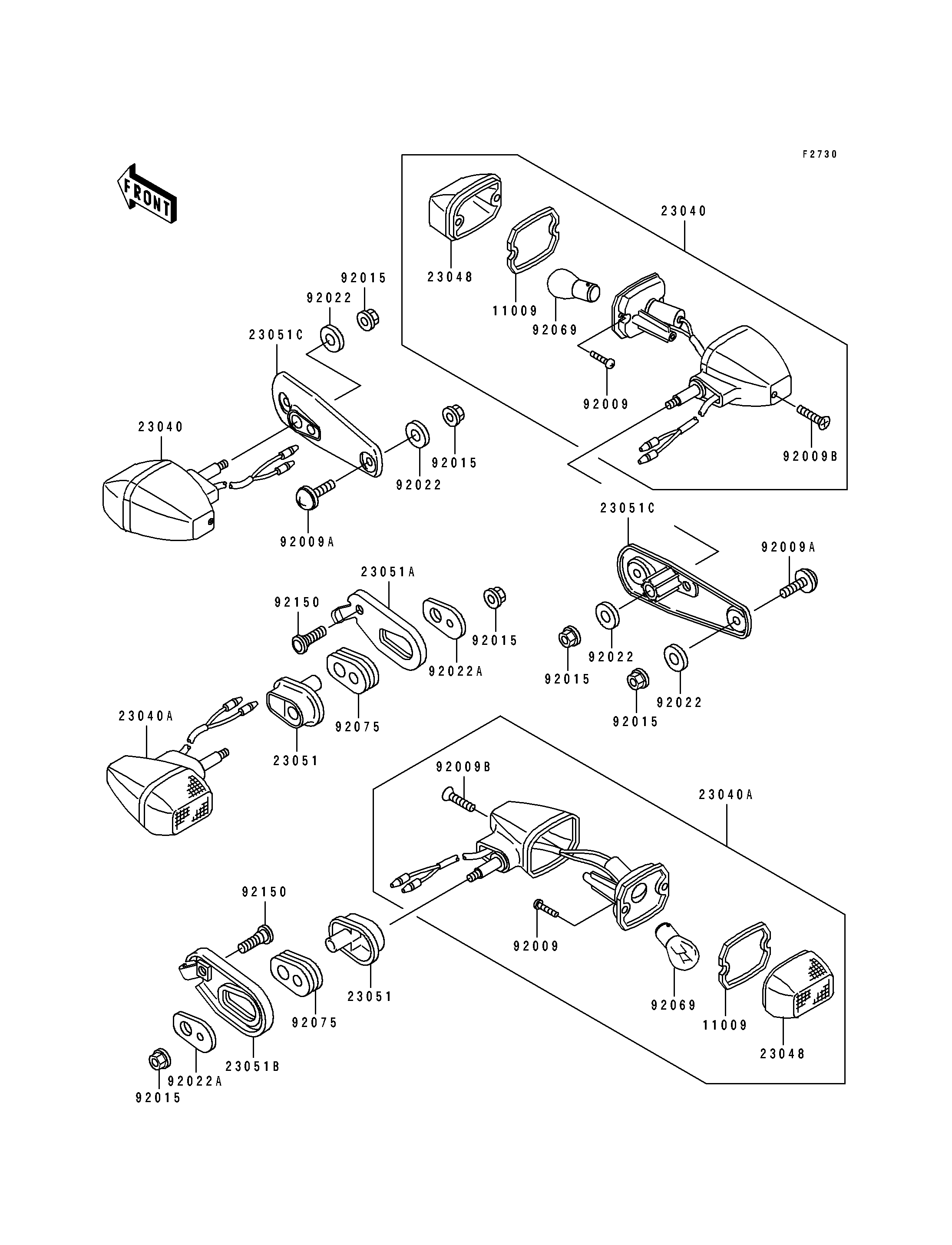

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,SIGNAL LAMP 11009 11009-1402 4
LAMP-SIGNAL,FR 23040 23040-1105 2
LAMP-SIGNAL,RR 23040A 23040-1116 2
LENS-SIGNAL LAMP 23048 23048-1054 4
BRACKET-SIGNAL LAMP,RR 23051 23051-1168 2
BRACKET-SIGNAL LAMP,RR,LH 23051A 23051-1205 1
BRACKET-SIGNAL LAMP,RR,RH 23051B 23051-1206 1
BRACKET-SIGNAL LAMP,FR 23051C 23051-1210 2
SCREW,TAPPING,3X16 92009 92009-1115 8
SCREW,6X18,BLACK 92009A 92009-1181 4
SCREW,TAPPING,4X20 92009B 92009-1304 4
NUT,FLANGED,6MM,BLACK 92015 92015-1237 8
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 6
WASHER,SIGNAL LAMP 92022A 92022-1672 2
BULB,12V 32CP(23W) 92069 92069-055 4
DAMPER,SIGNAL LAMP 92075 92075-1698 2
BOLT,8MM 92150 92150-1151 2
