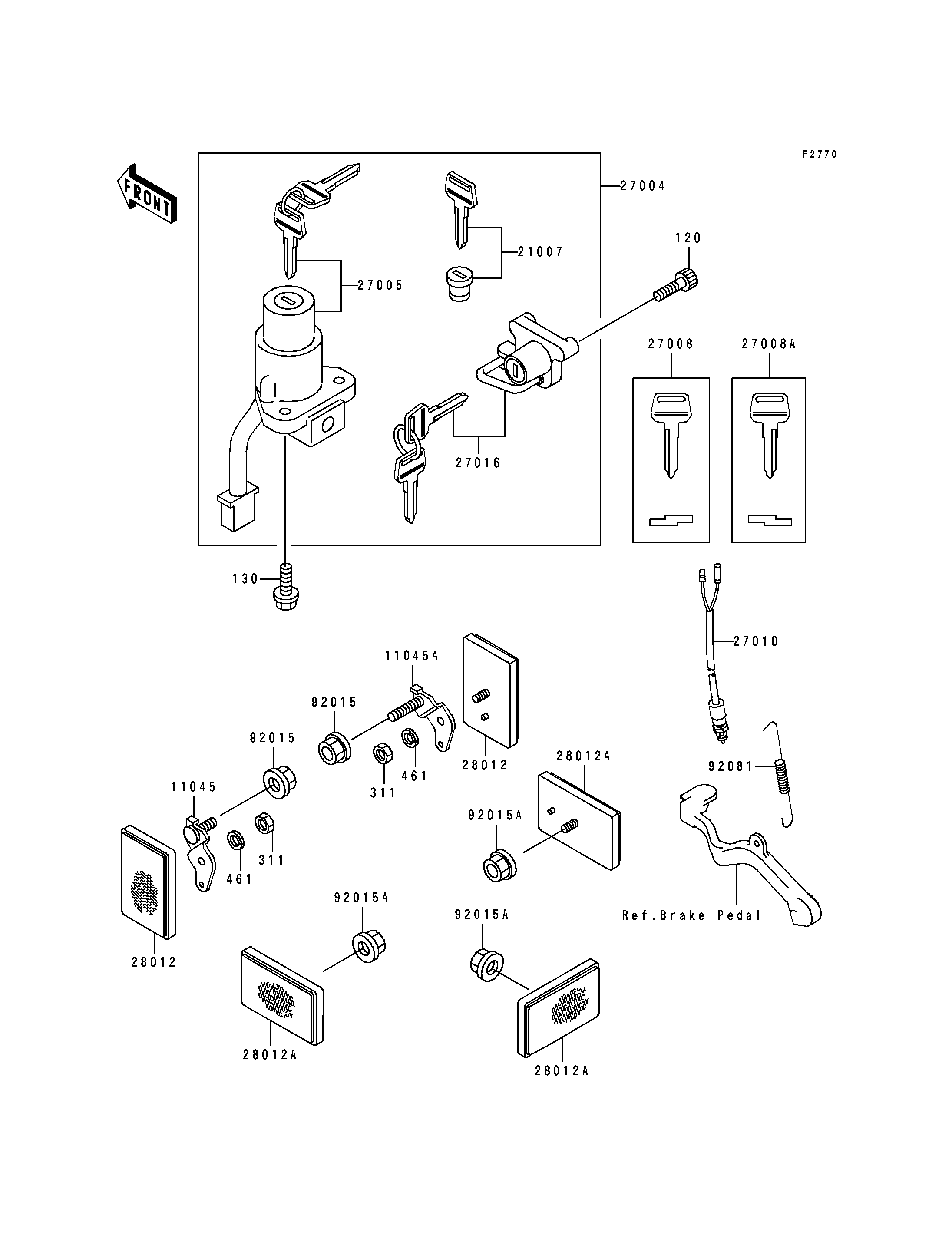

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR,FR,LH 11045 11045-1354 1
BRACKET,REFLECTOR,FR,RH 11045A 11045-1355 1
ROTOR,LOCK,TANK CAP 21007 21007-5022 1
SWITCH-ASSY 27004 27004-5359 1
SWITCH-ASSY-IGNITION 27005 27005-1143 1
KEY-LOCK,BLANK,#A 27008 27008-1034 1 (OPTION)
KEY-LOCK,BLANK,#B 27008A 27008-1035 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-1019 1
LOCK-ASSY,HELMET 27016 27016-5075 1
REFLECTOR-REFLEX 28012 28012-1003 2
REFLECTOR-REFLEX,RR 28012A 28012-1054 3
NUT,FLANGED,6MM,BLACK 92015 92015-1237 2
NUT,FLANGED,5MM 92015A 92015-1259 3
SPRING,BRAKE LAMP SWITCH 92081 27011-007 1
BOLT-SOCKET 120 120S0612 2
BOLT-FLANGED,6X14 130 130D0614 2
NUT-HEX 311 311B0500 2
WASHER-SPRING,5MM 461 461F0500 2
