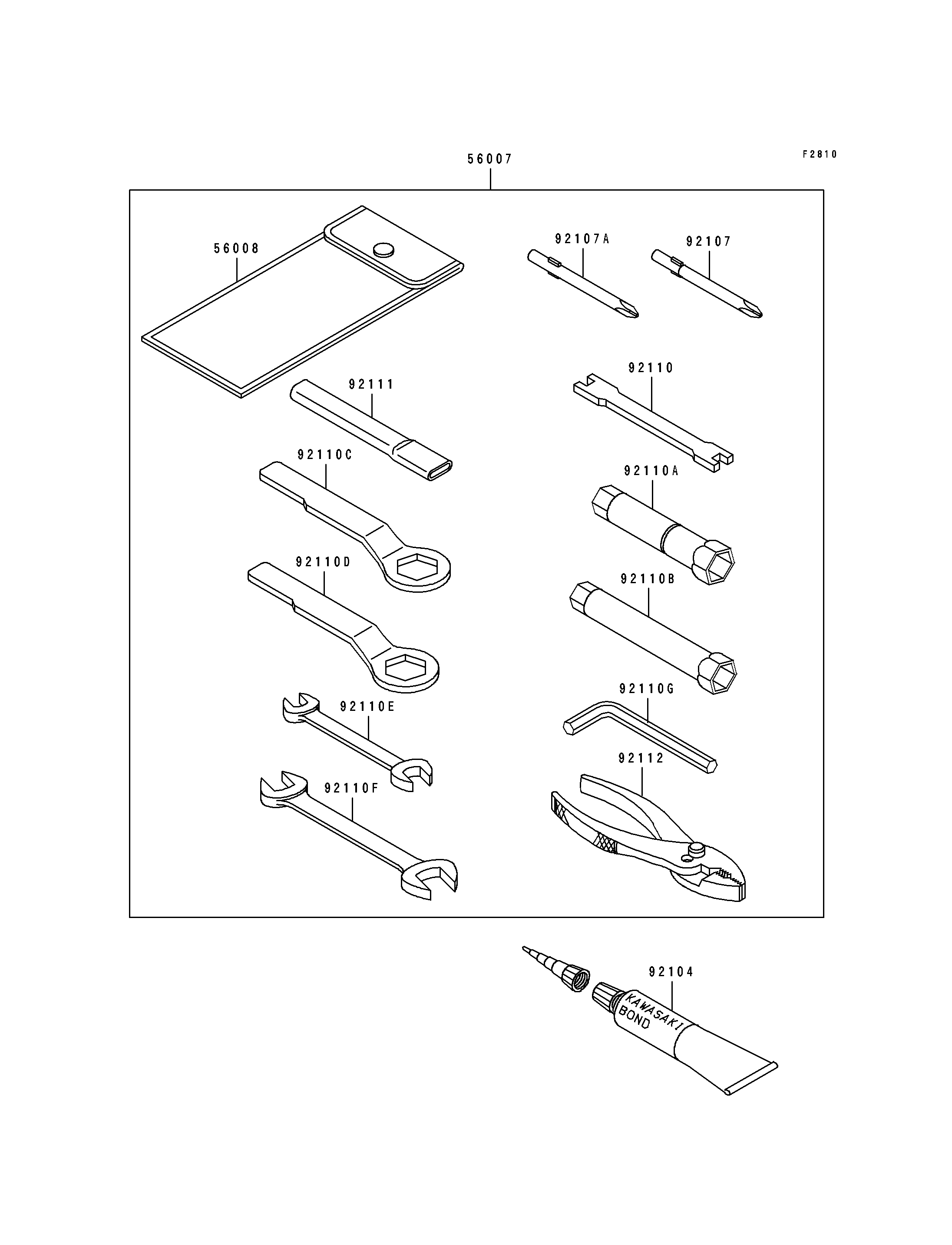

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOLKIT 56007 56007-1332 1
BAG,TOOL 56008 56008-1019 1
GASKET-LIQUID,TUBE,100G,SILVER 92104 92104-002 1
TOOL-DRIVER,#3PHILLIPS 92107 92107-005 1
TOOL-DRIVER,#2PHILLIPS 92107A 92107-1053 1
TOOL-WRENCH,SPOKE 92110 92110-1016 1
TOOL-WRENCH,BOX,18MM 92110A 92110-1111 1
TOOL-WRENCH,BOX,12MM 92110B 92110-1131 1
TOOL-WRENCH,BOX END,24MM 92110C 92110-1150 1
TOOL-WRENCH,BOX END,19MM 92110D 92110-1151 1
TOOL-WRENCH,OPEN END,10X12 92110E 92110-1152 1
TOOL-WRENCH,OPEN END,14X17 92110F 92110-1153 1
TOOL-WRENCH,ALLEN,6MM 92110G 92127-003 1
TOOL-BAR,BOX END WRENCH 92111 92111-1051 1
TOOL-PLIERS 92112 92112-003 1
