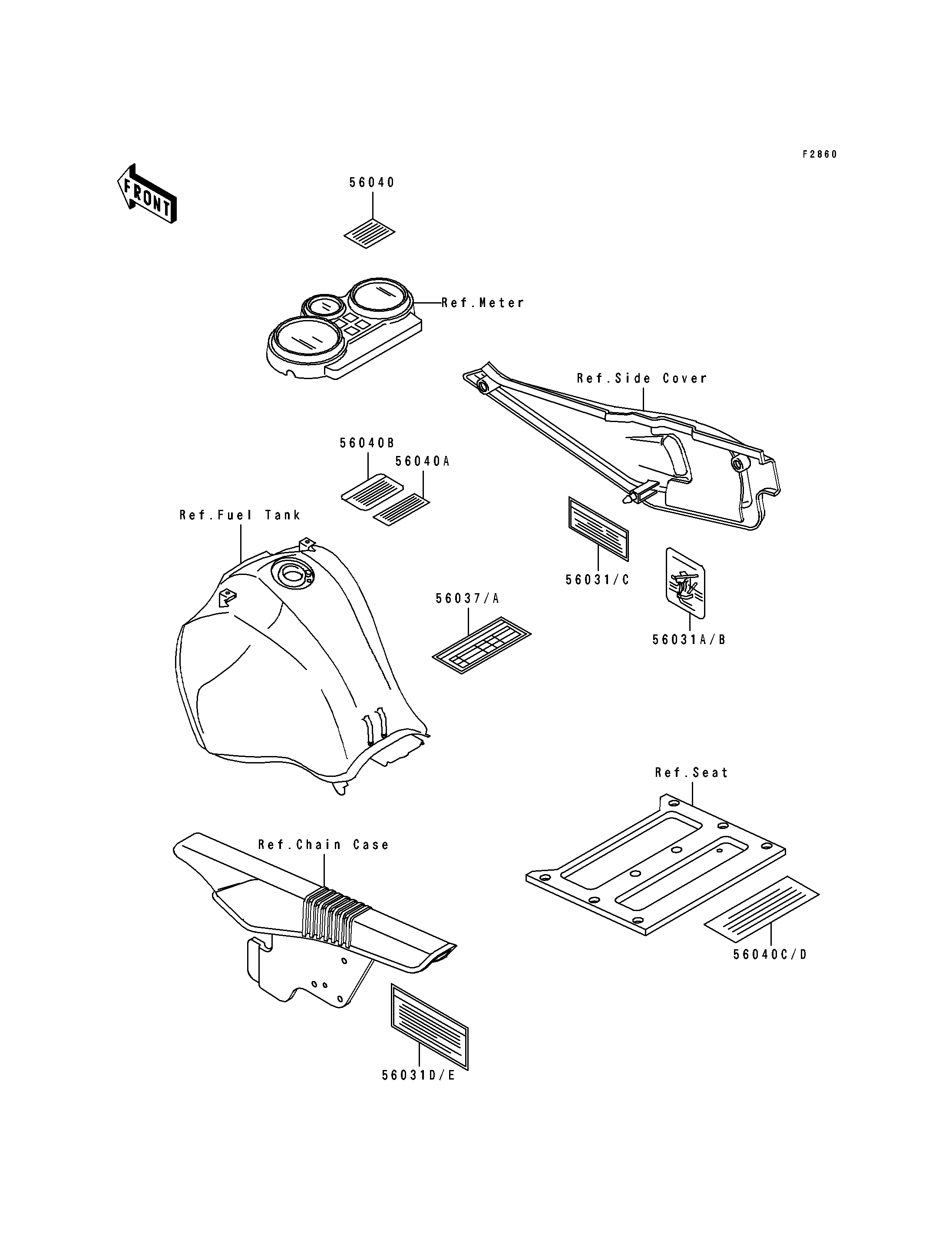

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,OIL & OIL FILTER 56031 56031-1534 1
LABEL-MANUAL,BATTERY VENT 56031A 56031-1536 1
LABEL-MANUAL,BATTERY VENT 56031B 56031-1540 1 CN
LABEL-MANUAL,OIL & OIL FILTER 56031C 56031-1541 1 CN
LABEL-MANUAL,CHAIN 56031D 56031-1622 1
LABEL-MANUAL,CHAIN 56031E 56031-1623 1 CN
LABEL-SPECIFICATION,TIRE&LOAD 56037 56037-1474 1 CAUS
LABEL-SPECIFICATION,TIRE&LOAD 56037A 56037-1491 1 CN
LABEL-WARNING,BREAK IN CAUTION 56040 56040-1007 1 CAUS
LABEL-WARNING,BREAK IN CAUTION 56040A 56040-1008 1 CAUS
LABEL-WARNING,EVAPO 56040B 56040-1121 1 CA
LABEL-WARNING,CARRIER 56040C 56040-1212 1
LABEL-WARNING,CARRIER 56040D 56040-1215 1 CN
