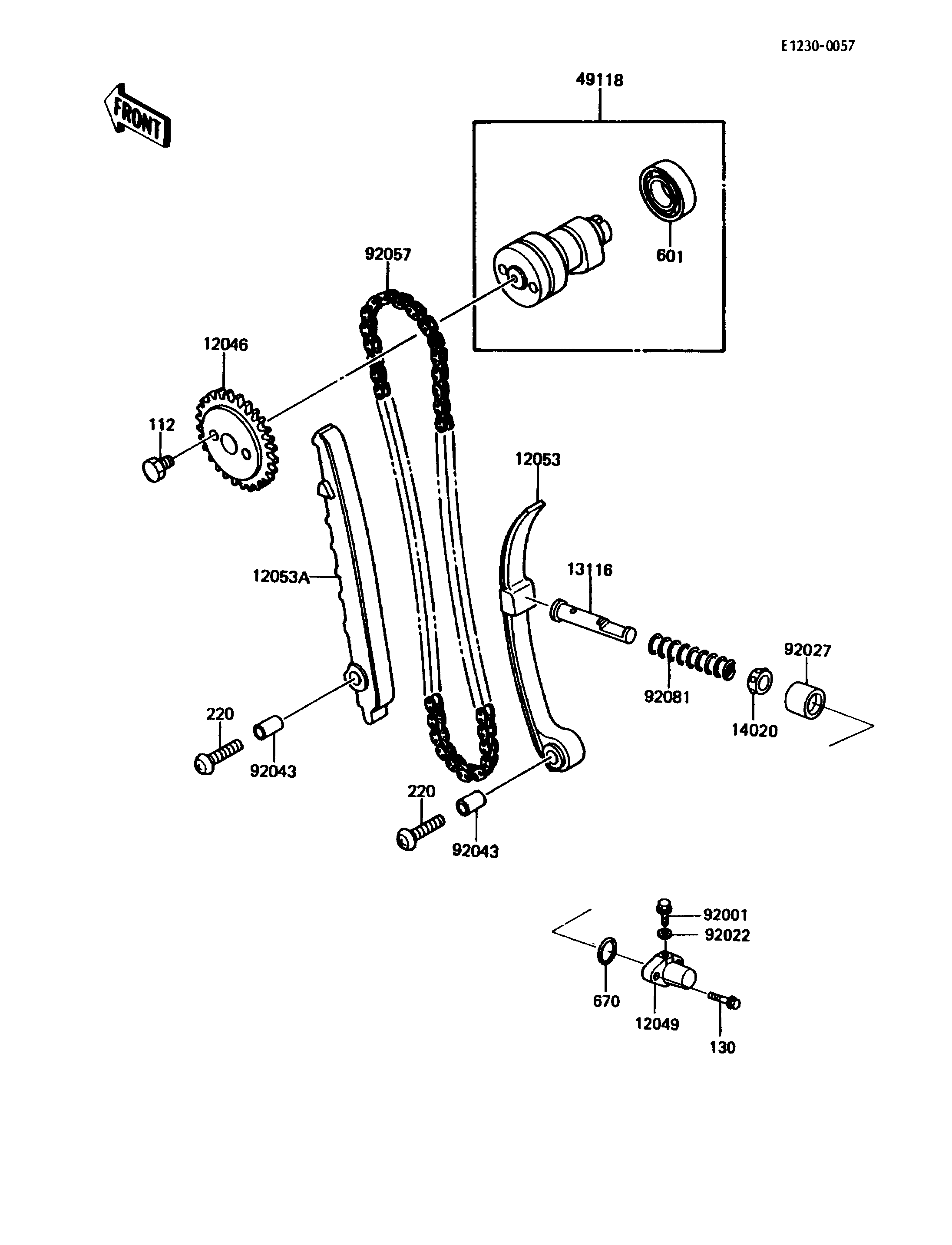

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,CAM CHAIN 12046 12046-1035 1
TENSIONER,CAM CHAIN 12049 12049-1055 1
GUIDE-CHAIN,RR 12053 12053-1082 1
GUIDE-CHAIN,FR 12053A 12053-1087 1
ROD-PUSH,TENSIONER 13116 13116-1019 1
RETAINER,TENSIONER 14020 14020-1054 1
CAMSHAFT-COMP 49118 49118-1005 1
BOLT,TENSIONER ADJUST 92001 92001-1155 1
WASHER,6.1X12X1 92022 92022-077 1
COLLAR,TENSIONER 92027 92027-1273 1
PIN,DOWEL,6.3X8X14 92043 92042-007 2
CHAIN,CAM,BF25H-88L 92057 92057-1116 1
SPRING,TENSIONER 92081 92081-1105 1
BOLT-UPSET 112 112G0610 2
BOLT-FLANGED 130 130Y0625 2
SCREW-PAN-CROS,6X25 220 220B0625 2
BEARING-BALL,#6002Z 601 601A6002Z 1
O RING,21MM 670 670B2021 1
