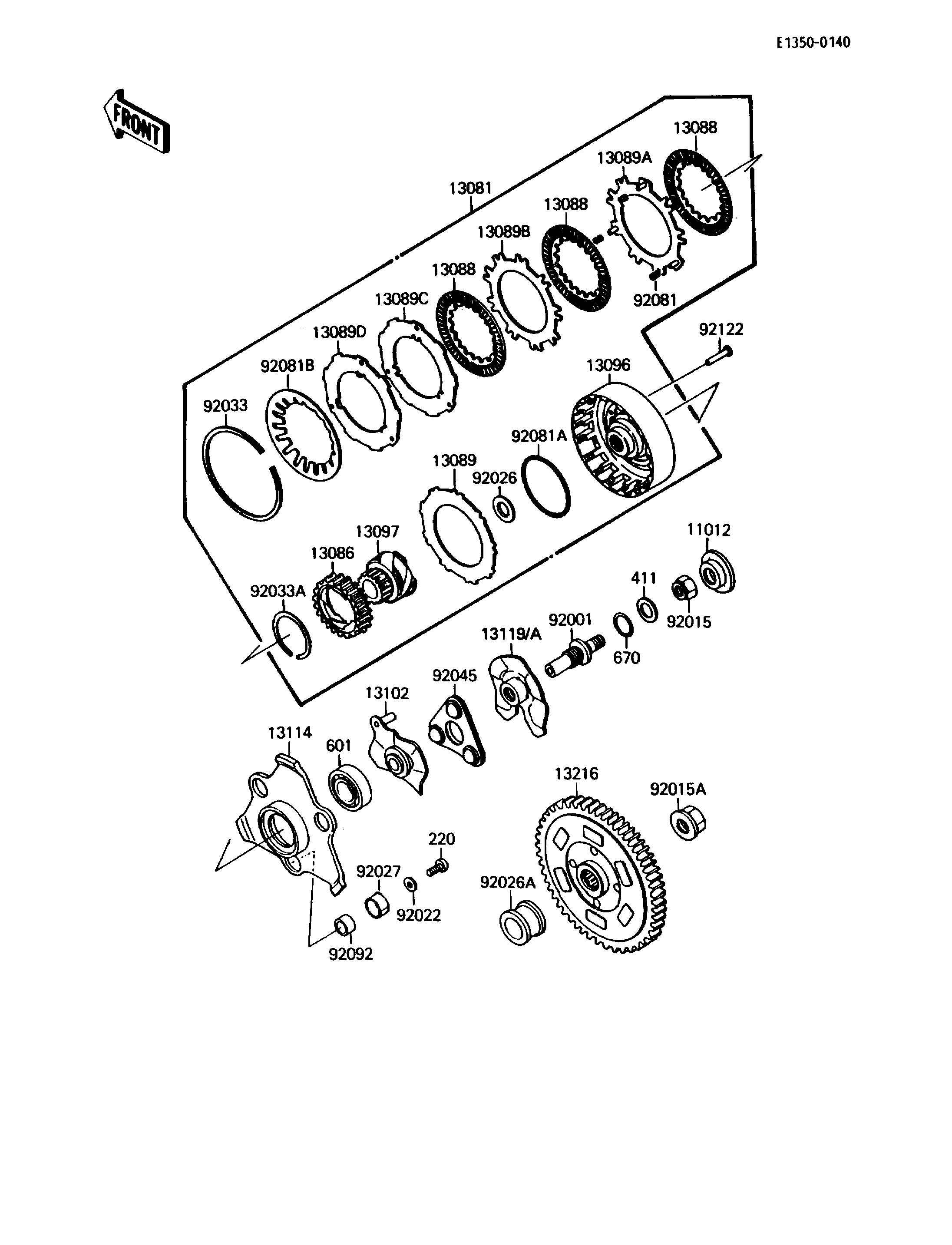

1987 Mojave 110E - Clutch

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CLUTCH COVER 11012 11012-1294 1
CLUTCH-ASSY 13081 13081-1097 1
WHEEL-CLUTCH 13086 13086-1011 1
PLATE-FRICTION 13088 13088-1017 3
PLATE-CLUTCH 13089 13089-1008 1
PLATE-CLUTCH 13089A 13089-1013 1
PLATE-CLUTCH 13089B 13089-1014 1
PLATE-CLUTCH 13089C 13089-1015 1
PLATE-CLUTCH 13089D 13089-1016 1
HOUSING-CLUTCH 13096 13096-1032 1
GEAR-PRIMARY SPUR,21T 13097 13097-1086 1
RELEASE-COMP-CLUTCH 13102 13102-1073 1
PUSHER-CLUTCH 13114 13114-1054 1
CAM-RELEASE,CLUTCH 13119 13119-1056 1
GEAR-COMP,CLUTCH 13216 13216-1040 1
BOLT,CLUTCH RELEASE 92001 92001-1906 1
NUT,8MM 92015 92015-1136 1
NUT,FLANGED,14MM 92015A 92015-1341 1
WASHER,5.2X17X1 92022 92022-1312 3
SPACER,18.5X30X1.6 92026 92026-1082 1
SPACER,L=19 92026A 92026-1130 1
COLLAR,14X15X7.5 92027 92027-1442 3
RING-SNAP 92033 92033-1059 1
RING-SNAP,46MM 92033A 92033-1101 1
BEARING-BALL,CLUTCH RELEASE 92045 92045-1119 1
SPRING,CLUTCH PLATE 92081 92081-1527 3
SPRING,COIL 92081A 92081-1566 1
SPRING,CONICAL 92081B 92081-1629 1
BUSHING-RUBBER,10.5X14X7.5 92092 92092-1017 3
ROLLER,4MM 92122 92122-1034 3
SCREW-PAN-CROS 220 220B0512 3
WASHER-PLAIN,8MM 411 411B0800 1
BEARING-BALL,#6200 601 601A6200Z 1
O RING,8MM 670 670B1508 1
