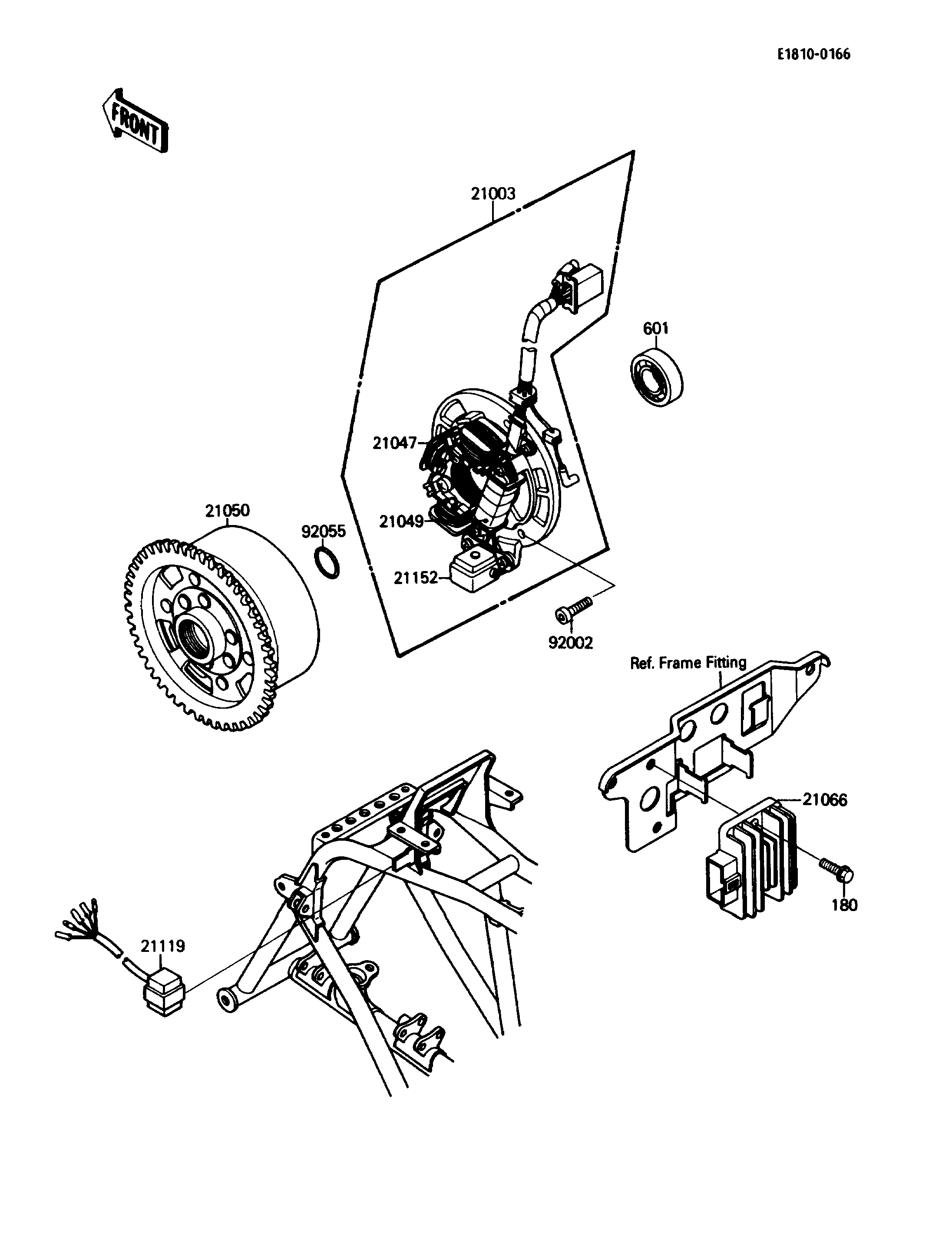

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-1157 1
COIL-LIGHTING 21047 21047-1055 1
COIL-EXCITING 21049 21049-1017 1
FLYWHEEL 21050 21050-1125 1
REGULATOR-VOLTAGE 21066 21066-1052 1
IGNITER 21119 21119-1112 1
PICKUP-GENERATOR 21152 21152-1001 1
BOLT,SOCKET,5X18 92002 92002-1805 3
RING-O,16.8X2.4 92055 92055-1258 1
BOLT-UPSET-WS 180 180D0618 2
BEARING-BALL,#6003 601 601A6003 1
