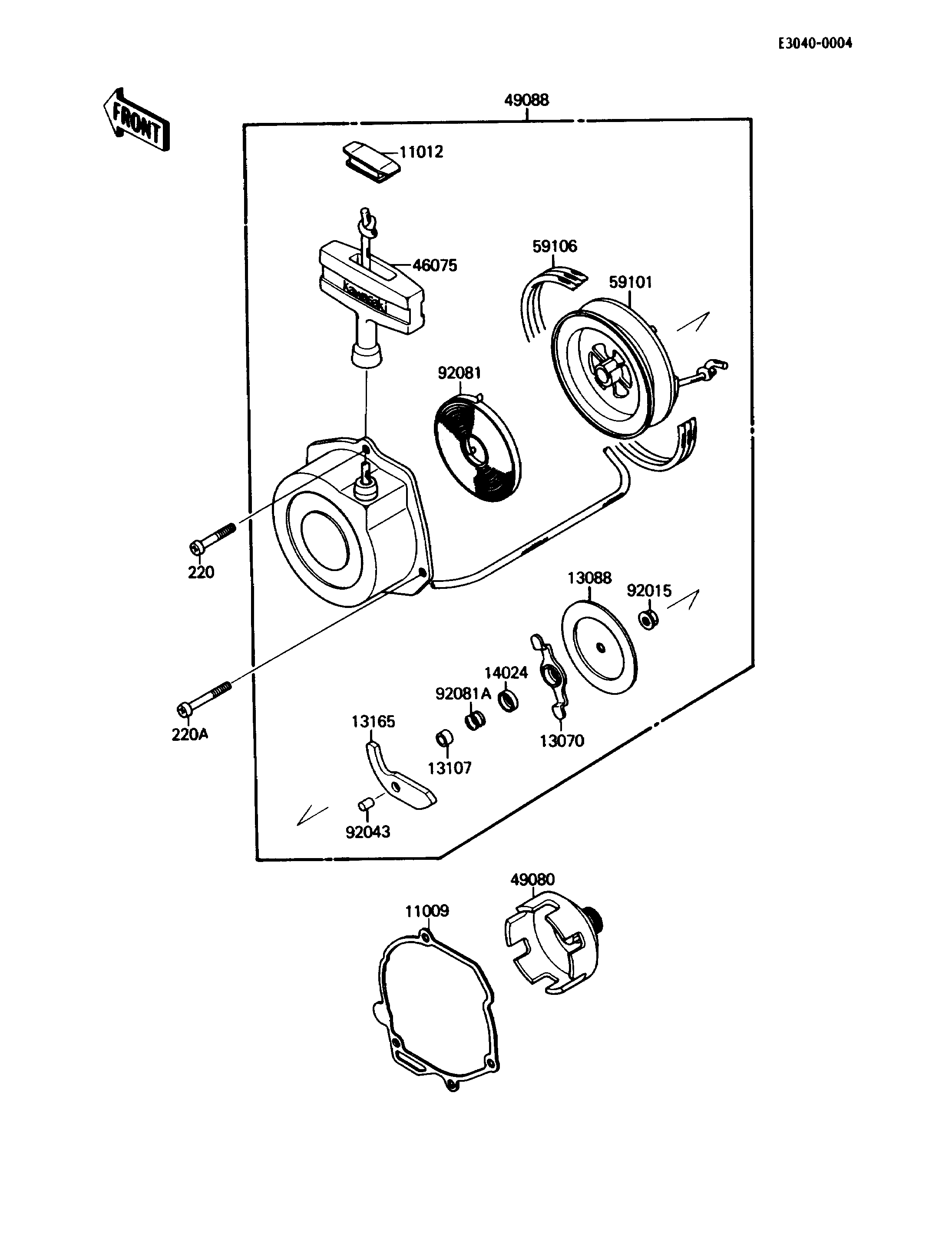

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RECOIL STARTER 11009 11009-1598 1
CAP,RECOIL GRIP 11012 11012-1420 1
GUIDE,RECOIL 13070 13070-1123 1
PLATE-FRICTION,RECOIL 13088 13088-1067 1
SHAFT,RECOIL 13107 13107-1129 1
PAWL,RECOIL 13165 13165-1110 1
COVER,RECOIL 14024 14025-1966 1
GRIP,RECOIL 46075 46075-1073 1
PULLEY-STARTING 49080 49080-1053 1
STARTER-RECOIL 49088 49088-1053 1
REEL 59101 59101-1108 1
ROPE,RECOIL 59106 59106-1102 1
NUT,6MM 92015 92015-1464 1
PIN,RECOIL 92043 92043-1259 1
SPRING,RECOIL 92081 92081-1772 1
SPRING 92081A 92081-1773 1
SCREW-PAN-CROS 220 220X0650 3
SCREW-PAN-CROS 220A 220X0660 1
