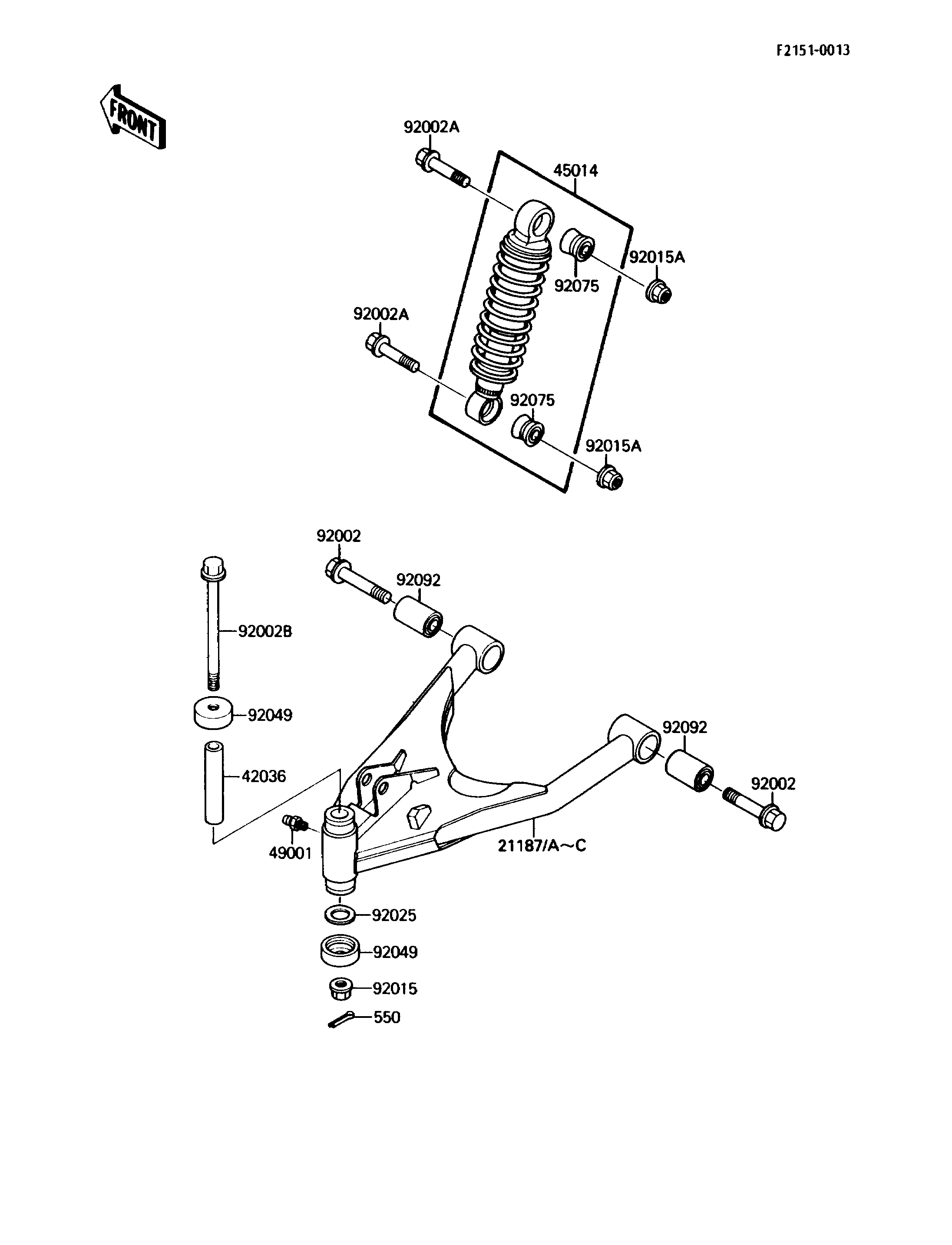

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-ASSY,SUSPENSION,LH 21187B 21187-1069 1
ARM-ASSY,SUSPENSION,RH 21187C 21187-1070 1
SLEEVE,10X17X85.6 42036 42036-1190 2
SHOCKABSORBER 45014 45014-1348 2
NIPPLE-GREASE 49001 49001-1051 2
BOLT,FLANGED,12X60 92002 92002-1456 4
BOLT,FLANGED,10X42 92002A 92002-1545 4
BOLT,FLANGED,10X130 92002B 92002-1776 2
NUT,FLANGED,10MM 92015 92015-1335 2
NUT,LOCK,10MM 92015A 92015-1597 4
SHIM,18X28.5X0.3 92025 92025-1678 2
SEAL-OIL,KNUCKLE 92049 92049-1198 4
DAMPER,SHOCKABSORBER 92075 92075-1897 4
BUSHING-RUBBER 92092 92092-005 4
PIN-COTTER,2.0X15 550 550D2015 2
