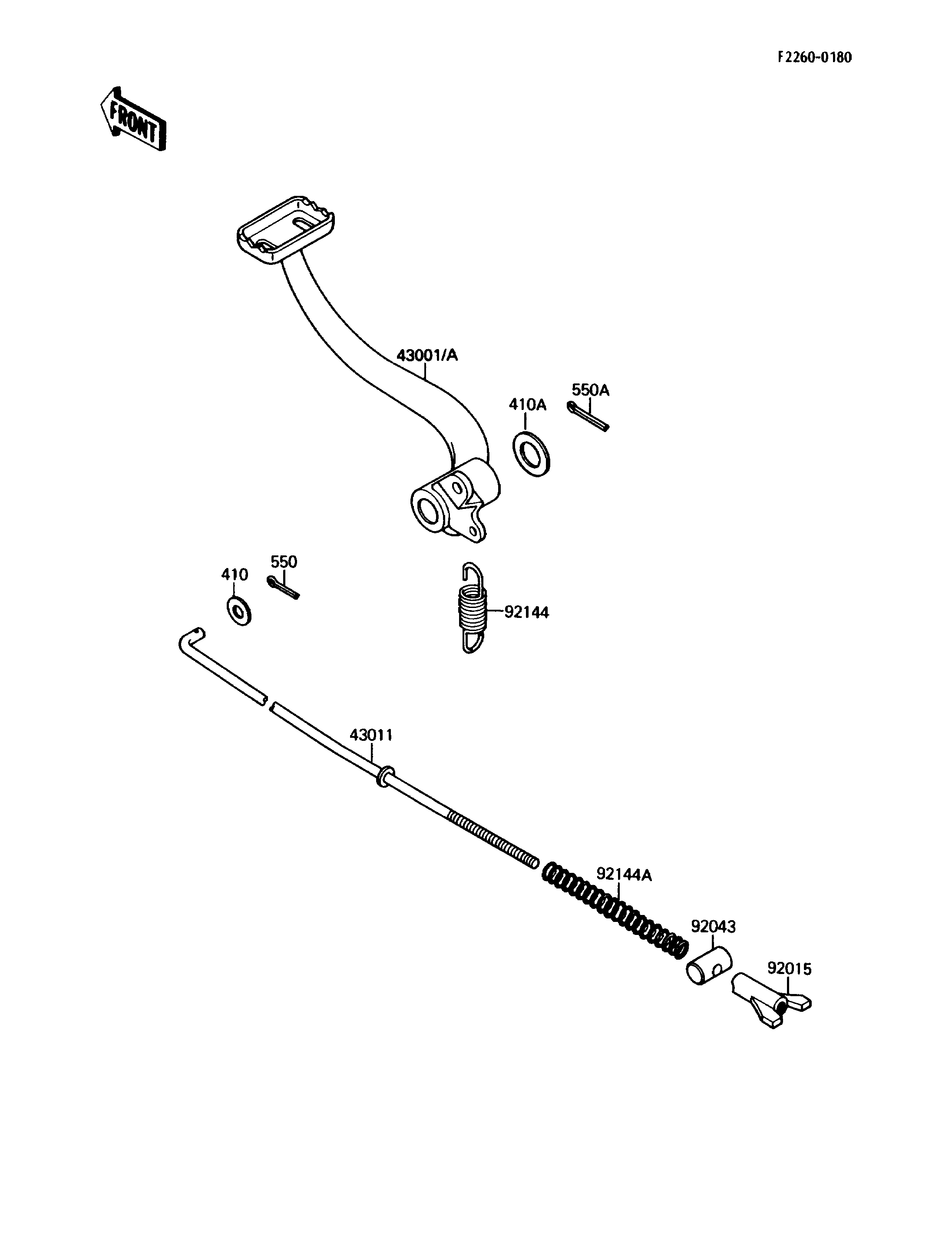

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1212 1
ROD-BRAKE 43011 43011-1132 1
NUT,WING,6MM 92015 92015-1497 1
PIN,12X20 92043 92043-1280 1
SPRING,BRAKE PEDAL RETURN 92144 92144-1053 1
SPRING,BRAKE ROD 92144A 92144-1122 1
WASHER-PLAIN-SMALL,6MM 410 410B0600 1
WASHER-PLAIN-SMALL,14MM 410A 410B1400 1
PIN-COTTER,2.0X15 550 550D2015 1
PIN-COTTER,2.5X25 550A 550D2525 1
