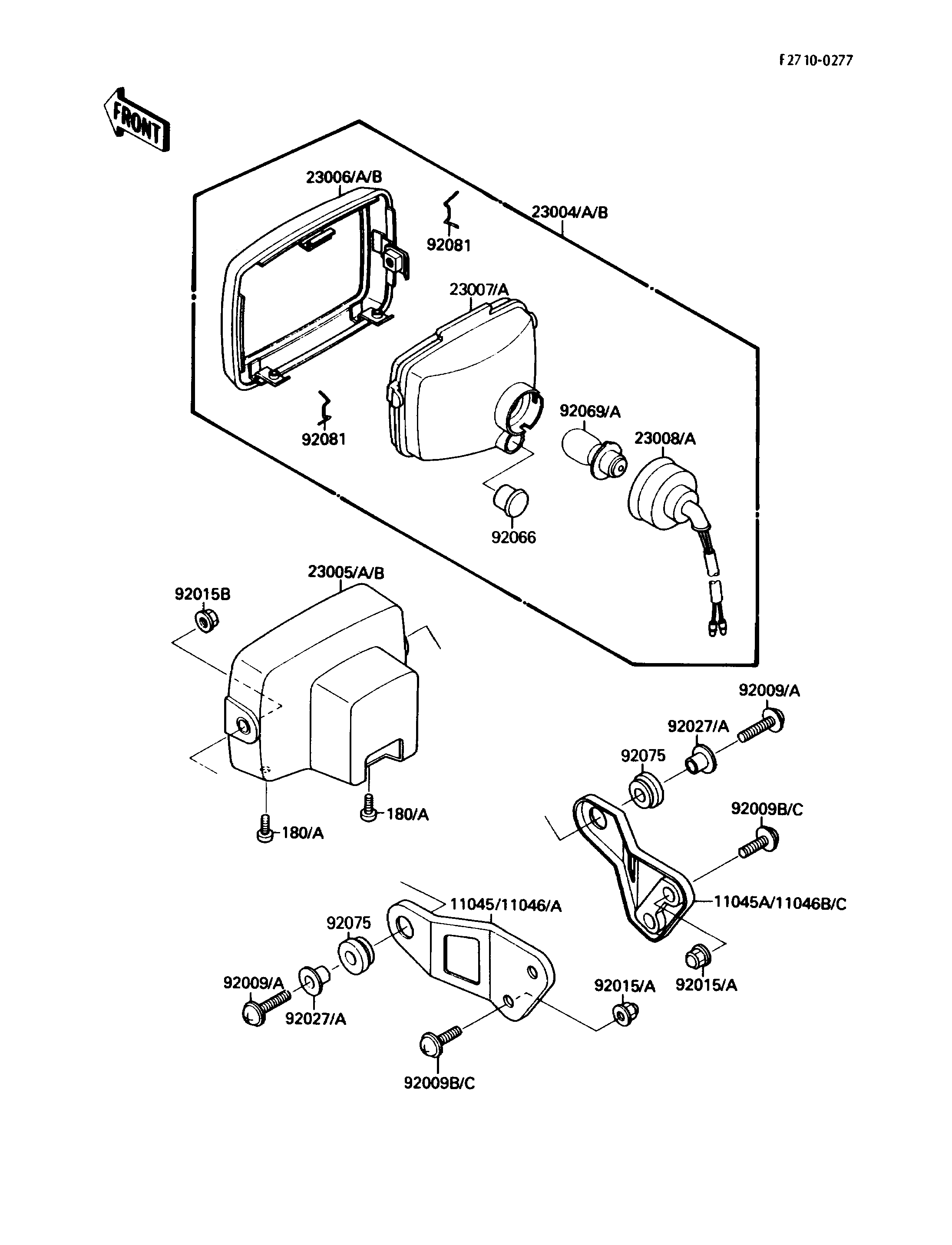

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP,LH 11045 11045-1133 1
BRACKET,HEAD LAMP,RH 11045A 11045-1213 1
LAMP-HEAD 23004 23004-1204 1
BODY-COMP-HEAD LAMP,BLACK 23005 23005-1018-6Z 1
RIM-LAMP 23006 23006-1058 1
LENS-COMP,HEAD LAMP 23007 23007-1158 1
SOCKET-ASSY,HEAD LAMP 23008 23008-1323 1
SCREW,6X28,BLACK 92009A 92009-1400 2
SCREW,6X25 92009B 92009-1465 4
NUT,CAP,6MM,BLACK 92015A 92015-1170 4
NUT,FLANGED,6MM 92015B 92015-1367 1
COLLAR 92027 92027-1767 2
PLUG,HEAD LAMP 92066 92066-1081 1
BULB,12V 25W 92069A 92069-1067 1
DAMPER 92075 92075-277 2
SPRING 92081 92081-1421 2
BOLT-UPSET-WS 180A 180C0512 2
