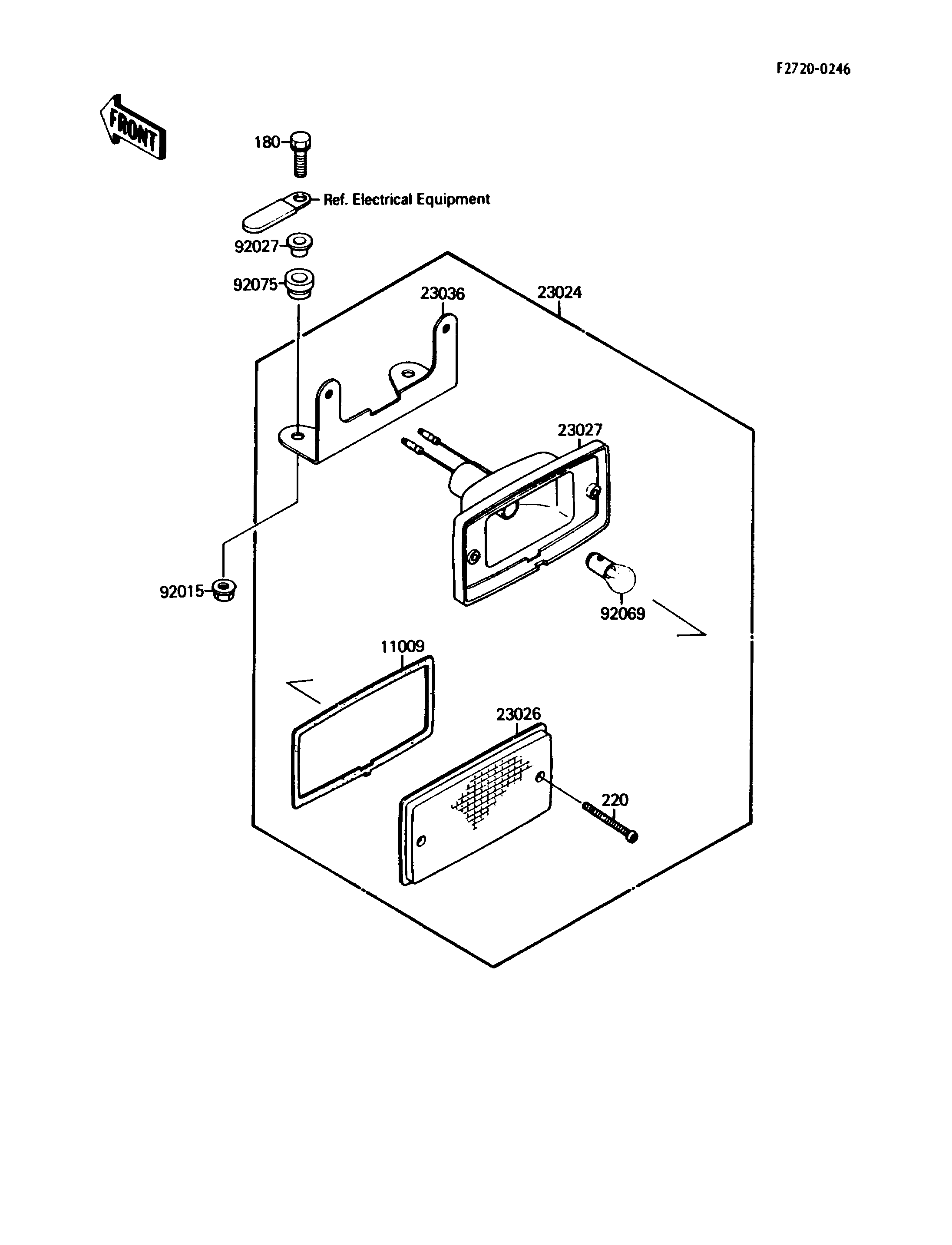

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL LAMP 11009 11009-4004 1
LAMP-ASSY-TAIL 23024 23024-1112 1
LENS,TAIL LAMP 23026 23026-4003 1
BODY-COMP-TAIL LAMP 23027 23027-4001 1
BRACKET-TAIL LAMP 23036 23036-4004 1
NUT,FLANGED,6MM 92015 92015-1193 2
COLLAR,L=11.1 92027 92027-194 2
BULB,12V 8W 92069 92069-1012 1
DAMPER 92075 92075-208 2
BOLT-UPSET-WS 180 180C0622 2
SCREW-PAN-CROS 220 220B0420 2
