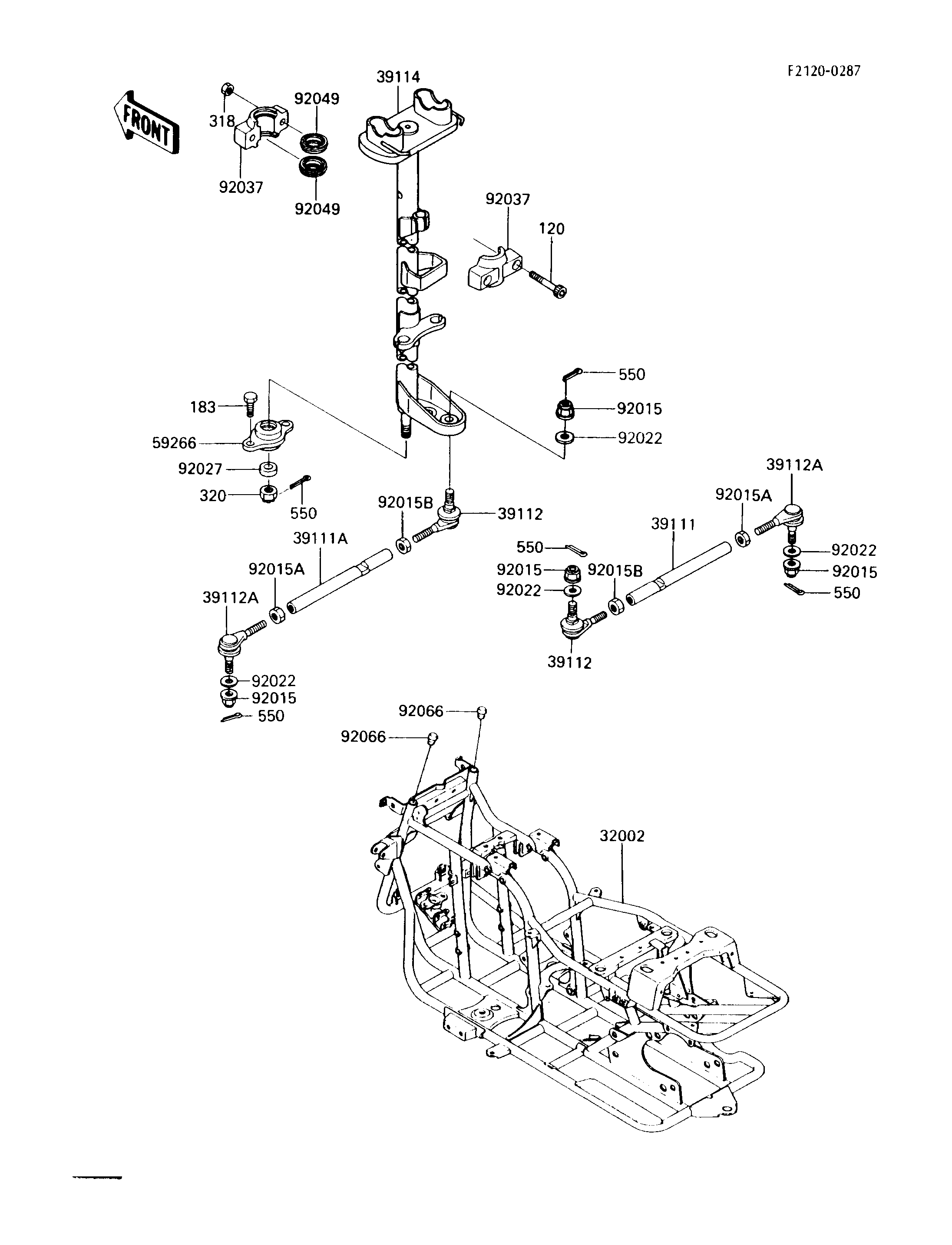

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FRAME-COMP | 32002 | 32002-1857 | 1 | ||
ROD-TIE,RH | 39111 | 39111-1054 | 1 | ||
ROD-TIE,LH | 39111A | 39111-1061 | 1 | ||
RODEND-TIE | 39112 | 39112-1051 | 2 | ||
RODEND-TIE | 39112A | 39112-1052 | 2 | ||
SHAFT-COMP-STRG | 39114 | 39114-1053 | 1 | ||
JOINT-BALL | 59266 | 59266-1066 | 1 | ||
NUT,LOCK,FLANGED,10MM | 92015 | 92015-1338 | 4 | ||
NUT,LOCK,10MM | 92015A | 92015-1460 | 2 | ||
NUT,LOCK,10MM | 92015B | 92015-1494 | 2 | ||
WASHER,10.2X24X1 | 92022 | 92022-137 | 4 | ||
COLLAR,10X21.3X7 | 92027 | 92027-1817 | 1 | ||
CLAMP,STEERING SHAFT | 92037 | 92037-1572 | 2 | ||
SEAL-OIL,MY25X33X8 | 92049 | 92049-1199 | 2 | ||
PLUG | 92066 | 92066-1220 | 2 | ||
BOLT-SOCKET,8X45 | 120 | 120P0845 | 2 | ||
BOLT-UPSET-WS-SMALL | 183 | 183G0822 | 2 | ||
NUT-HEX-SMALL,8MM | 318 | 318B0800 | 2 | ||
NUT-CASTLE | 320 | 320H1000 | 1 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 5 |
FRAME-COMP | |
REF # | 32002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-TIE,RH | |
REF # | 39111 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-TIE,LH | |
REF # | 39111A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RODEND-TIE | |
REF # | 39112 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RODEND-TIE | |
REF # | 39112A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHAFT-COMP-STRG | |
REF # | 39114 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-BALL | |
REF # | 59266 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,10.2X24X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR,10X21.3X7 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,STEERING SHAFT | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,MY25X33X8 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-SOCKET,8X45 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WS-SMALL | |
REF # | 183 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-HEX-SMALL,8MM | |
REF # | 318 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-CASTLE | |
REF # | 320 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-COTTER,2.0X15 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
