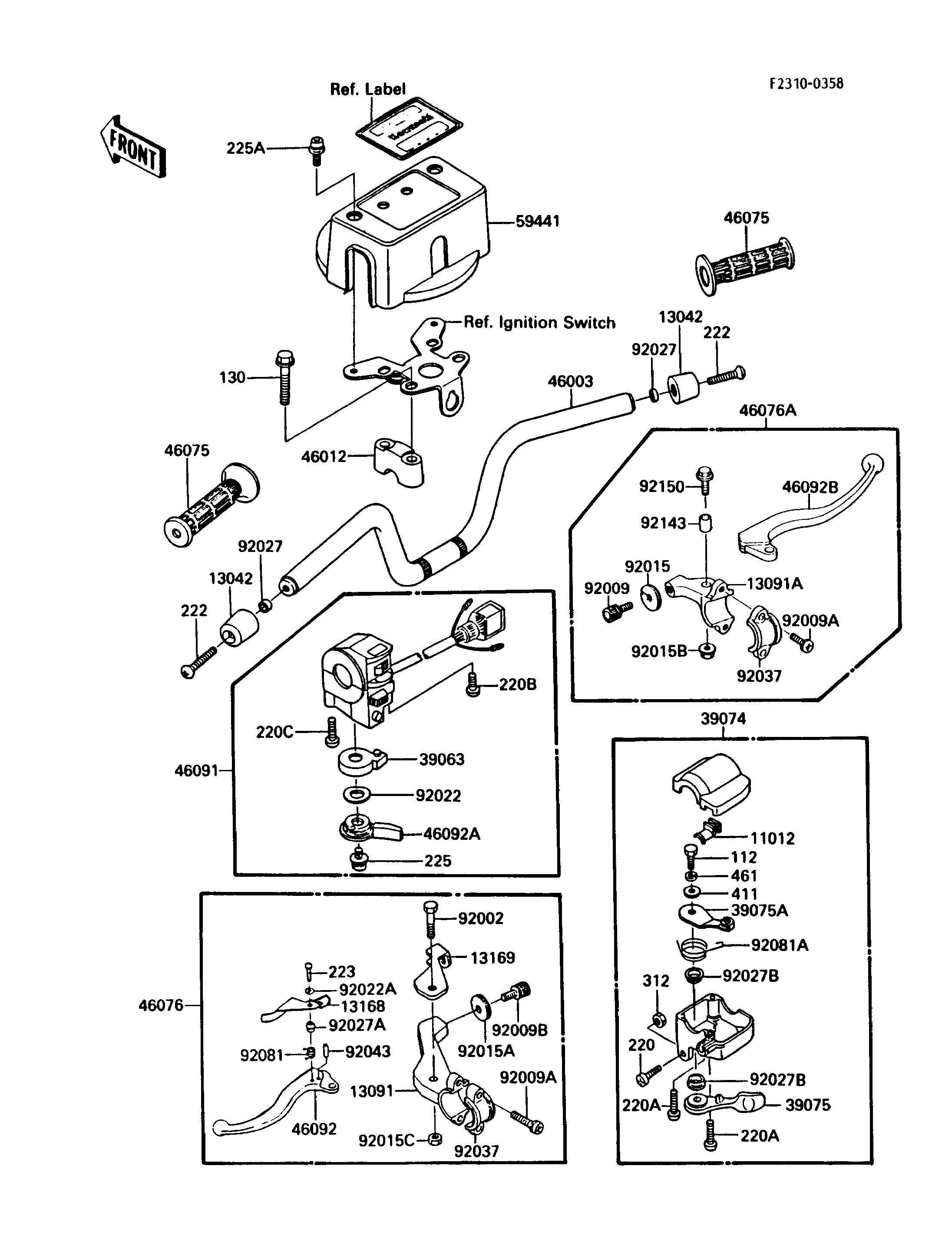

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-1425 | 1 | ||
WEIGHT,HANDLE | 13042 | 13042-1060 | 2 | ||
HOLDER | 13091 | 13091-1349 | 1 | ||
HOLDER,BRAKE LEVER,RH | 13091A | 13091-1541 | 1 | ||
LEVER,LOCK | 13168 | 13168-1224 | 1 | ||
PLATE,LOCK | 13169 | 13169-1398 | 1 | ||
HOUSING-CONTROL,STARTER CABLE | 39063 | 39063-1114 | 1 | ||
LEVER-ASSY-THROTTLE | 39074 | 39074-1052 | 1 | ||
LEVER-THROTTLE | 39075 | 39075-1053 | 1 | ||
LEVER-THROTTLE,ARM | 39075A | 39075-1054 | 1 | ||
HANDLE | 46003 | 46003-1218 | 1 | ||
HOLDER-HANDLE,UPP | 46012 | 46012-008 | 2 | ||
GRIP | 46075 | 46075-1056 | 2 | ||
LEVER-ASSY-GRIP,LH | 46076 | 46076-1124 | 1 | ||
LEVER-ASSY-GRIP,RH | 46076A | 46076-1157 | 1 | ||
HOUSING-ASSY-CONTROL,LH | 46091 | 46091-1390 | 1 | ||
LEVER-GRIP | 46092 | 46092-1107 | 1 | ||
LEVER-GRIP,STARTER | 46092A | 46092-1116 | 1 | ||
LEVER-GRIP,FRONT BRAKE | 46092B | 46092-1133 | 1 | ||
COVER-HANDLE | 59441 | 59441-1057 | 1 | ||
BOLT,5MM | 92002 | 92002-1447 | 1 | ||
SCREW,CABLE ADJUST,8MM | 92009 | 46055-003 | 1 | ||
SCREW,5X18 | 92009A | 92009-1367 | 4 | ||
SCREW,CABLE ADJUST,8MM | 92009B | 92009-1435 | 1 | ||
NUT,CABLE ADJUST LOCK | 92015 | 46056-005 | 1 | ||
NUT,CABLE ADJUST LOCK | 92015A | 92015-1596 | 1 | ||
NUT,LOCK,5MM | 92015B | 92015-1719 | 1 | ||
NUT,LOCK,5MM | 92015C | 92019-014 | 1 | ||
WASHER,WAVE | 92022 | 92022-1635 | 1 | ||
WASHER,4MM | 92022A | 92022-1647 | 1 | ||
COLLAR,6.3X10X4.8 | 92027 | 92027-1066 | 2 | ||
COLLAR,RETURN SPRING | 92027A | 92027-1336 | 1 | ||
COLLAR | 92027B | 92027-1982 | 2 | ||
CLAMP,LEVER HOLDER | 92037 | 92037-1621 | 2 | ||
PIN,SPRING,3X16 | 92043 | 92043-1268 | 1 | ||
SPRING,LOCK RETURN | 92081 | 92081-1358 | 1 | ||
SPRING | 92081A | 92081-1685 | 1 | ||
COLLAR | 92143 | 92143-1216 | 1 | ||
BOLT,LEVER SET | 92150 | 92150-1102 | 1 | ||
BOLT-UPSET | 112 | 112D0614 | 1 | ||
BOLT-FLANGED | 130 | 130C0860 | 4 | ||
SCREW-PAN-CROS | 220 | 220C0525 | 1 | ||
SCREW-PAN-CROS | 220A | 220C0530 | 2 | ||
SCREW-PAN-CROS | 220B | 220C0535 | 1 | ||
SCREW-PAN-CROS | 220C | 220C0545 | 1 | ||
SCREW-CSK-RD-CROS | 222 | 222C0640 | 2 | ||
SCREW-PAN-WS-CROS | 223 | 223D0420 | 1 | ||
SCREW-PAN-WSP-CROS | 225 | 225C0512 | 1 | ||
SCREW-PAN-WSP-CROS,6X20 | 225A | 225C0620 | 2 | ||
NUT-HEX | 312 | 312C0500 | 1 | ||
WASHER-PLAIN,6MM | 411 | 411E0600 | 1 | ||
WASHER-SPRING | 461 | 461L0600 | 1 |
