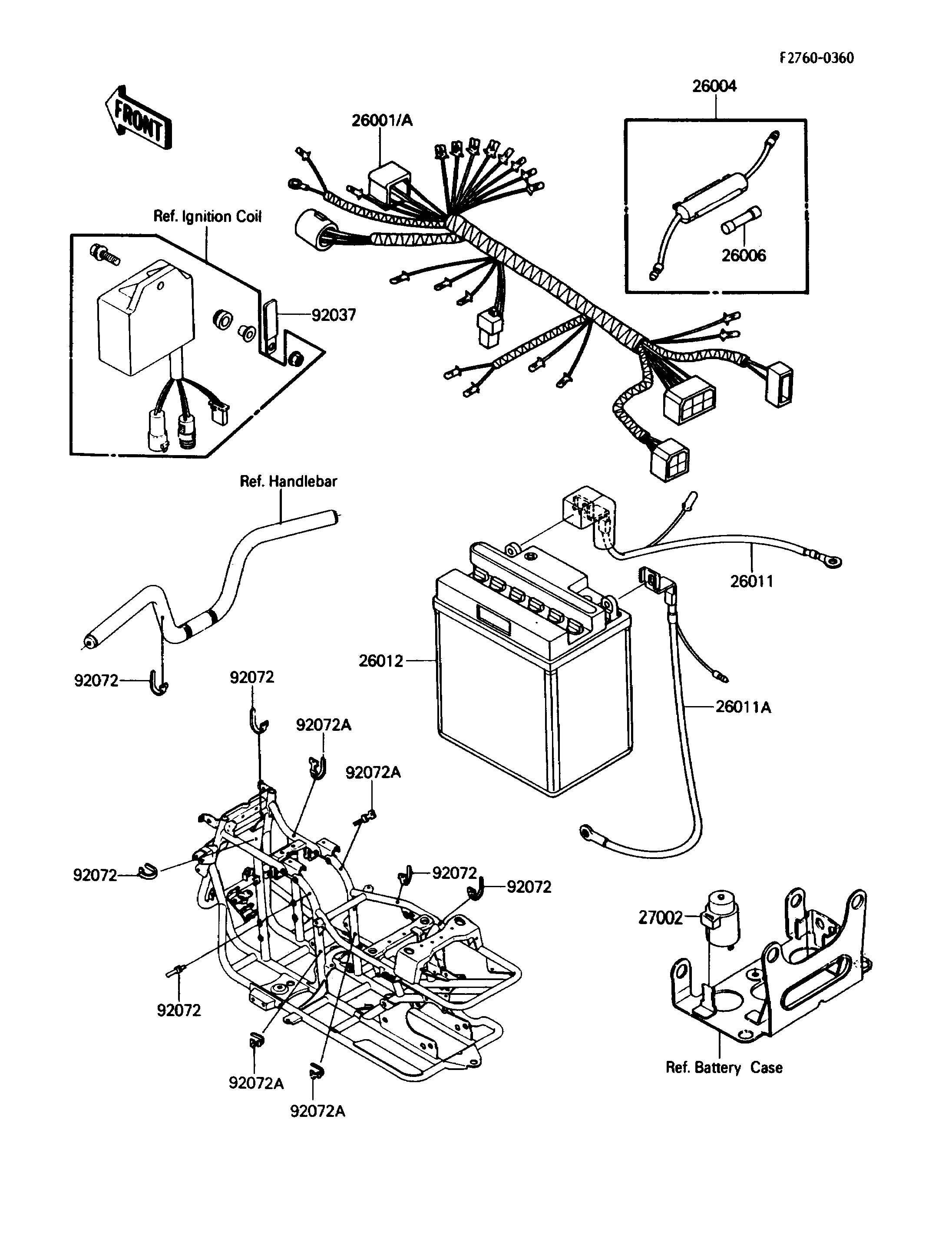

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HARNESS,MAIN 26001 26001-1752 1
FUSE-ASSY 26004 26004-013 1
FUSE,20A,L=25 26006 26006-005 1
WIRE-LEAD,BATTERY(+) 26011 26011-1297 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1298 1
BATTERY,12V 11AH,YB10L-B 26012 26012-1171 1
RELAY-ASSY 27002 27002-1051 1
CLAMP,WIRING HARNESS 92037 92037-1069 1
BAND,L=149 92072 92072-031 7
BAND,L=186 92072A 92072-056 4
