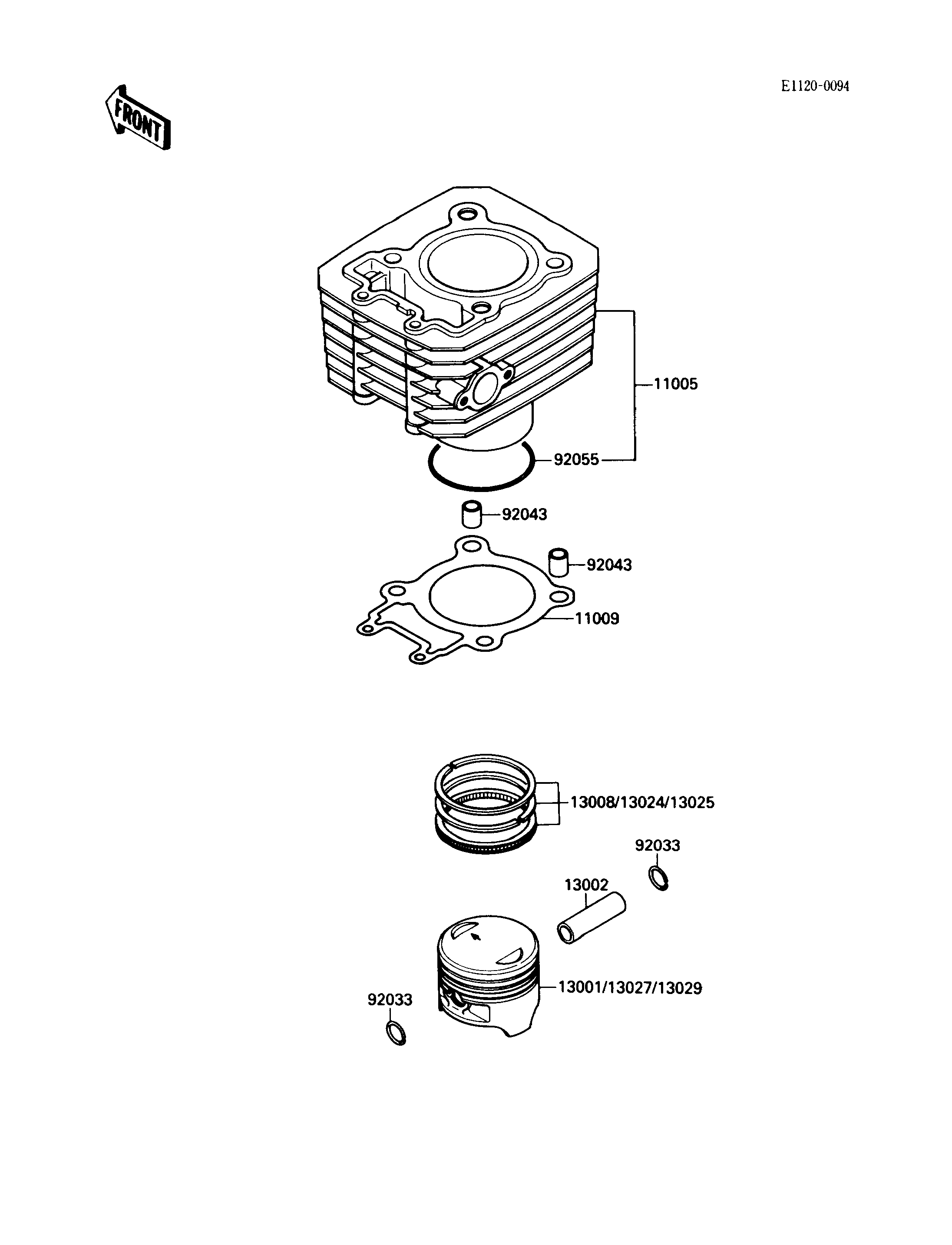

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-1524 1
GASKET,CYLINDER BASE 11009 11009-1670 1
PISTON-ENGINE,STD 13001 13001-1282 1
PIN-PISTON 13002 13002-1004 1
RING-SET-PISTON,STD 13008 13008-1090 1
RING-SNAP,PISTON PIN 92033 92033-1161 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O,68.6MM 92055 92055-1178 1
RING-SET-PISTON LL,O/S 1.00 13024 13024-1075 1
RING-SET-PISTON L,O/S 0.50 13025 13025-1085 1
PISTON-ENGINE LL,O/S 1.00 13027 13027-1154 1
PISTON-ENGINE L,O/S 0.50 13029 13029-1177 1
