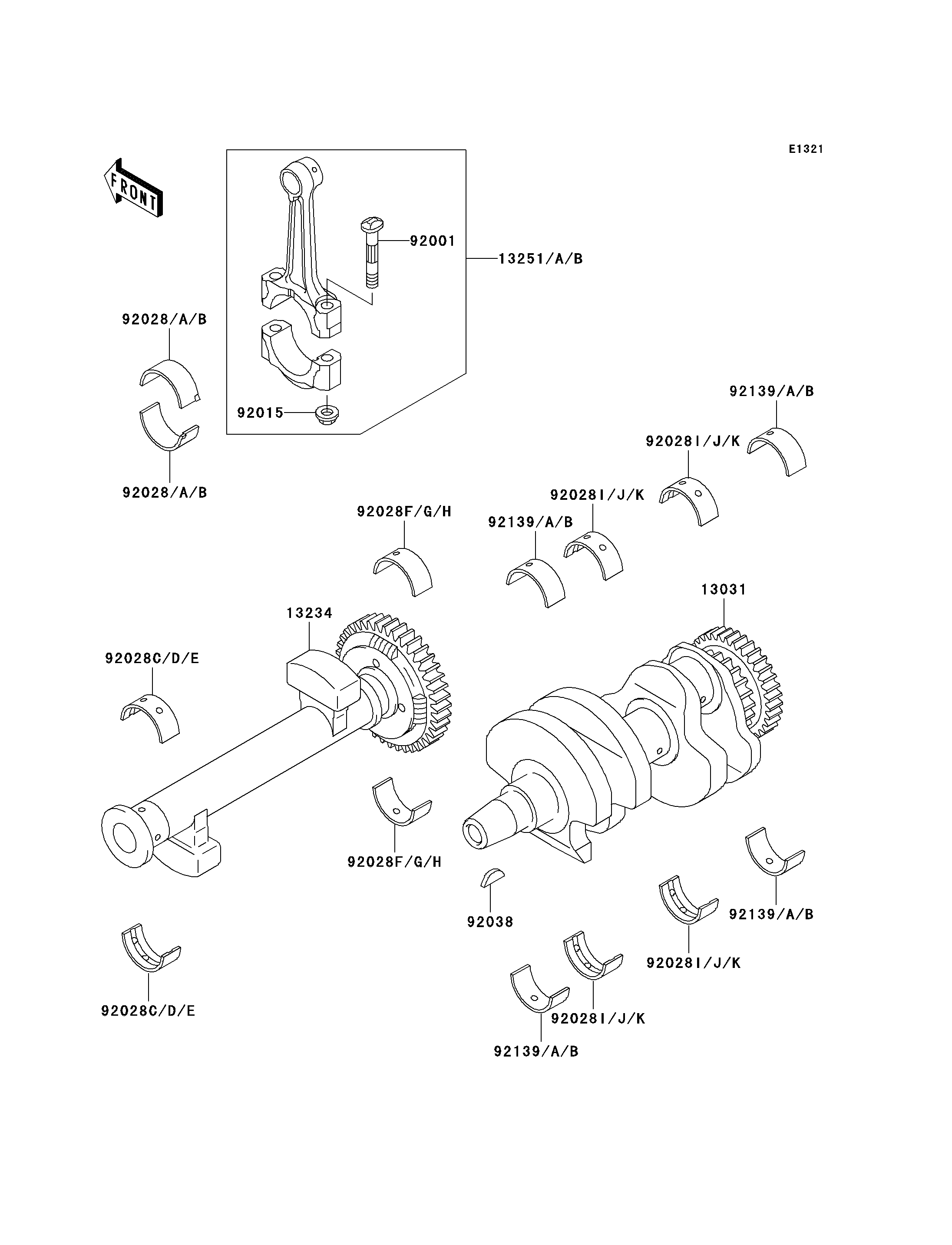

2008 Ninja® 500R - Crankshaft

DOWNLOAD PDF
SELECT A NEW PART
13031
13234
13251
13251A
13251B
92001
92015
92028
92028
92028A
92028A
92028B
92028B
92028C
92028C
92028D
92028D
92028E
92028E
92028F
92028F
92028G
92028G
92028H
92028H
92028I
92028I
92028I
92028I
92028J
92028J
92028J
92028J
92028K
92028K
92028K
92028K
92038
92139
92139
92139
92139
92139A
92139A
92139A
92139A
92139B
92139B
92139B
92139B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKSHAFT-COMP 13031 13031-1303 1
SHAFT-COMP,BALANCER 13234 13234-1071 1
ROD-ASSY-CONNECTING,H 13251 13251-1067-HH 2
ROD-ASSY-CONNECTING,I 13251A 13251-1067-II 2
ROD-ASSY-CONNECTING,J 13251B 13251-1067-JJ 2
BOLT,CONNECTING ROD,8MM 92001 92001-1887 4
NUT,FLANGED,8MM 92015 92015-1311 4
BUSHING,CONNECTING ROD,BLUE 92028 92028-1348 4
BUSHING,CONNECTING ROD,BLACK 92028A 92028-1349 AR
BUSHING,CONNECTING ROD,BROWN 92028B 92028-1350 AR
BUSHING,BALANCER,LH,BLUE 92028C 92028-1495 2
BUSHING,BALANCER,LH,BLACK 92028D 92028-1496 AR
BUSHING,BALANCER,LH,BROWN 92028E 92028-1497 AR
BUSHING,BALANCER,RH,BLUE 92028F 92028-1690 2
BUSHING,BALANCER,RH,BLACK 92028G 92028-1691 AR
BUSHING,BALANCER,RH,BROWN 92028H 92028-1692 AR
BUSHING,CRANKSHAFT,BLUE 92028I 92028-1917 4
BUSHING,CRANKSHAFT,BLACK 92028J 92028-1918 AR
BUSHING,CRANKSHAFT,BROWN 92028K 92028-1919 AR
KEY,WOODRUFF 92038 92038-001 1
BUSHING,CRANKSHAFT,BLUE 92139 92139-1068 4
BUSHING,CRANKSHAFT,BLACK 92139A 92139-1069 AR
BUSHING,CRANKSHAFT,BROWN 92139B 92139-1070 AR
