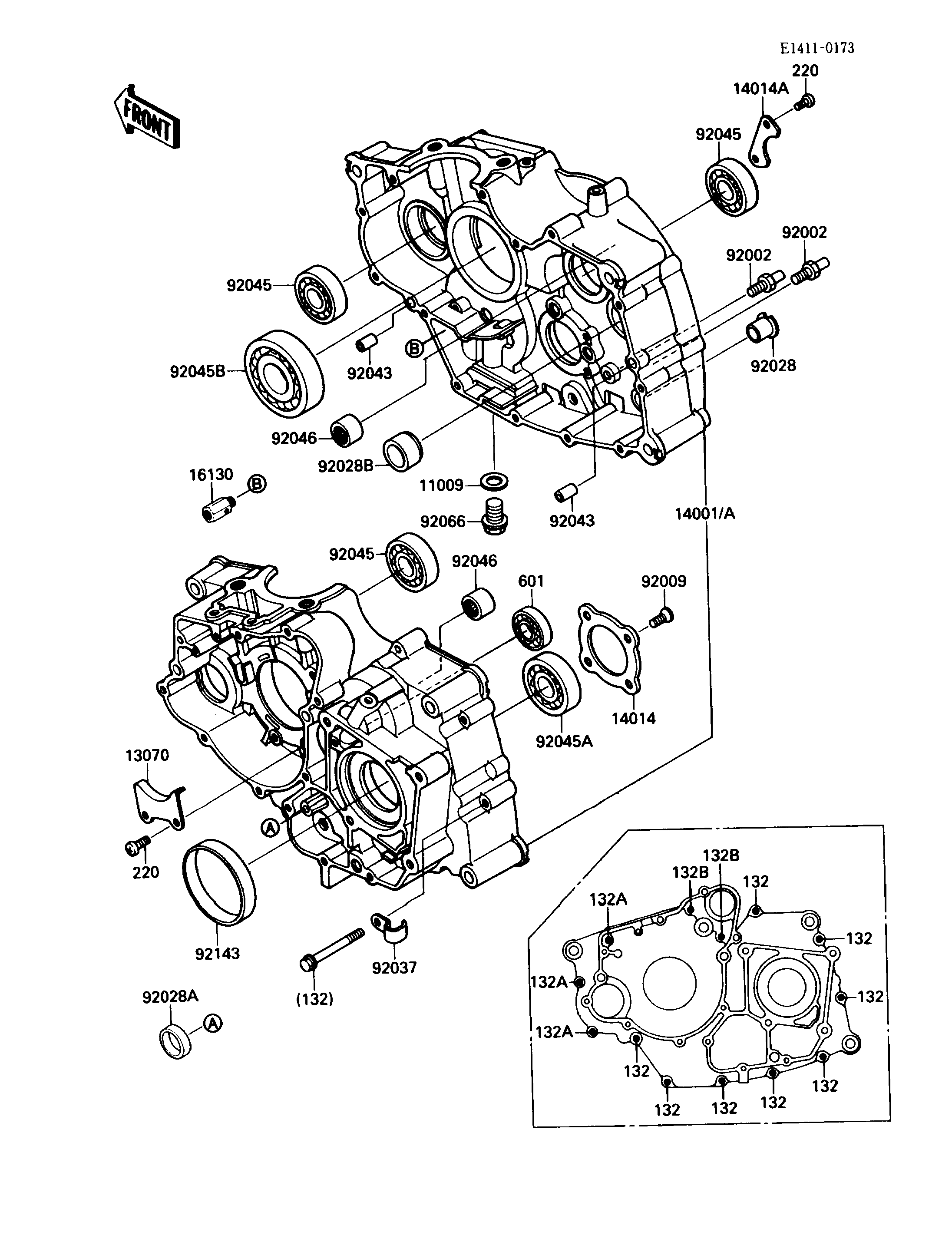

1988 Bayou 220 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
132
132
132
132
132
132
132
132
132A
132A
132A
132B
132B
220
220
601
11009
13070
14001
14014
14014A
92002
92002
92009
92028
92028A
92028B
92037
92043
92043
92045
92045
92045
92045A
92045B
92046
92046
92066
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132Y0640 8
BOLT-FLANGED-SMALL 132A 132Y0660 3
BOLT-FLANGED-SMALL 132B 132Y0675 2
SCREW-PAN-CROS,6X14 220 220B0614 4
BEARING-BALL 601 601A6202Z 1
GASKET,12X22X2,DRAIN PLUG 11009 92065-097 1
GUIDE,CAM CHAIN 13070 13070-1176 1
SET-CRANKCASE 14001 14001-5238 1
PLATE-POSITION 14014 14014-1086 1
PLATE-POSITION 14014A 14014-1088 1
BOLT,RETURN SPRING 92002 92002-1408 2
SCREW,6X14 92009 92009-1349 4
BUSHING 92028 92028-1386 1
BUSHING,14X16X15 92028A 92028-1505 1
BUSHING 92028B 92028-1506 1
CLAMP 92037 92037-1939 1
PIN,6.2X8X14 92043 92043-1263 2
BEARING-BALL,#6204 92045 92045-1032 3
BEARING-BALL,TMB304CCM 92045A 92045-1142 1
BEARING-BALL 92045B 92045-1172 1
BEARING-NEEDLE,HMK1515B 92046 92046-060 2
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
COLLAR,66X70X11 92143 92143-1120 1
