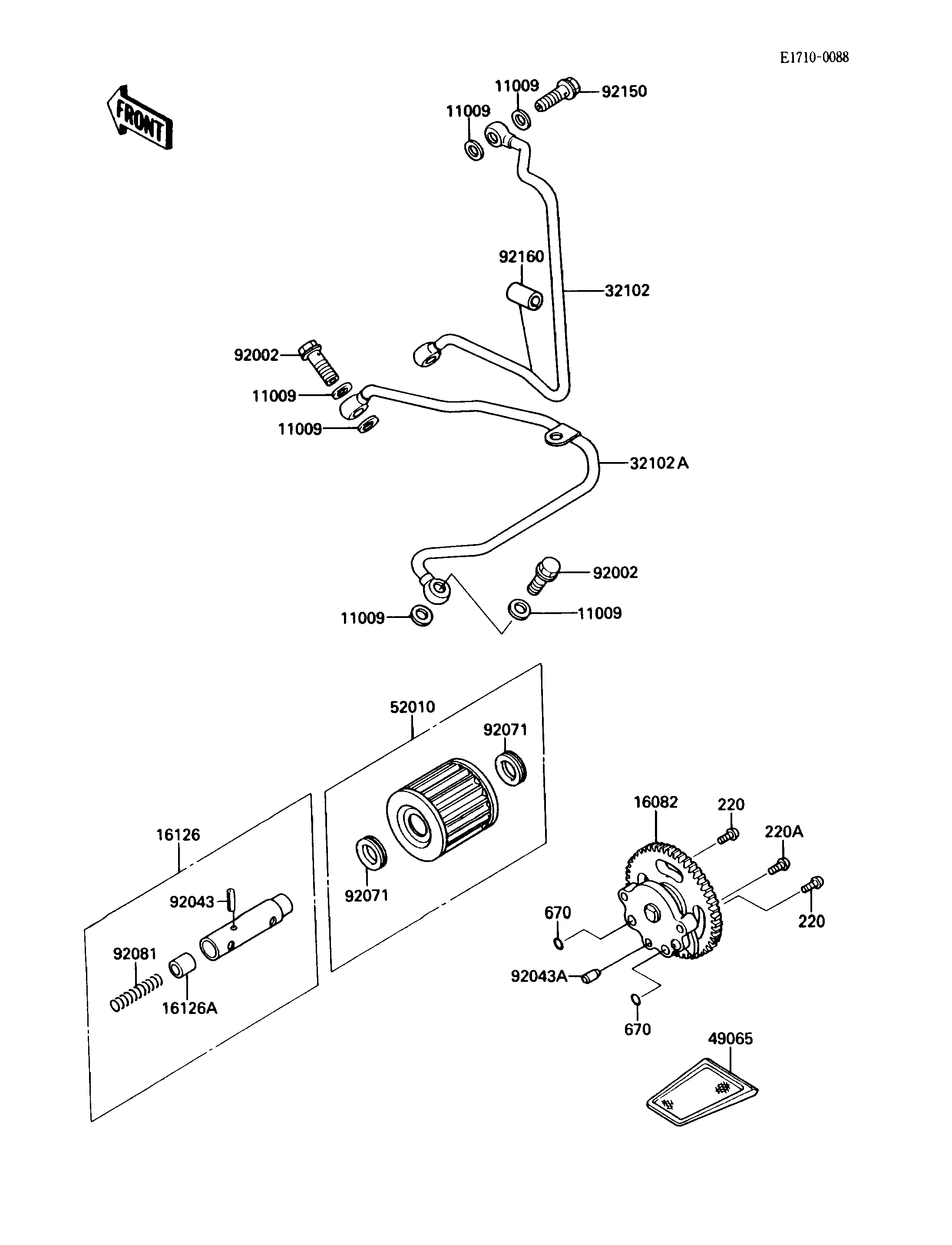

1988 Bayou 220 - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
220
220
220A
670
670
11009
11009
11009
11009
11009
11009
16082
16126
16126A
32102
32102A
49065
52010
92002
92002
92043
92043A
92071
92071
92081
92150
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,6X20,WHITE 220 220B0620 2
SCREW-PAN-CROS,6X30 220A 220B0630 1
O RING,10MM 670 670B1510 2
GASKET,OIL PIPE,8.2X14X1.0 11009 11009-1344 8
PUMP-ASSY-OIL 16082 16082-1090 1
PISTON-ASSY,VALVE,BY-PASS 16126 16156-002 1
VALVE 16126A 92136-002 1
PIPE,CYLINDER HEAD 32102 32102-1594 1
PIPE,TRANSMISSION 32102A 32102-1595 1
FILTER-OIL 49065 49065-1058 1
ELEMENT-OIL FILTER 52010 16099-004 1
BOLT,BANJO,8X22 92002 92002-1359 3
PIN,SPRING,2.2X13.5 92043 92043-123 1
PIN,6.2X8X14 92043A 92043-1263 1
GROMMET,OIL FILTER 92071 92071-101 2
SPRING,PISTON 92081 92081-043 1
BOLT,BANJO,8X25 92150 92002-1987 1
DAMPER,4.5X11X20 92160 92160-1074 1
