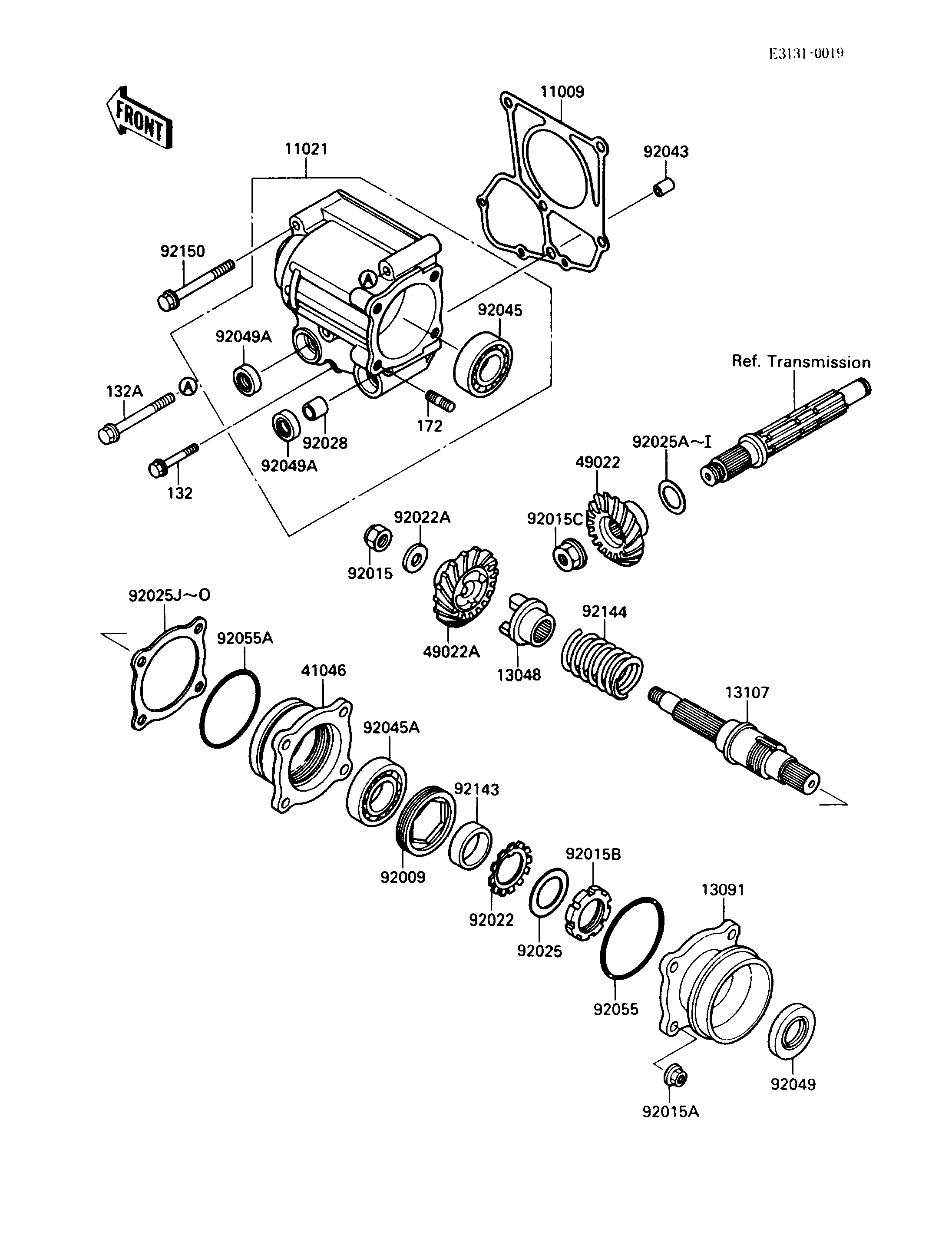

1988 Bayou 220 - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11021
11021
13048
13048
13091
13091
13107
13107
41046
41046
49022
49022
49022A
49022A
92009
92009
92015
92015
92015A
92015A
92015B
92015B
92015C
92015C
92022
92022
92022A
92022A
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92025I
92025I
92025J
92025J
92025K
92025K
92025L
92025L
92025M
92025M
92025N
92025N
92025O
92025O
92028
92028
92043
92043
92045
92045
92045A
92045A
92049
92049
92049A
92049A
92049A
92049A
92055
92055
92055A
92055A
92143
92143
132
132
132A
132A
172
172
92144
92144
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GEAR CASE 11009 11009-1674 1
CASE-ASSY,FRONT BEVEL 11021 11021-1068 1
CAM-DAMPER 13048 13048-1070 1
HOLDER,GEAR CASE 13091 13091-1487 1
SHAFT,FRONT BEVEL 13107 13107-1210 1
HOUSING-BEARING 41046 41046-1083 1
GEAR-BEVEL,15T 49022 49022-1095 1
GEAR-BEVEL,18T 49022A 49022-1096 1
SCREW 92009 92009-1474 1
NUT,LOCK,12MM,BLACK 92015 92015-1190 1
NUT,8MM 92015A 92015-1402 4
NUT,PUMP GEAR,30MM 92015B 92015-1511 1
NUT 92015C 92015-1581 1
WASHER 92022 92022-1882 1
WASHER,12X24X2.3 92022A 92022-1890 1
SHIM,30.3X40X0.6 92025 92025-1006 1
SHIM,20.3X28X1.3 92025A 92025-1533 AR
SHIM,20.3X28X0.7 92025B 92025-1534 AR
SHIM,20.3X28X0.8 92025C 92025-1535 AR
SHIM,20.3X28X0.9 92025D 92025-1536 AR
SHIM,20.3X28X1.0 92025E 92025-1537 AR
SHIM,20.3X28X1.2 92025F 92025-1538 AR
SHIM,20.3X28X0.15 92025G 92025-1573 AR
SHIM,20.3X28X0.20 92025H 92025-1574 AR
SHIM,20.3X28X1.1 92025I 92025-1575 AR
SHIM,T=1.00 92025J 92025-1858 AR
SHIM,T=0.10 92025K 92025-1859 AR
SHIM,T=0.15 92025L 92025-1860 AR
SHIM,T=0.50 92025M 92025-1861 AR
SHIM,T=0.80 92025N 92025-1862 AR
SHIM,T=1.20 92025O 92025-1863 AR
BUSHING 92028 92028-1347 1
PIN,DOWEL,10X14 92043 92043-1037 1
BEARING-BALL 92045 92045-1200 1
BEARING-BALL,6006CM 92045A 92045-1201 1
SEAL-OIL 92049 92049-1288 1
SEAL-OIL 92049A 92050-082 2
RING-O,66.5MM 92055 92055-1287 1
RING-O,63MM 92055A 92055-1294 1
COLLAR 92143 92143-1121 1
BOLT-FLANGED-SMALL 132 132J0630 3
BOLT-FLANGED-SMALL 132A 132J0870 3
BOLT-STUD,8X25 172 172G0825 4
SPRING 92144 92144-1161 1
BOLT 92150 92150-1108 1
