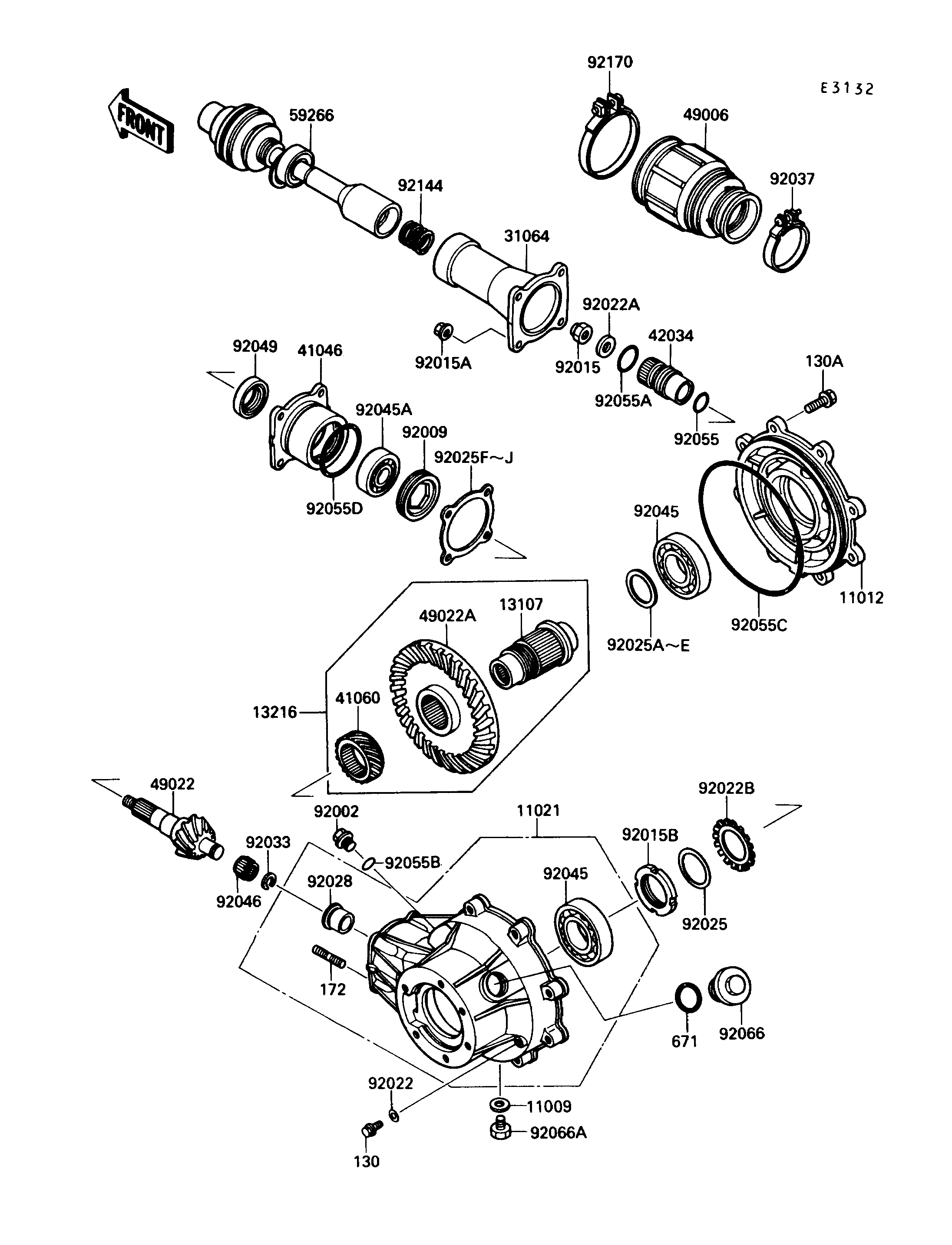

1988 Bayou 220 - Drive Shaft/Final Gear

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
11021
11021
13107
13107
31064
31064
41046
41046
41060
41060
42034
42034
49006
49006
49022
49022
49022A
49022A
59266
59266
92002
92002
92009
92009
92015
92015
92015A
92015A
92015B
92015B
92022
92022
92022A
92022A
92022B
92022B
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92025I
92025I
92025J
92025J
92028
92028
92033
92033
92037
92037
92045
92045
92045
92045
92045A
92045A
92046
92046
92049
92049
92055
92055
130
130
130A
130A
172
172
671
671
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92066
92066
92066A
92066A
92144
92144
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X16X1,DRAIN PLUG 11009 92065-058 1
CAP 11012 11012-1593 1
CASE-ASSY,FRONT BEVEL 11021 11021-1069 1
SHAFT,FINAL GEAR 13107 13107-1211 1
PIPE-COMP,FR 31064 31064-1087 1
HOUSING-BEARING 41046 41046-1084 1
GEAR-METER SCREW 41060 41060-1118 1
COUPLING,DIFFERENTIAL CASE 42034 42034-1078 1
BOOT,DRIVE SHAFT 49006 49006-1240 1
GEAR-BEVEL,10T 49022 49022-1097 1
GEAR-BEVEL,39T 49022A 49022-1098 1
JOINT-BALL,DRIVE SHAFT 59266 59266-1069 1
BOLT,16X10 92002 92002-1238 1
SCREW 92009 92009-1475 1
NUT,12MM 92015 92015-1182 1
NUT,8MM 92015A 92015-1402 4
NUT 92015B 92015-1665 1
WASHER,6.1X12X1 92022 92022-077 1
WASHER,12.3X25X3.2 92022A 92022-1293 1
WASHER 92022B 92022-1883 1
SHIM 92025 92025-1587 1
SHIM,35.3X46X1.00 92025A 92025-1849 AR
SHIM,35.3X46X0.10 92025B 92025-1850 AR
SHIM,35.3X46X0.15 92025C 92025-1851 AR
SHIM,35.3X46X0.50 92025D 92025-1856 AR
SHIM,35.3X46X0.80 92025E 92025-1857 AR
SHIM,T=1.00 92025F 92025-1864 AR
SHIM,T=0.10 92025G 92025-1865 AR
SHIM,T=0.15 92025H 92025-1866 AR
SHIM,T=0.50 92025I 92025-1867 AR
SHIM,T=0.80 92025J 92025-1868 AR
BUSHING 92028 92028-1501 1
RING-SNAP,14X17.5X1.2 92033 92033-1234 1
CLAMP 92037 92037-1523 1
BEARING-BALL 92045 92045-1110 2
BEARING-BALL 92045A 92045-1112 1
BEARING-NEEDLE,K15X21X15 92046 92046-1173 1
SEAL-OIL 92049 92049-1231 1
RING-O,17.5X1.5 92055 92055-022 1
BOLT-FLANGED,6X8 130 130B0608 1
BOLT-FLANGED 130A 130P0825 8
BOLT-STUD,8X25 172 172G0825 4
O RING,30MM 671 671B2530 1
RING-O,27MM 92055A 92055-1119 1
RING-O,ID=13.8 92055B 92055-1141 1
RING-O,154MM 92055C 92055-1165 1
RING-O 92055D 92055-3018 1
PLUG 92066 92066-1284 1
PLUG,DRAIN,10X12 92066A 92067-001 1
SPRING,DRIVE SHAFT 92144 92144-1235 1
CLAMP 92170 92170-1149 1
