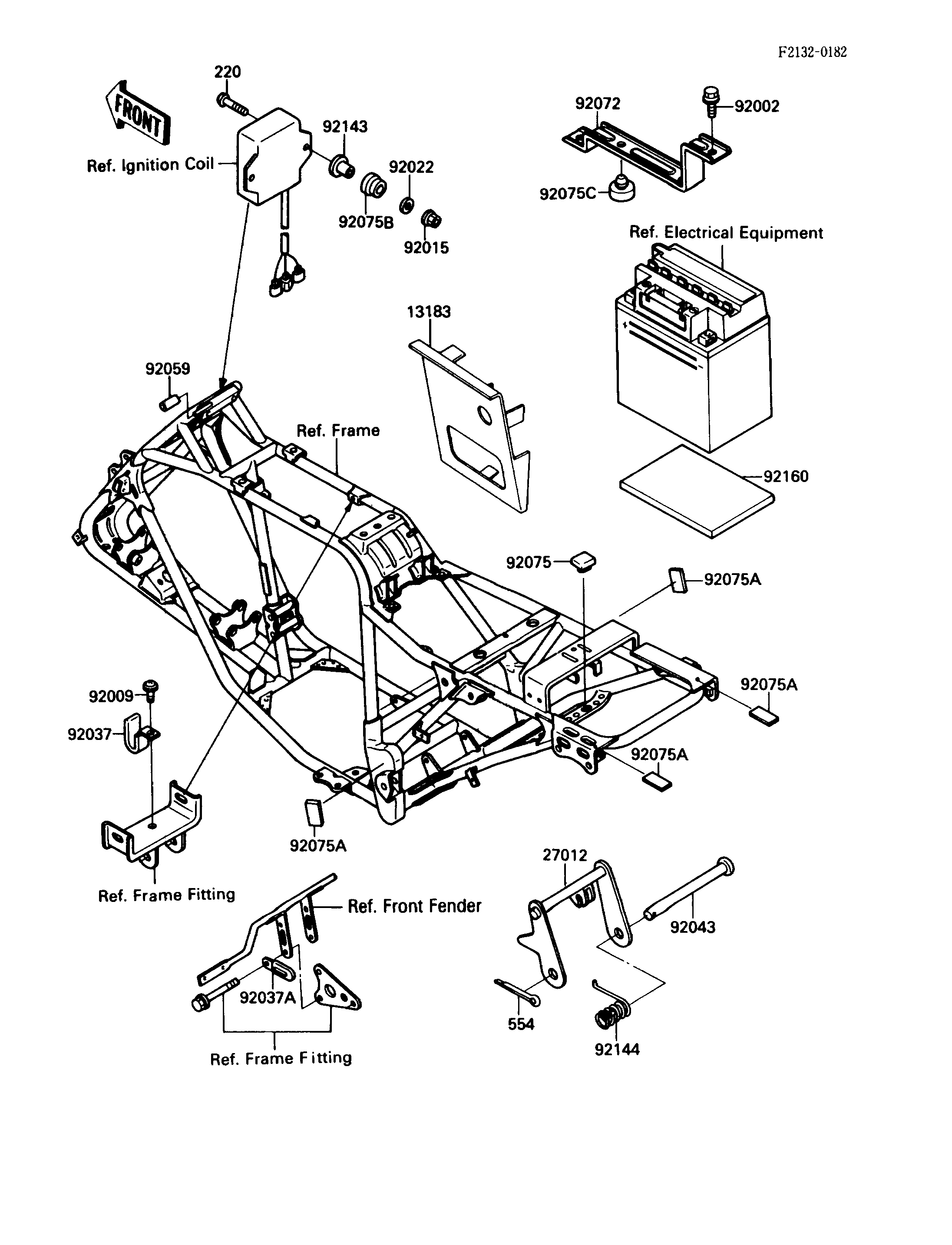

1988 Bayou 220 - Battery Case

DOWNLOAD PDF
SELECT A NEW PART
220
554
13183
27012
92002
92009
92015
92022
92037
92037A
92043
92059
92072
92075
92075A
92075A
92075A
92075A
92075B
92075C
92143
92144
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,6X25 220 220B0625 2
PIN-SNAP 554 554A0600 1
PLATE,ELECTRIC BASE 13183 13183-1134 1
HOOK,SEAT 27012 27012-1381 1
BOLT,6X14 92002 92002-1351 2
SCREW,6X14 92009 92009-1288 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 2
WASHER,7X18X1.2 92022 92022-1545 2
CLAMP 92037 92037-1700 1
CLAMP 92037A 92037-1780 1
PIN,6X77 92043 92043-1367 1
TUBE,3X8X40 92059 92059-1901 1
BAND,BATTERY 92072 92072-1222 1
DAMPER 92075 92075-099 1
DAMPER 92075A 92075-1830 4
DAMPER 92075B 92075-208 2
DAMPER 92075C 92075-281 2
COLLAR,L=9.6 92143 92143-1016 2
SPRING,SEAT HOOK 92144 92144-1174 1
DAMPER,BATTERY 92160 92075-1997 1
