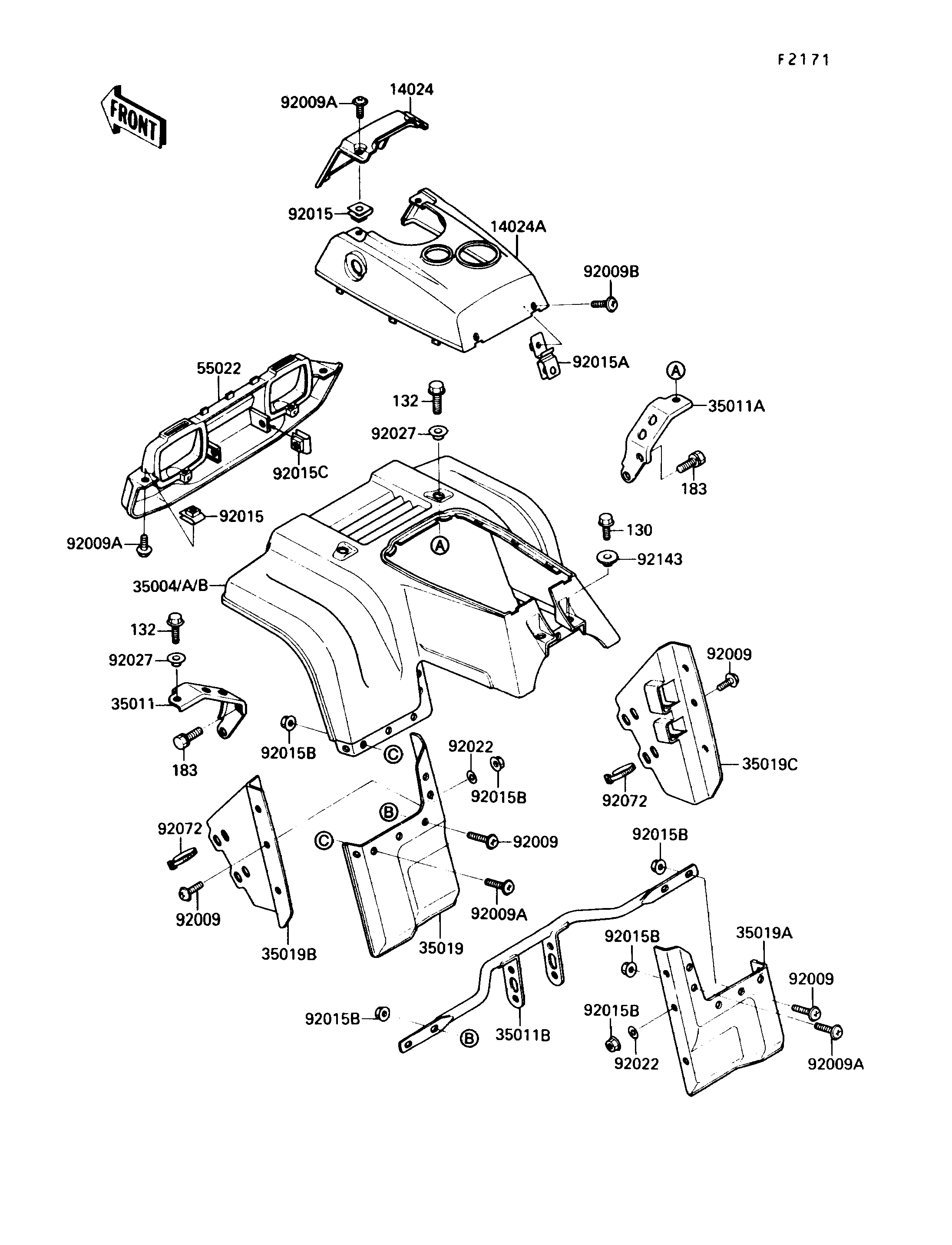

1988 Bayou 220 - Front Fender

DOWNLOAD PDF
SELECT A NEW PART
130
132
132
183
183
14024
14024A
35004B
35011
35011A
35011B
35019
35019A
35019B
35019C
55022
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009B
92015
92015
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92015C
92022
92022
92027
92027
92072
92072
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130C0616 2
BOLT-FLANGED-SMALL 132 132J0820 2
BOLT-UPSET-WS-SMALL 183 183J0814 2
COVER,FRONT FENDER,FR,BLACK 14024 14024-1475-6D 1
COVER,FRONT FENDER,RR,BLACK 14024A 14024-1476-6D 1
FENDER-FRONT,F.RED 35004B 35004-1207-6L 1
STAY,FRONT FENDER,LH 35011 35011-1361 1
STAY,FRONT FENDER,RH 35011A 35011-1362 1
STAY,FRONT FLAP 35011B 35011-1368 1
FLAP,FR,LH 35019 35019-1195 1
FLAP,FR,RH 35019A 35019-1196 1
FLAP,FR,INSIDE,LH 35019B 35019-1197 1
FLAP,FR,INSIDE,RH 35019C 35019-1198 1
COVER-HEAD LAMP,BLACK 55022 55022-1060-6D 1
SCREW,6X18,BLACK 92009 92009-1181 10
SCREW,6X14 92009A 92009-1288 16
SCREW,6X10 92009B 92009-1402 2
NUT,6MM 92015 92015-1094 4
NUT,PLATE 92015A 92015-1667 2
NUT,LOCK,FLANGED,6MM 92015B 92015-1675 18
NUT,8MM 92015C 92015-1691 2
WASHER,6.5X20X1.6 92022 92022-1557 6
COLLAR 92027 92027-1908 2
BAND,L=149 92072 92072-031 4
COLLAR,L=6.5 92143 92143-1025 2
FENDER-FRONT,BLACK 35004 35004-1207-6D 1
FENDER-FRONT,P.WHITE 35004A 35004-1207-6F 1
