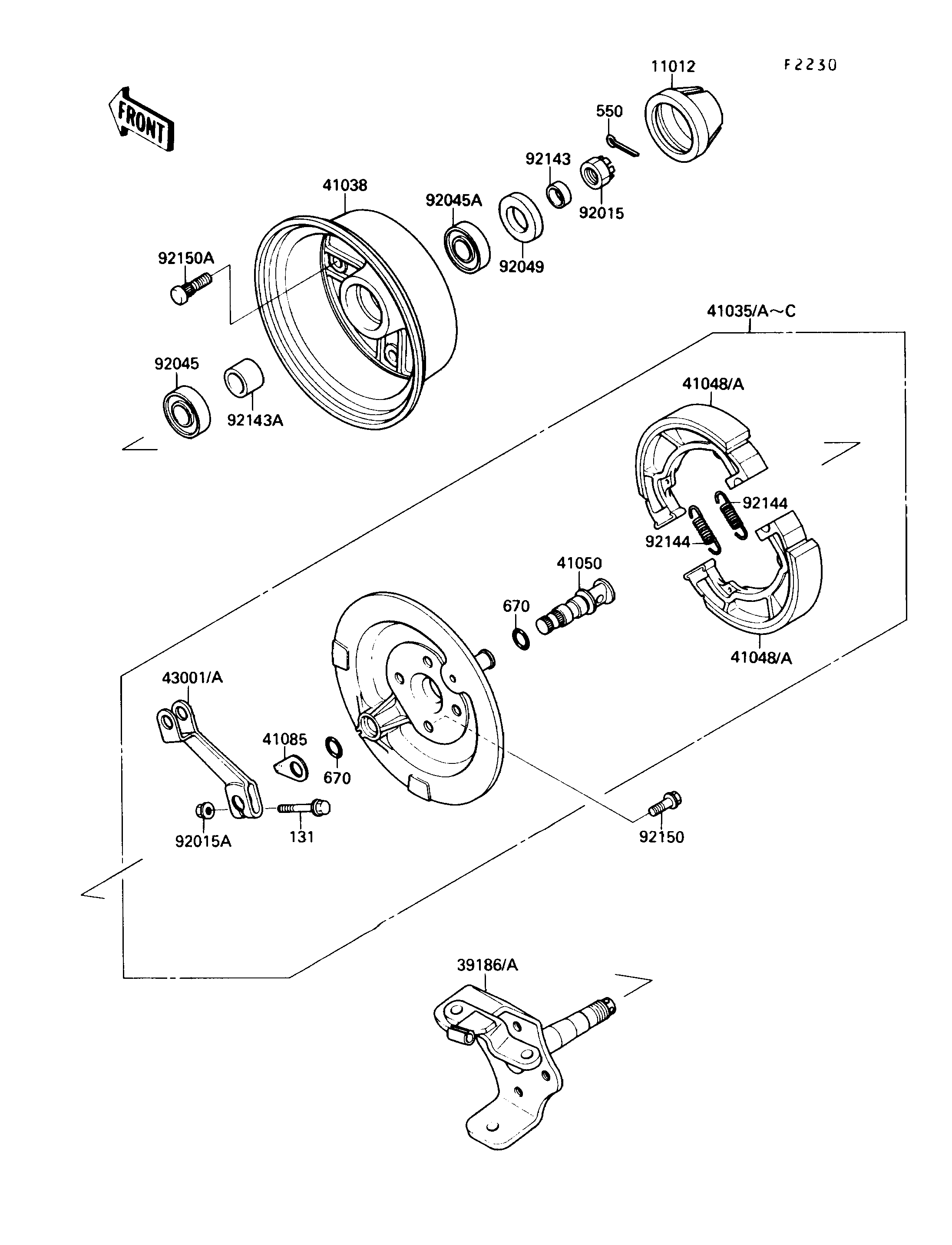

1988 Bayou 220 - Front Hub

DOWNLOAD PDF
SELECT A NEW PART
131
550
670
670
11012
39186
39186A
41035
41035A
41038
41048
41048
41050
41085
43001
43001A
92015
92015A
92045
92045A
92049
92143
92143A
92144
92144
92150
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 131 131H0635 2
PIN-COTTER,4.0X30 550 550D4030 2
O RING,15MM 670 670B2015 4
CAP,WHEEL 11012 11012-1519 2
KNUCKLE,LH 39186 39186-1077 1
KNUCKLE,RH 39186A 39186-1078 1
PANEL-ASSY-BRAKE,FR,LH 41035 41035-1226 1
PANEL-ASSY-BRAKE,FR,RH 41035A 41035-1227 1
DRUM,FRONT BRAKE 41038 41038-1189 2
SHOE-BRAKE 41048 41048-1017 4
CAM-BRAKE 41050 41050-1075 2
INDICATOR 41085 41085-1059 2
LEVER-BRAKE,LH 43001 43001-1228 1
LEVER-BRAKE,RH 43001A 43001-1229 1
NUT,CASTLE,16MM 92015 42045-014 2
NUT,FLANGED,6MM,BLACK 92015A 92015-1237 2
BEARING-BALL,60042RD 92045 92045-1198 2
BEARING-BALL,6203DDU2 AV2S 92045A 92045-1228 2
SEAL-OIL 92049 92049-1318 2
COLLAR,16X22X10.5 92143 92143-1117 2
COLLAR,20X25.4X25 92143A 92143-1118 2
SPRING,BRAKE SHOE 92144 92144-1225 4
BOLT,FLANGED,8X18 92150 92002-1957 8
BOLT 92150A 92150-1289 8
