180
180
322
322
56040
56040A
92037
92037
92037A
92037A
92075
92160

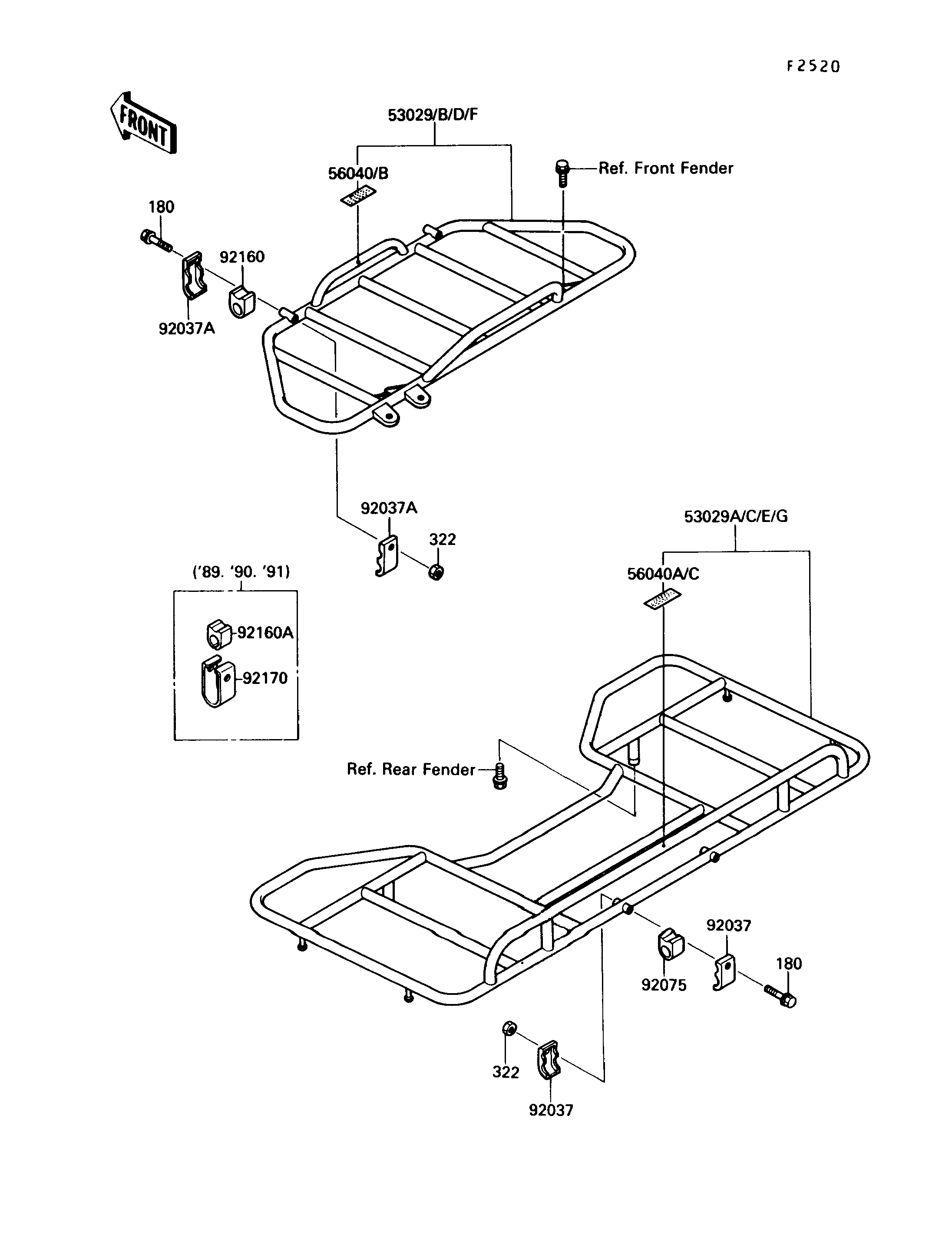

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS 180 180J0640 4
NUT-CAP,6MM,BLACK 322 322C0600 4
LABEL-WARNING,MAXIMUM LOAD 56040 56040-1142 1
LABEL-WARNING,MAXIMUM LOAD 56040A 56040-1216 1
CLAMP,RR CARRIER 92037 92037-1660 4
CLAMP,CARRIER 92037A 92037-1924 4
DAMPER,CARRIER 92075 92075-1728 2
DAMPER,CARRIER 92160 92075-1969 2
CARRIER,FR 53029 53029-1085 1
CARRIER,RR 53029A 53029-1087 1
CARRIER,FR 53029B 53029-1089 1
CARRIER,RR 53029C 53029-1091 1
