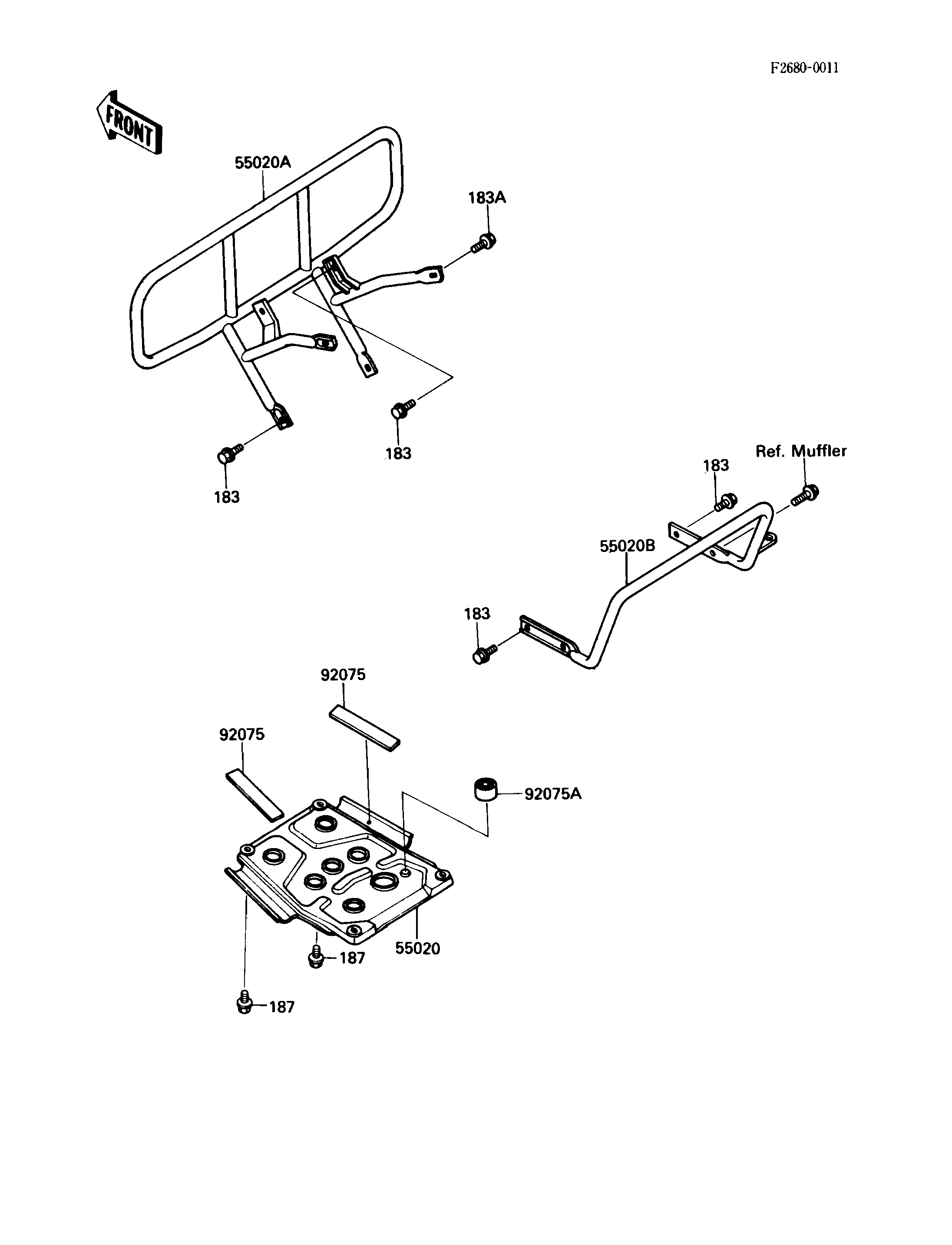

183
183
183
183
183A
187
187
55020
55020A
55020B
92075
92075
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS-SMALL 183 183J0814 7
BOLT-UPSET-WS-SMALL 183A 183J0818 2
BOLT-UPSET-WSP 187 187D0614 2
GUARD,ENGINE 55020 55020-1271 1
GUARD,FR 55020A 55020-1272 1
GUARD,RR 55020B 55020-1273 1
DAMPER 92075 92075-1829 2
DAMPER 92075A 92075-1896 1
