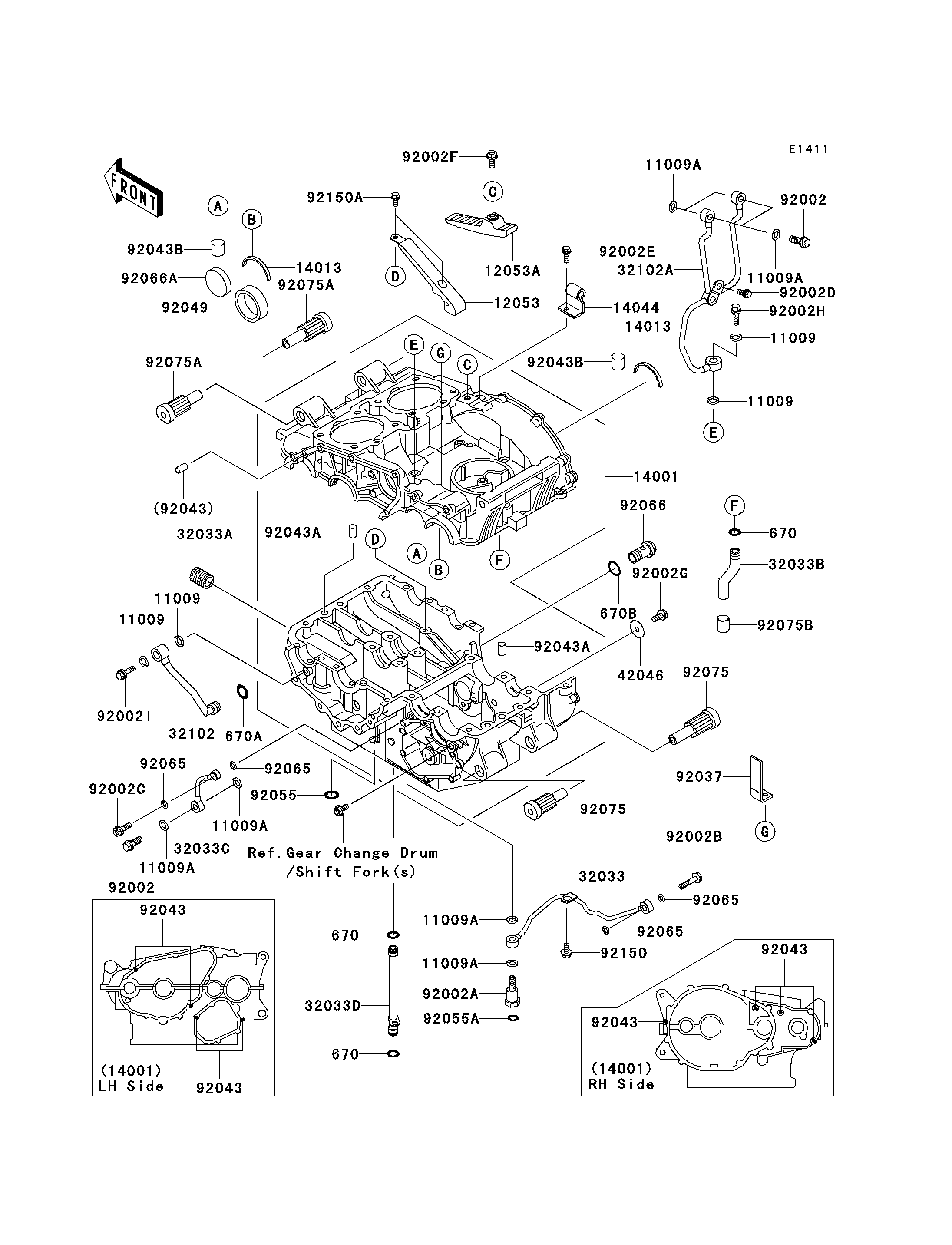

2008 Ninja® 500R - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11009
11009
11009
11009
11009
11009A
11009A
11009A
11009A
11009A
11009A
11009A
11009A
11009A
11009A
11009A
11009A
12053
12053
12053A
12053A
14001
14001
14013
14013
14013
14013
14044
14044
32033
32033
32033A
32033A
32033B
32033B
32033C
32033C
32033D
32033D
32102
32102
32102A
32102A
42046
42046
92002
92002
92002
92002
92002A
92002A
92002B
92002B
92002C
92002C
92002D
92002D
92002E
92002E
92002F
92002F
92002G
92002G
92002H
92002H
92002I
92002I
92037
92037
92043
92043
92043
92043
92043
92043
92043
92043
92043A
92043A
92043A
92043A
92043B
92043B
92043B
92043B
92049
92049
92055
92055
92055A
92055A
92065
92065
92065
92065
92065
92065
92065
92065
92066
92066
92066A
92066A
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075B
92075B
92150
92150
92150A
92150A
670
670
670
670
670
670
670A
670A
670B
670B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10X14.5X1.5 11009 11009-1105 4
GASKET,8.2X14X1.0 11009A 11009-1344 8
GUIDE-CHAIN,LWR 12053 12053-1216 1
GUIDE-CHAIN,UPP 12053A 12053-1217 1
SET-CRANKCASE 14001 14001-1090 1
RING-POSITION 14013 14013-004 2
HOLDER-CABLE 14044 14044-1059 1
PIPE 32033 32033-1530 1
PIPE,OIL FILTER 32033A 32033-1535 1
PIPE 32033B 32033-1538 1
PIPE 32033C 32033-1539 1
PIPE 32033D 32033-1574 1
PIPE 32102 32102-1541 1
PIPE 32102A 32102-1710 1
WASHER,6.5X24X1.2 42046 42046-008 1
BOLT,8X20 92002 92002-1429 3
BOLT 92002A 92002-1467 1
BOLT,BANJO,6X28 92002B 92002-1471 1
BOLT,BANJO,6X19 92002C 92002-1473 1
BOLT,6X12 92002D 92002-1569 1
BOLT,6X16 92002E 92002-1570 1
BOLT,6X16 92002F 92002-1571 1
BOLT,6X14 92002G 92002-1656 1
BOLT,OIL,L=23 92002H 92002-1809 1
BOLT,BANJO,10X30 92002I 92002-1941 1
CLAMP 92037 92037-1679 1
PIN,6.2X8X14 92043 92043-1263 8
PIN,8.2X10X14 92043A 92043-1264 2
PIN,6X16 92043B 92043-1690 2
SEAL-OIL 92049 92049-1567 1
RING-O,OD=18 92055 92055-048 2
RING-O,OD=13 92055A 92055-074 1
GASKET 92065 92065-096 4
PLUG,MAIN GALLERY 92066 92066-1205 1
PLUG,RCA 345.5 92066A 92066-1208 1
DAMPER,L=79.5 92075 92075-1678 2
DAMPER,L=93 92075A 92075-1679 2
DAMPER 92075B 92075-1742 1
BOLT,FLANGED,6X12 92150 92150-1826 1
BOLT,6X12 92150A 92150-1868 2
O RING,10MM 670 670B1510 3
O RING,10MM 670A 670B2010 1
O RING,21MM 670B 670B2021 1
