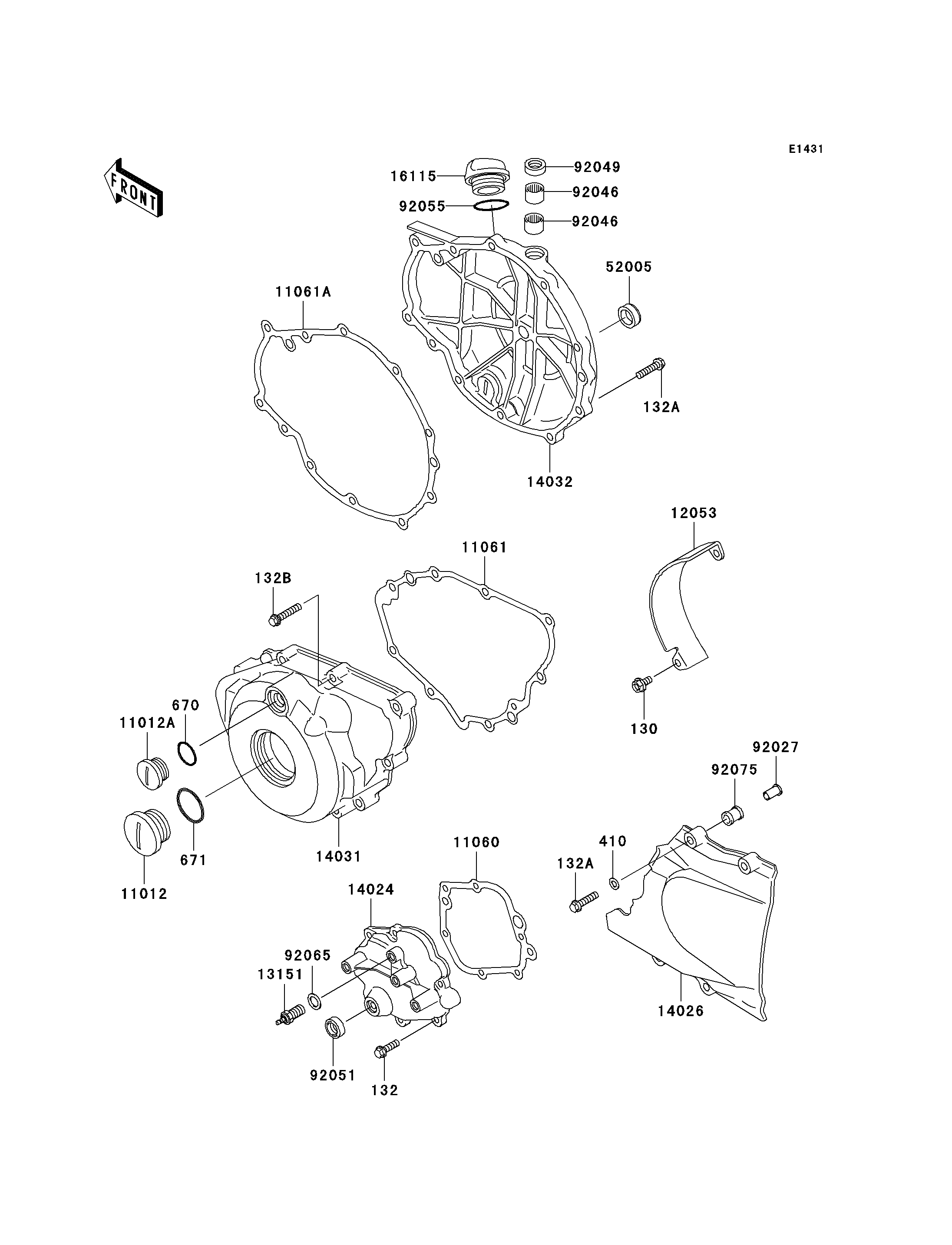

2008 Ninja® 500R - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
130
132
132A
132A
132B
410
670
671
11012
11012A
11060
11061
11061A
12053
13151
14024
14026
14031
14032
16115
52005
92027
92046
92046
92049
92051
92055
92065
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED-SMALL,6X20 132 132BB0620 6
BOLT-FLANGED-SMALL,6X25 132A 132BB0625 15
BOLT-FLANGED-SMALL,6X30 132B 132BB0630 9
WASHER-PLAIN-SMALL,6MM 410 410AB0600 4
O RING,18MM 670 670B2018 1
O RING,40MM 671 671B2540 1
CAP 11012 11012-1362 1
CAP,TOP MARK 11012A 11012-1363 1
GASKET,CHANGE MECHANISM 11060 11060-1830 1
GASKET,GENERATOR COVER 11061 11061-0273 1
GASKET,CLUTCH COVER 11061A 11061-0274 1
GUIDE-CHAIN 12053 12053-1215 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
COVER,CHANGE MECHANISM 14024 14024-1387 1
COVER-CHAIN 14026 14026-1128 1
COVER-GENERATOR 14031 14031-1202 1
COVER-CLUTCH 14032 14032-1386 1
CAP-OIL FILLER 16115 16115-1009 1
GAUGE,OIL LEVEL 52005 52005-1009 1
COLLAR 92027 92027-1858 4
BEARING-NEEDLE,HK1210 92046 92046-1010 2
SEAL-OIL,TB12205.5 92049 92049-1271 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,31.7X2.4 92055 92055-049 1
GASKET,10.5X16X1 92065 92065-058 1
DAMPER 92075 92075-1681 4
