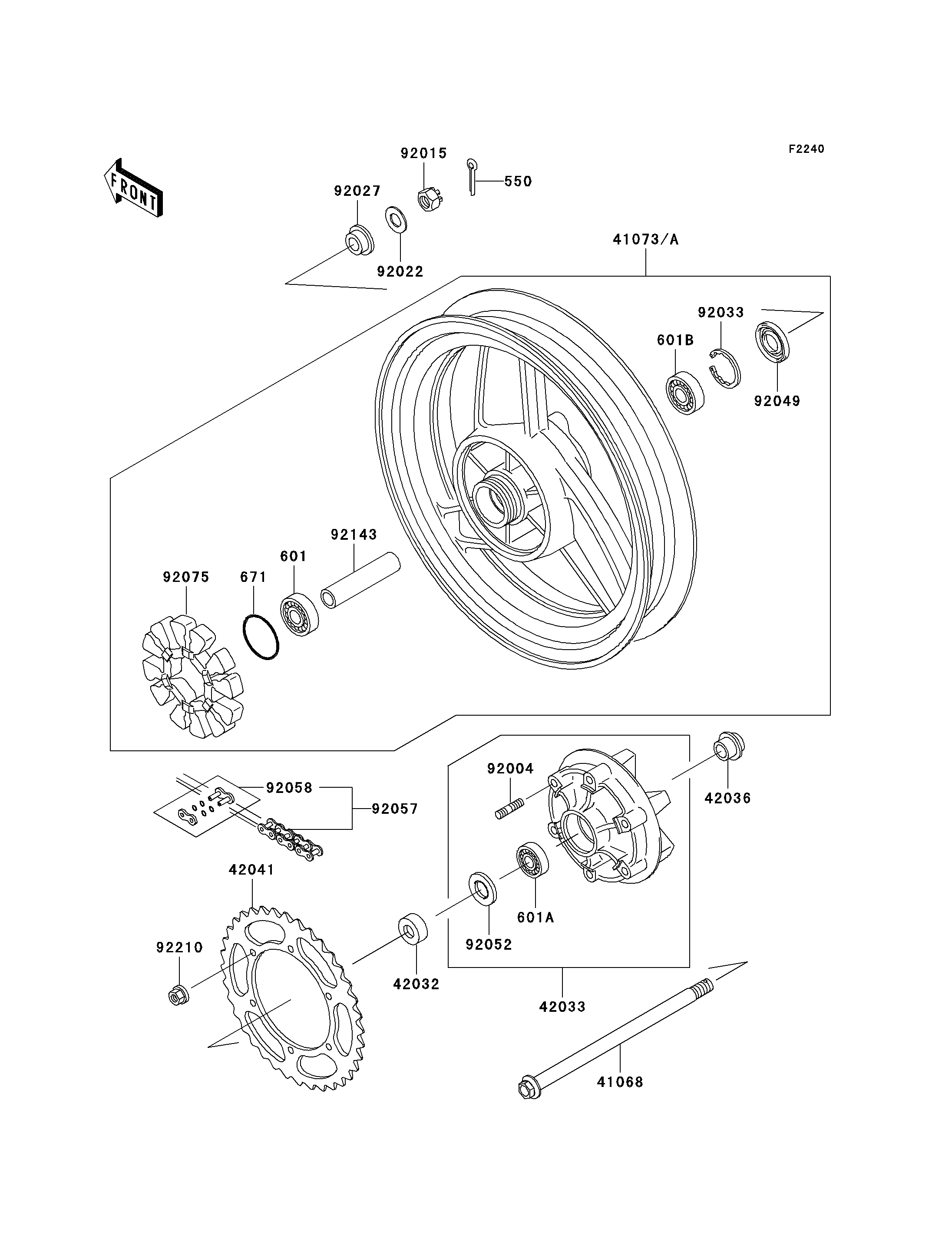

2008 Ninja® 500R - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
550
601
601A
601B
671
41068
41073A
42032
42033
42036
42041
92004
92015
92022
92027
92033
92049
92052
92057
92058
92075
92143
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 550 550AA4035 1
BEARING-BALL,#6203UUC3 601 601B6203UU 1
BEARING-BALL,#6205G 601A 601B6205G 1
BEARING-BALL,#6303UUC3 601B 601B6303UU 1
O RING 671 671B2550 1
AXLE,RR 41068 41068-1223 1
WHEEL-ASSY,RR,BLACK 41073A 41073-1474-18F 1
COLLAR,RR AXLE,L=13 42032 42032-063 1
COUPLING-ASSY,RR HUB,M.SILVER 42033 42033-1210-7J 1
SLEEVE,RR HUB,L=30 42036 42036-1055 1
SPROCKET-HUB,41T 42041 42041-1354 1
STUD,10X19 92004 92004-0028 6
NUT,CASTLE,16MM 92015 92015-1947 1
WASHER,17.5X34X2.0 92022 92022-1916 1
COLLAR,RR HUB 92027 92027-1785 1
RING-SNAP,47MM 92033 92033-1042 1
SEAL-OIL,BJN28475 92049 92049-1056 1
SEAL-OIL,TWC35527 92052 92052-006 1
CHAIN,DRIVE,EK520MVXLX104L 92057 92057-0048 1
JOINT-CHAIN,DRIVE 92058 92058-0002 1
DAMPER,RR HUB SHOCK 92075 92075-1436 1
COLLAR,RR HUB,L=111 92143 92143-1416 1
NUT,LOCK,FLANGED,10MM 92210 92210-0276 6
