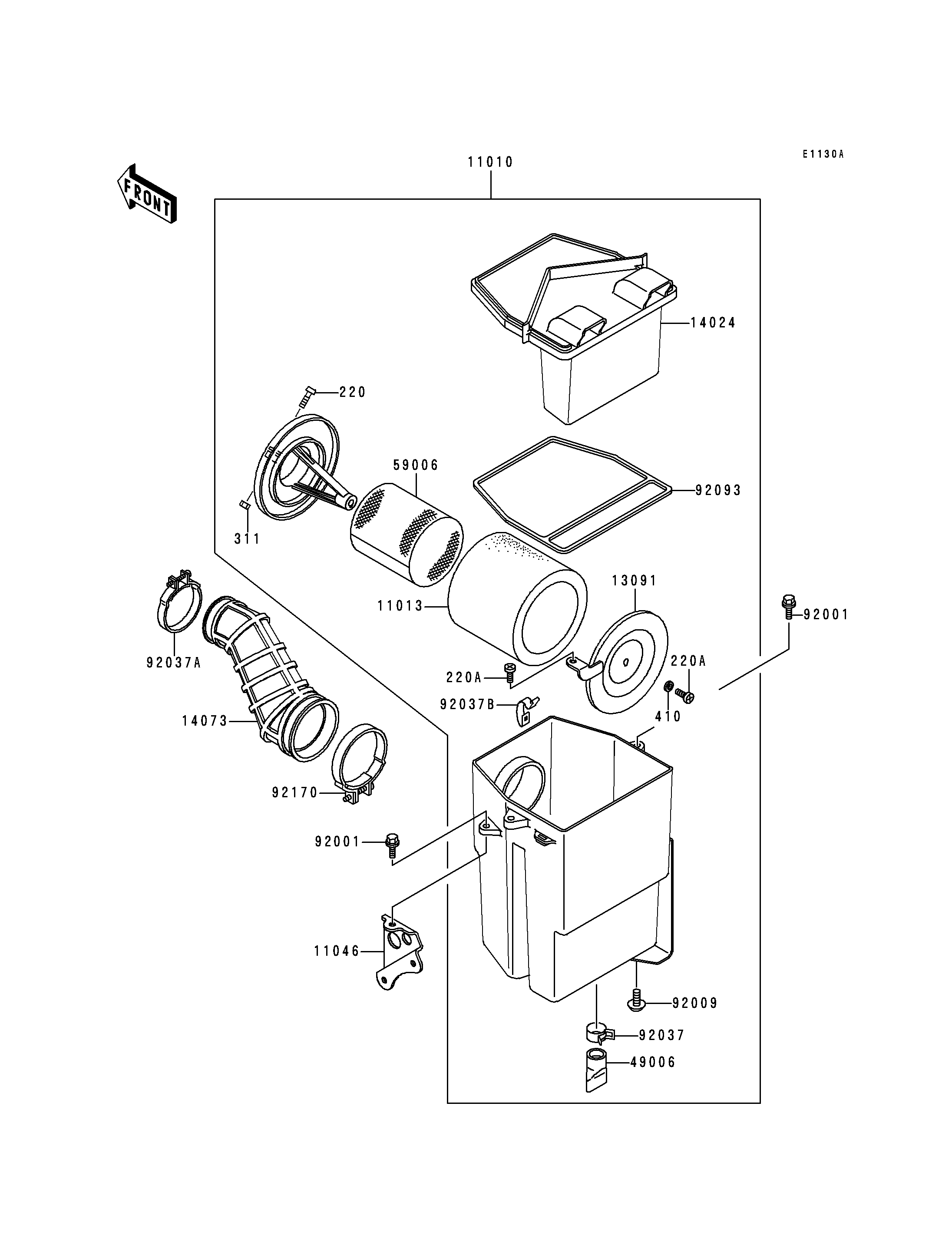

1991 Bayou 300 - Air Filter(KLF300-B2/B3/B4)
220
220A
220A
311
410
11010
11013
11046
13091
14024
14073
49006
59006
92001
92001
92009
92037
92037A
92037B
92093
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-CROS | 220 | 220B0516 | 1 | ||
| SCREW-PAN-CROS,6X14 | 220A | 220B0614 | 2 | ||
| NUT-HEX | 311 | 311B0500 | 1 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 1 | ||
| FILTER-ASSY-AIR | 11010 | 11010-1365 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1158 | 1 | ||
| BRACKET,REGULATOR | 11046 | 11046-1042 | 1 | ||
| HOLDER,ELEMENT | 13091 | 13091-1488 | 1 | ||
| COVER,AIR FILTER | 14024 | 14024-1703 | 1 | ||
| DUCT | 14073 | 14073-1372 | 1 | ||
| BOOT | 49006 | 49006-1199 | 1 | ||
| ARRESTER-FLAME | 59006 | 59006-1052 | 1 | ||
| BOLT,6X18 | 92001 | 92001-1342 | 3 | ||
| SCREW,TAPPING,5X10 | 92009 | 92009-1332 | 2 | ||
| CLAMP | 92037 | 92037-1460 | 1 | ||
| CLAMP | 92037A | 92037-1523 | 1 | ||
| CLAMP,AIR FILTER | 92037B | 92037-1783 | 4 | ||
| SEAL,AIR FILTER | 92093 | 92093-1241 | 1 | ||
| CLAMP | 92170 | 92170-1149 | 1 | ||
| HOLDER,AIR FILTER | 13091A | 13091-1565 | 1 |
