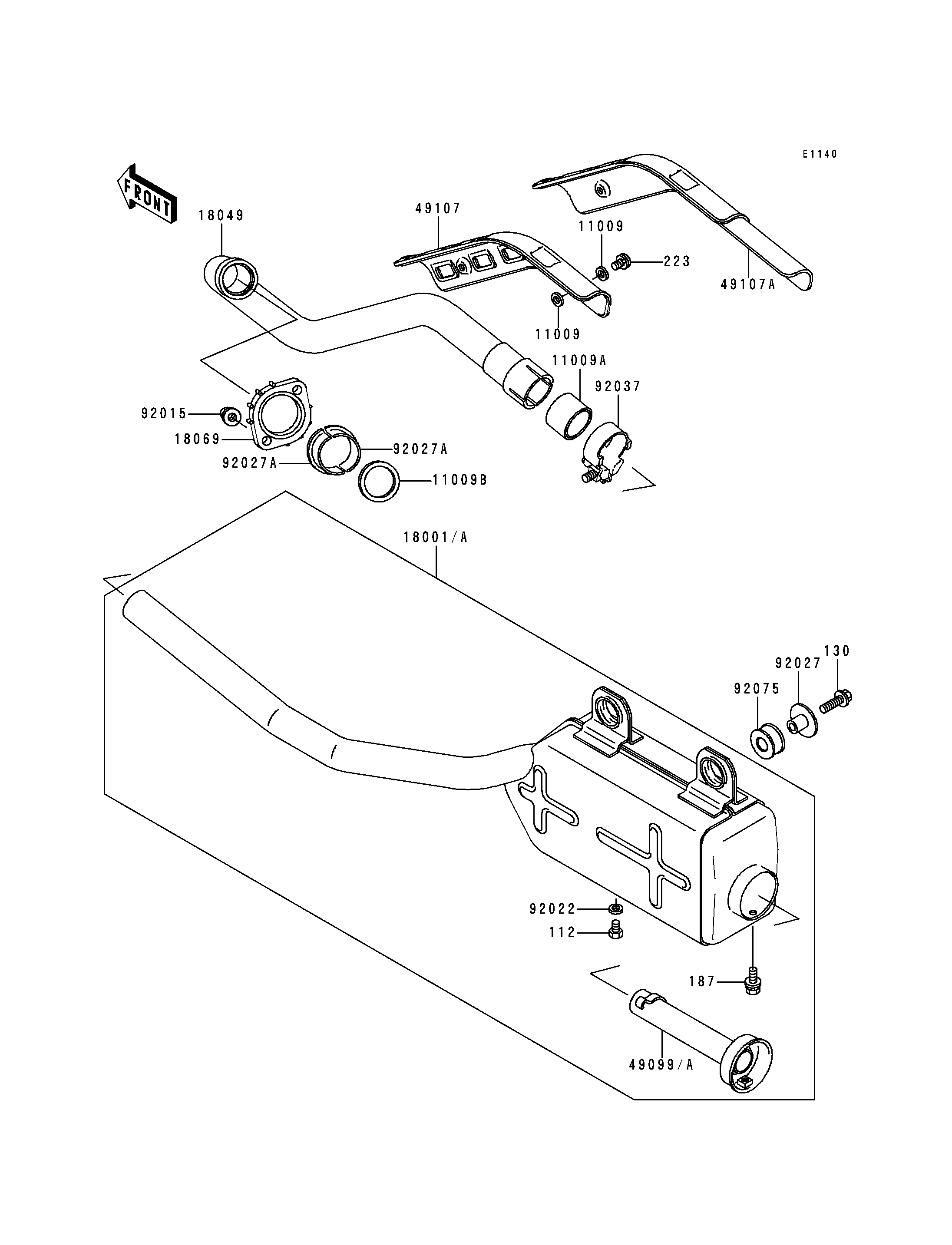

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
112
130
187
223
11009
11009
11009A
11009B
18001A
18049
18069
49099A
49107A
92015
92022
92027
92027A
92027A
92037
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET | 112 | 112B0608 | 1 | ||
| BOLT-FLANGED,8X25,BLACK | 130 | 130J0825 | 2 | ||
| BOLT-UPSET-WSP | 187 | 187B0612 | 1 | ||
| SCREW-PAN-WS-CROS | 223 | 223C0610 | 2 | ||
| GASKET,6.2X11.5X1.5 | 11009 | 11009-1451 | 4 | ||
| GASKET,EXHAUST PIPE CONNECTING | 11009A | 11009-1718 | 1 | ||
| GASKET,EXHAUST PIPE HOLDER | 11009B | 11009-1866 | 1 | ||
| MUFFLER | 18001A | 18001-1726 | 1 | ||
| PIPE-EXHAUST | 18049 | 18049-1417 | 1 | ||
| HOLDER-EXHAUST PIPE | 18069 | 18069-1014 | 1 | ||
| BAFFLE-PIPE MUFFLER | 49099A | 49099-1268 | 1 | ||
| COVER-EXHAUST PIPE | 49107A | 49107-1081 | 1 | ||
| NUT,8MM | 92015 | 92015-1402 | 2 | ||
| WASHER,6.2X11X1 | 92022 | 92022-304 | 1 | ||
| COLLAR,MUFFLER | 92027 | 92027-1981 | 2 | ||
| COLLAR,EXHAUST PIPE | 92027A | 92027-264 | 2 | ||
| CLAMP | 92037 | 92037-1956 | 1 | ||
| DAMPER,MUFFLER | 92075 | 92075-1809 | 2 |
| BOLT-UPSET | |
| REF # | 112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X25,BLACK | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WSP | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,6.2X11.5X1.5 | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE CONNECTING | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE HOLDER | |
| REF # | 11009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER | |
| REF # | 18001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST | |
| REF # | 18049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-EXHAUST PIPE | |
| REF # | 18069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAFFLE-PIPE MUFFLER | |
| REF # | 49099A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X11X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,MUFFLER | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,EXHAUST PIPE | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MUFFLER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
