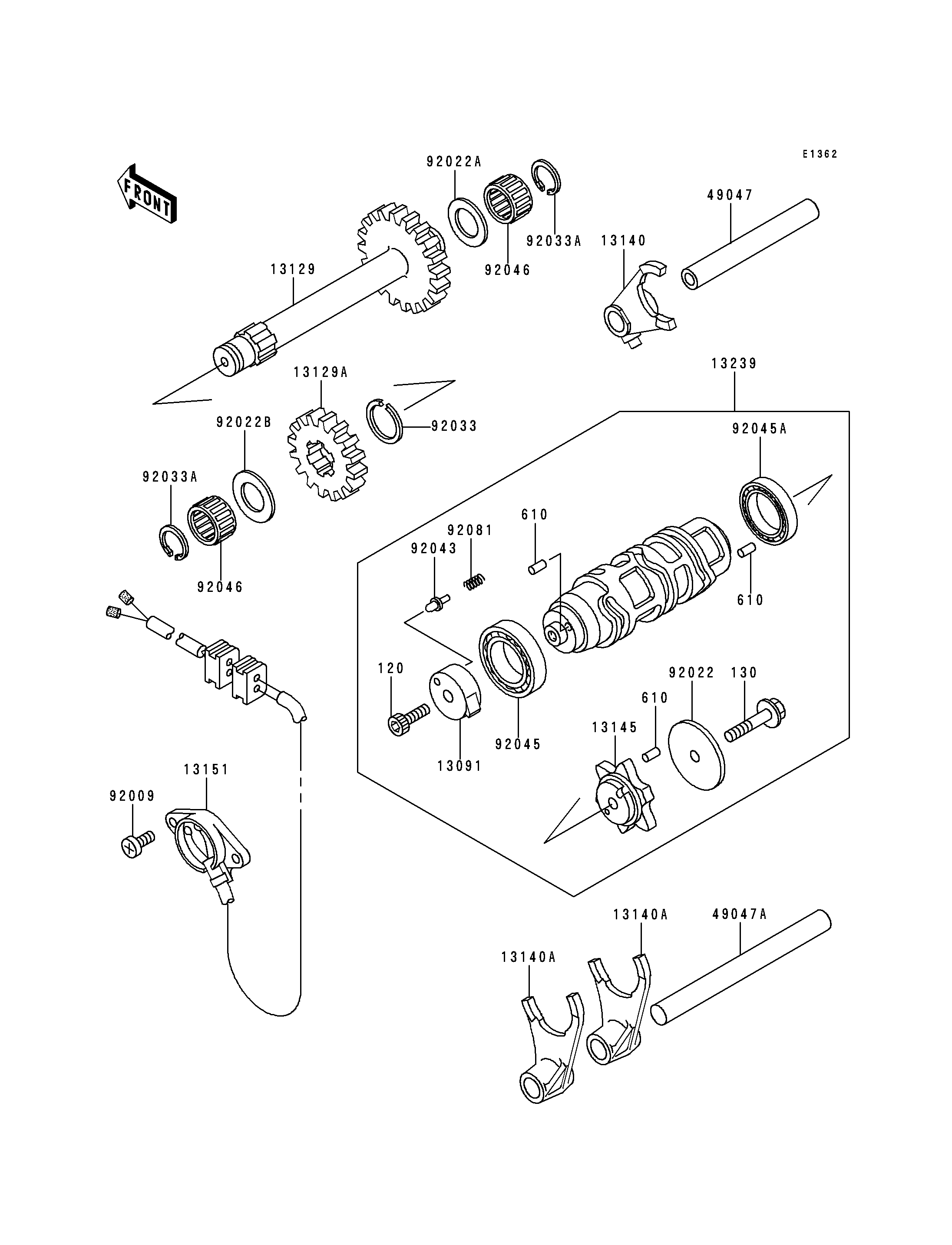

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120Q0620 1
BOLT-FLANGED,6X30 130 130G0630 1
ROLLER,4X10 610 610A0410 8
HOLDER,NEUTRAL SWITCH 13091 13091-1443 1
GEAR-REVERSE 13129 13129-1705 1
GEAR-REVERSE,20T 13129A 13129-1706 1
FORK-SHIFT 13140 13140-1134 1
FORK-SHIFT 13140A 13140-1135 2
CAM-CHANGE DRUM 13145 13145-1064 1
SWITCH-COMP 13151 13151-1072 1
DRUM-ASSY-CHANGE 13239 13239-1154 1
ROD-SHIFT,L=93.7 49047 49047-1003 1
ROD-SHIFT 49047A 49047-1062 1
SCREW,5X14 92009 92009-1341 2
WASHER,6.2X38X1.2 92022 92022-1500 1
WASHER,17.3X28X1 92022A 92022-255 1
WASHER,17.3X30X1.4 92022B 92022-270 1
RING-SNAP,20X25.5X1.2 92033 92033-025 1
RING-SNAP 92033A 92033-032 2
PIN 92043 92043-1287 1
BEARING-BALL,6805 92045 92045-1122 1
BEARING-BALL,6905X1 92045A 92045-1150 1
BEARING-NEEDLE,K17X23X13.8 92046 92046-1184 2
SPRING 92081 92081-1763 1
