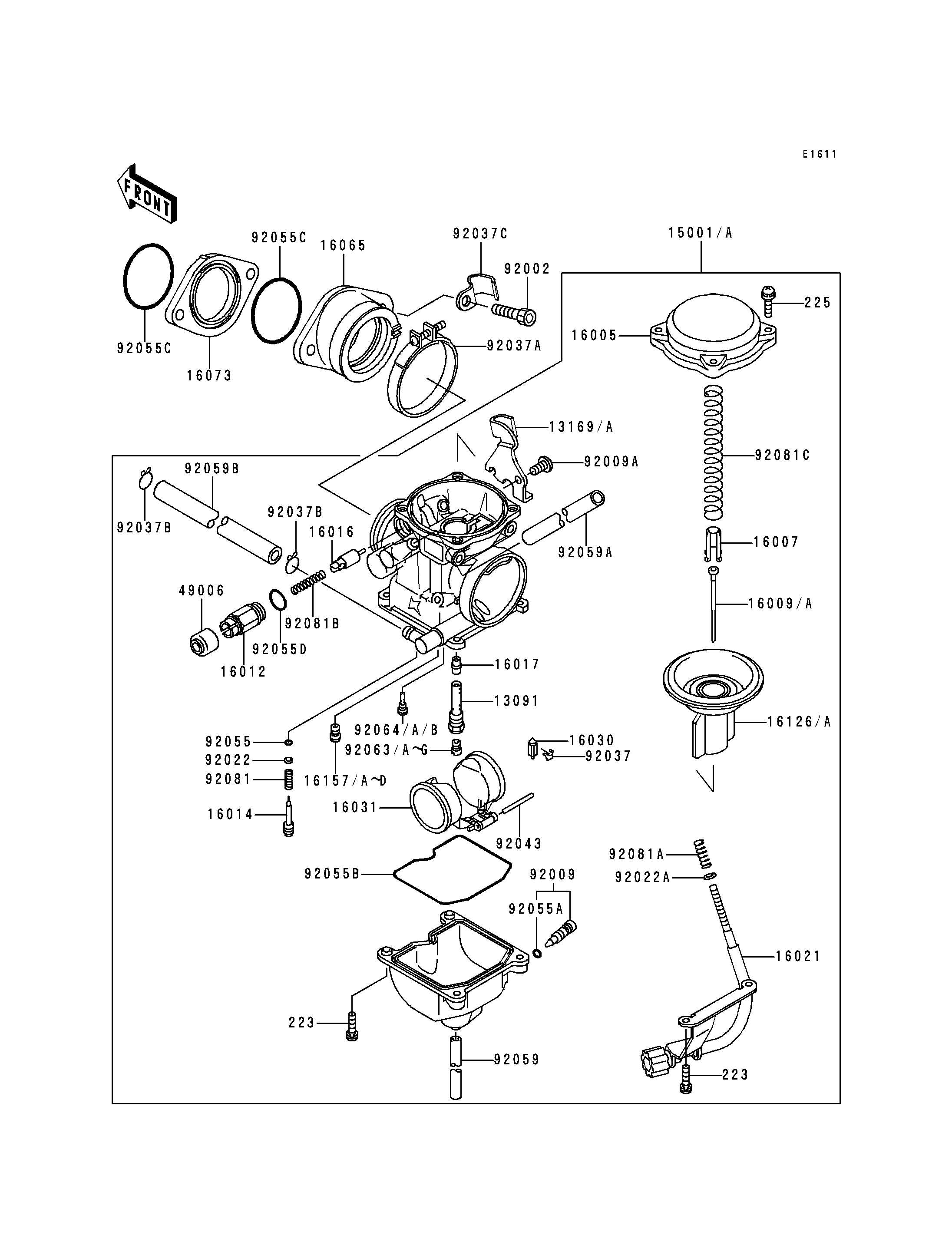

1991 Bayou 300 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
13091
13091
13169A
13169A
15001A
15001A
16005
16005
16007
16007
16009A
16009A
16012
16012
16014
16014
16016
16016
16017
16017
16021
16021
16030
16030
16031
16031
16065
16065
16073
16073
16126A
16126A
16157A
16157A
16157C
16157C
16157D
16157D
49006
49006
92002
92002
92009
92009
92009A
92009A
92022
92022
92022A
92022A
92037
92037
92037A
92037A
92037B
92037B
92037B
92037B
92037C
92037C
92043
92043
92055
92055
223
223
223
223
225
225
92055A
92055A
92055B
92055B
92055C
92055C
92055C
92055C
92055D
92055D
92059
92059
92059A
92059A
92059B
92059B
92063
92063
92063A
92063A
92063D
92063D
92063E
92063E
92063G
92063G
92064
92064
92064A
92064A
92064B
92064B
92081
92081
92081A
92081A
92081B
92081B
92081C
92081C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1259 1
PLATE,THROTTLE CABLE 13169A 13169-1197 1
CARBURETOR-ASSY 15001A 15001-1660 1
TOP-CHAMBER,MIXING 16005 16005-1056 1
SEAT-SPRING,THROTTLE VALVE 16007 16007-1120 1
NEEDLE-JET,N36X 16009A 16009-1516 1
CAP-STARTER PLUNGER 16012 16012-1055 1
SCREW-PILOT AIR 16014 16014-1054 1
PLUNGER,STARTER 16016 16016-1065 1
JET-NEEDLE,#6 16017 16017-1270 1
SCREW-THROTTLE STOP 16021 16021-1115 1
VALVE-FLOAT 16030 16030-1007 1
FLOAT 16031 16031-1056 1
HOLDER-CARBURETOR 16065 16065-1177 1
INSULATOR 16073 16073-1074 1
VALVE,VACUUM 16126A 16126-1199 1
JET-STARTER,#58 16157A 16157-1057 1 (OPTION)
JET-STARTER,#60 16157C 16157-1058 1 (OPTION)
JET-STARTER,#62 16157D 16157-1059 1 (OPTION)
BOOT,STARTER PLUNGER 49006 49006-1165 1
BOLT,SOCKET,6X25 92002 92002-1093 2
SCREW,DRAIN 92009 92009-1095 1
SCREW,5X10 92009A 92009-1365 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,PLAIN,STOP SPRING 92022A 92022-1480 1
CLAMP,FLOAT VALVE 92037 16044-007 1
CLAMP 92037A 92037-1326 1
CLAMP,TUBE 92037B 92037-1531 2
CLAMP,TUBE 92037C 92037-1871 1
PIN,FLOAT 92043 92043-1207 1
RING-O,PILOT ADJUST 92055 92055-1002 1
SCREW-PAN-WS-CROS 223 223C0416 4
SCREW-PAN-WSP-CROS 225 225C0418 4
RING-O,DRAIN SCREW 92055A 92055-1053 1
RING-O,FLOAT CHAMBER 92055B 92055-1222 1
RING-O,38MM 92055C 92055-1295 2
RING-O,STARTER PLUNGER 92055D 92055-1416 1
TUBE,3.5X6.5X330 92059 92059-111 1
TUBE,6.5X9.5X350 92059A 92059-1237 1
TUBE,6.5X11.5X150 92059B 92059-1463 1
JET-MAIN,#135 92063 92063-1014 1 (OPTION)
JET-MAIN,2ND,#125 92063A 92063-1069 1 (OPTION)
JET-MAIN,2ND,#128 92063D 92063-1074 1 (OPTION)
JET-MAIN,#130 92063E 92063-1075 1
JET-MAIN,#132 92063G 92063-1076 1 (OPTION)
JET-PILOT,#35 92064 92064-1101 1 (OPTION)
JET-PILOT,#38 92064A 92064-1119 1
JET-PILOT,#40 92064B 92064-1125 1 (OPTION)
SPRING,PILOT ADJUST SCREW 92081 92081-1002 1
SPRING,THROTTLE STOP SCREW 92081A 92081-1617 1
SPRING,PLUNGER 92081B 92081-1720 1
SPRING,VACUUM VALVE 92081C 92081-1775 1
