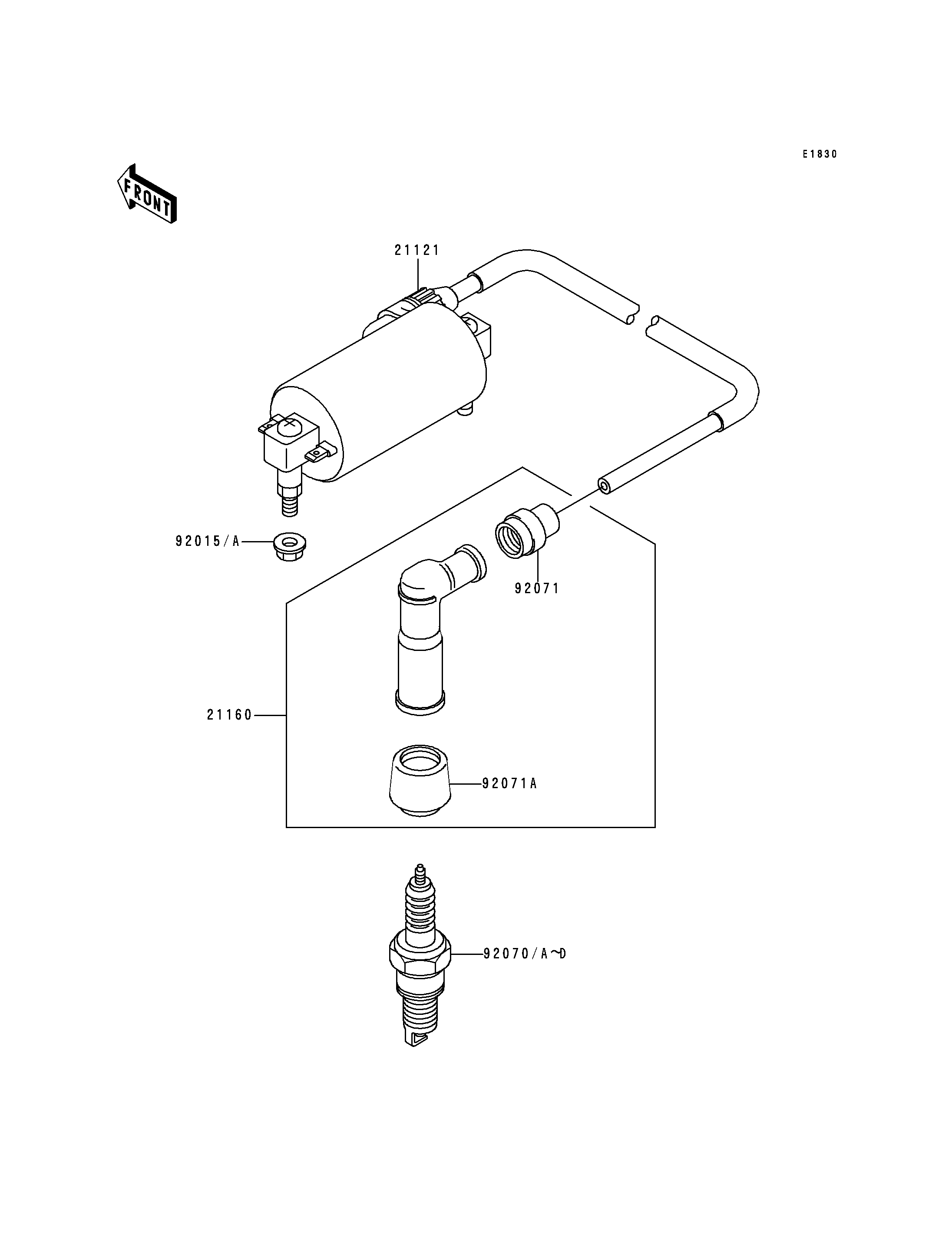

21121
21160
92015
92071
92071A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL-IGNITION 21121 21121-1049 1
CAP-ASSY-PLUG 21160 21160-1067 1
NUT,CAP,6M/M 92015 92015-1153 2
GROMMET,HIGH TENSION 92071 21131-005 1
GROMMET,PLUG CAP 92071A 92071-1135 1
PLUG-SPARK,D8EA(NGK) 92070A 92070-1011 1
PLUG-SPARK,DR8ES-L(NGK) 92070D 92070-1116 1
